Opis

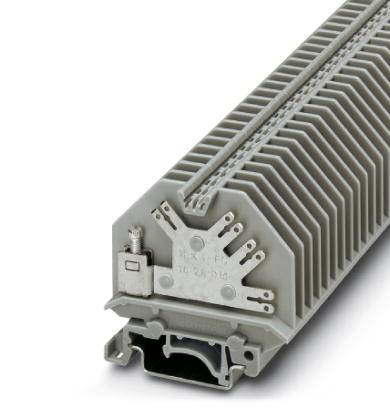

Feed-through terminal block, Connection type: Screw connection, Slip-on connection, Cross section: 0.2 mm² - 4 mm², AWG :24- 14, Width: 6.2 mm, Color: gray, Mounting: NS 35/7,5, NS 35/15, NS 32
Dobava vključuje
Prevodne serijske sponke UHK 4-FS(8-2,8-0,8) sive barve Phoenix Contact 50 kosov
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 2017237
EAN koda: 4017918052690
Registrirana blagovna znamka: Phoenix Contact
Ime proizvajalca: PHOENIX CONTACT Deutschland GmbH
Naslov proizvajalca: Flachsmarktstr. 8
Poštna številka proizvajalca: 32825
Kraj proizvajalca: Blomberg
Država proizvajalca: Germany
Telefon proizvajalca: +4905235300
Elektronski kontakt proizvajalca: https://www.phoenixcontact.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta izdelka |
vrstna sponka za speljavo kabla |
|---|---|
| Priključek |
vijačni |
| Fleksibilen prerez (min.) |
0.2 mm² |
| Fleksibilni prečni prerez (maks.) |
4 mm² |
| Togi prerez (min.) |
0.2 mm² |
| Maks. prečni prerez trdnosti |
4 mm² |
| AWG min. |
24 |
| AWG (maks.) |
12 |
| Širina sponke |
6.2 mm |
| Število vrst |
1 |
| Število pinov |
2 |
| Barva |
siva |
| Nazivni tok |
32 A |
| Nazivni tok - zaokrožen |
32 A |
| Nazivna napetost |
800 V |
| Dolžina odstranjene izolacije (maks.) |
9 mm |
| Proizv. št. delov |
2017237 |
| Vsebina |
50 kos |
| Industrijsko pakiranje |
da |
| Vrsta |
UHK 4-FS(8-2,8-0,8) |
| Mere |
(D x Š x V) 54 x 6.2 x 51.5 mm |
| Širina |
6.2 mm |
| Višina |
51.5 mm |
| Dolžina |
54 mm |
| Stopnja onesnaženja |
3 |
| Razred vnetljivosti |
V2 |
| Izolacijski material |
PA |
| Izolacija |
Poliamid |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Colour |
Grey |
| Width |
6.2 |
| Height |
54 mm |
| Depth |
51.5 mm |
| Rated voltage |
800 V |
| Operating temperature |
-60-105 °C |
| Inflammability class of insulation material according to UL94 |
V2 |
| Closing plate required |
TRUE |
| Type of electrical connection 1 |
Screw connection |
| Type of electrical connection 2 |
Screw connection |
| Number of levels |
1 |
| Number of clamp positions per level |
2 |
| Internally connected stages |
FALSE |
| Connectable conductor cross section solid-core |
0.2-4 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.25-0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.2-4 mm² |
| Connectable conductor cross section multi-wired |
0.2-1.5 mm² |
| Material insulation body |
Other |
| Rated current In |
32 A |
| UKCA |
da |
