Opis

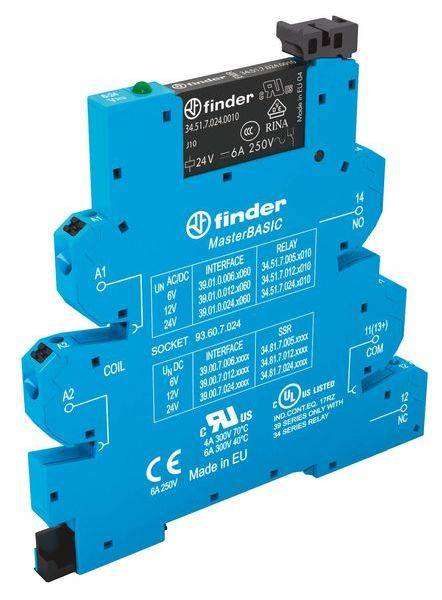

Ozki sklopni rele za DIN trak z EMR izhodom. Univerzalni kot sklopni rele na vhodu v PLC ali na izhodu PLC za krmiljenje pogonov.
Besedilo je strojno prevedeno.
Dobava vključuje

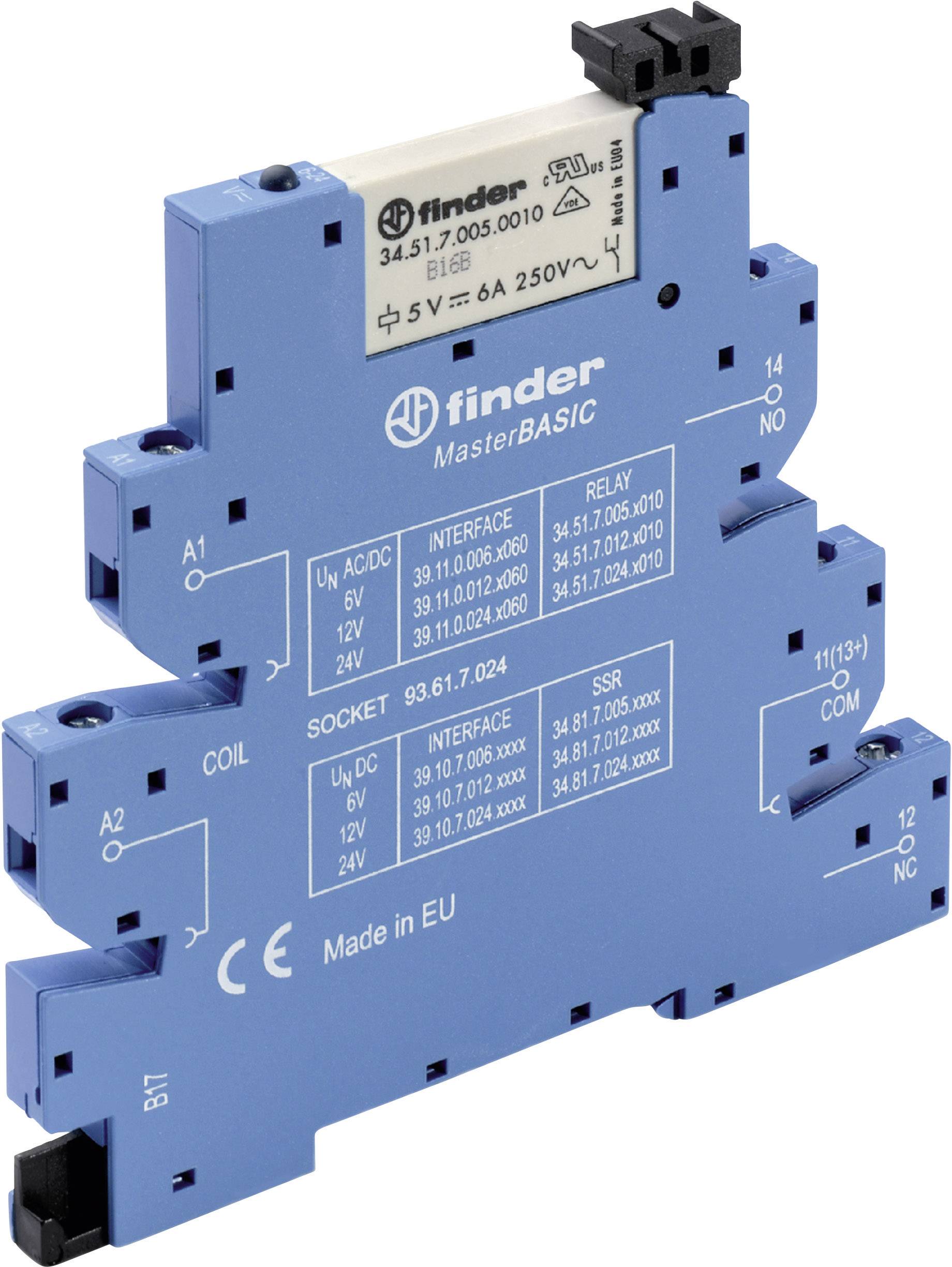

Sklopni rele MasterBASIC z EMR - rele izhodom serija 39.11 Finder 39.11.0.012.0060 1 izmenjevalnik 6 A 1 kos
Namigi
Odobritve: cULus, IMQ, ATEX.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 39.11.0.012.0060
EAN koda: 8012823353609
Registrirana blagovna znamka: Finder
Ime proizvajalca: FINDER GmbH
Naslov proizvajalca: Hans-Böckler-Str. 44
Poštna številka proizvajalca: 65468
Kraj proizvajalca: Trebur
Država proizvajalca: Germany
Telefon proizvajalca: +490614720330
Elektronski kontakt proizvajalca: https://www.findernet.com/de
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta izdelka |
povezovalni rele |
|---|---|
| Vrsta |
39.11.0.012.0060 |
| Priključek |
vijačna sponka |
| Barva |
večbarvna |
| Odzivna napetost (min.) |
9.6 V/DC |
| Delovna napetost (maks.) |
13.2 V/DC |
| Kontakt |
1 menjalo |
| Nazivna napetost |
12 V/DC |
| Preklopna napetost (maks.) |
400 V/AC |
| Preklopni tok maks. |
6 A |
| Vrsta zaščite |
IP20 |
| Vsebina |
1 kos |
| Nominal current |
6 A |

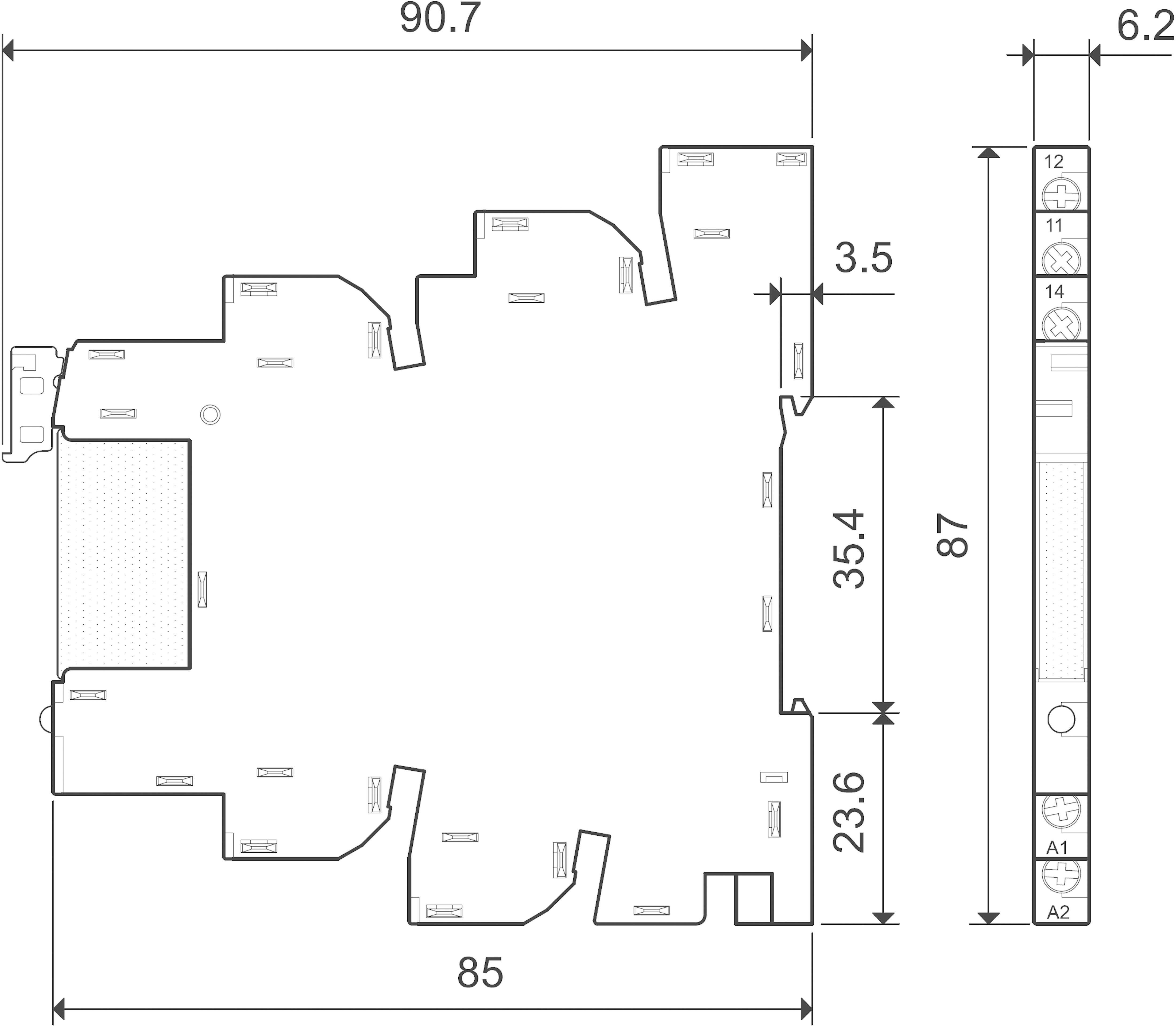

| Width |
6.2 |
| Height |
90.7 mm |
| Depth |
87 mm |
| Max. starting current |
10 A |
| With detachable clamps |
FALSE |
| Drive, polarization |
Polarity free |
| Drive, switching attitude |
Mono stable |
| With forced-guided contacts |
FALSE |
| Type of switch contact |
Single contact |
| Complete with socket |
TRUE |
| Type of electric connection |
Screw connection |
| Rated control supply voltage AC 50 Hz |
12-12 V |
| Rated control supply voltage AC 60 Hz |
12-12 V |
| Rated control supply voltage DC |
12-12 V |
| Voltage type (operating voltage) |
AC/DC |
| Degree of protection (IP) |
IP20 |
| With LED indication |
TRUE |
| Operating voltage AC 50 Hz |
9.6-13.2 V |
| Operating voltage AC 60 Hz |
9.6-13.2 V |
| Operating voltage DC |
9.6-13.2 V |
| Voltage type for actuating |
AC/DC |
| Number of contacts as normally closed contact |
0 |
| Number of contacts as normally open contact |
0 |
| Number of contacts as change-over contact |
1 |
| UKCA |
da |
