Opis

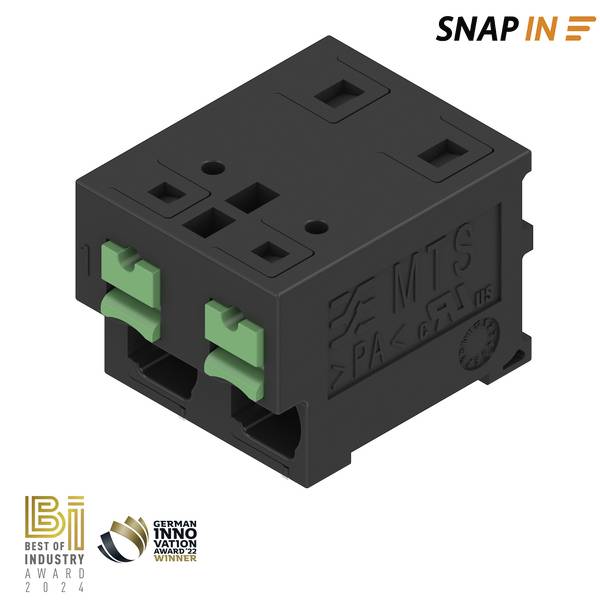

Priključni blok za tiskano vezje (tiskalni terminal, priključni blok za tiskano vezje) za enostaven in varen prenos podatkov neposredno na tiskano vezje.
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3124610000
EAN koda: 4099987278751
Registrirana blagovna znamka: Weidmüller
Ime proizvajalca: Weidmüller GmbH & Co. KG
Naslov proizvajalca: Klingenbergstr. 26
Poštna številka proizvajalca: 32758
Kraj proizvajalca: Detmold
Država proizvajalca: Germany
Telefon proizvajalca: +495231140
Elektronski kontakt proizvajalca: https://www.weidmueller.com/int
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta embalaže |
Tube |
|---|---|
| Vrsta |
MTS 7S/02 H T4 B T |
| Vrsta izdelka |
sponka za tiskano vezje |
| RM |
7.5 mm |
| Število pinov |
2 |
| Priključek |
THR |
| Nazivni tok |
32 A |
| Fleksibilen prerez (min.) |
0.5 mm² |
| Nazivni tok - zaokrožen |
32 A |
| Togi prerez (min.) |
0.5 mm² |
| Fleksibilni prečni prerez (maks.) |
4 mm² |
| Maks. prečni prerez trdnosti |
2.5 mm² |
| Smerni vtikač |
horizontalno na tiskano vezje |
| Material ohišja |
poliamid |
| Barva |
črna |
| Proizv. št. delov |
3124610000 |
| Vsebina |
35 kos |
| Nazivna napetost |
1000 V |
| Vrsta |
MTS 7S/02 H T4 BT |
| Height |
16.7 mm |
| Housing colour |
Black |
| Rated voltage |
1000 V |
| Operating temperature |
-50-120 °C |
| Type of fastening |
Solder |
| Rated surge voltage |
6 kV |
| RAL-number (similar) housing |
9011 |
| Connection type conductor |
Spring clamp connection |
| Connection type PCB |
THR connection |
| Length pin |
3.5 mm |
| Modular spacing connections |
7.5 mm |
| Type of banding |
Other |
| Connectable conductor cross section solid-core |
0.5-2.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.5-2.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.5-4 mm² |
| Connectable conductor cross section multi-wired |
0.5-4 mm² |
| Degree of protection (IP), mounted |
IP20 |
| Material insulation body |
Polyamide (PA) |
| Angle PCB/conductor connection |
0°/180° (horizontal) |
| Type of PCB fastening |
Other |
| Rated current In |
32 A |
| Number of electrical connections |
2 |
| Inflammability class of insulation material according to UL 94 |
V0 |
