Opis
Modul za prenos podatkov.
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3157260000
EAN koda: 4099987663489
Registrirana blagovna znamka: Weidmüller
Ime proizvajalca: Weidmüller GmbH & Co. KG
Naslov proizvajalca: Klingenbergstr. 26
Poštna številka proizvajalca: 32758
Kraj proizvajalca: Detmold
Država proizvajalca: Germany
Telefon proizvajalca: +495231140
Elektronski kontakt proizvajalca: https://www.weidmueller.com/int
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti

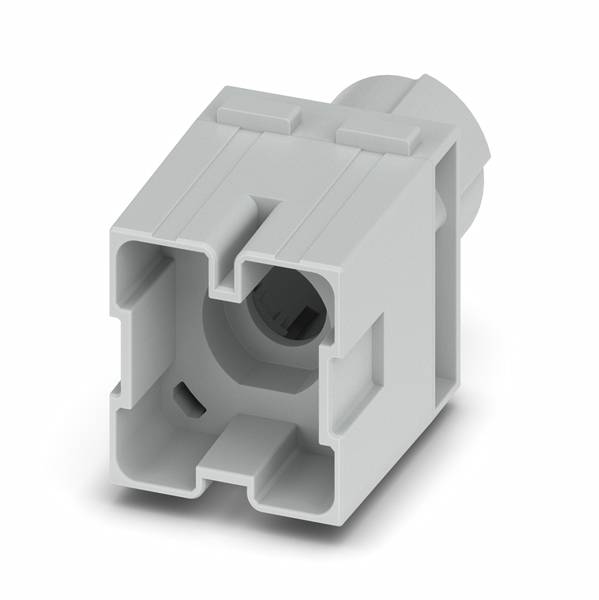

Tehnični podatki 3748381 Weidmüller 3157260000 modul RockStar® HDC MHP 1 stiskalni 1 kos
Tehnični podatki
| Vrsta izdelka |
modul |
|---|---|
| Serija |
RockStar® HDC MHP |
| Priključek |
stiskalni |
| Skupno število polov |
1 |
| Prečni presek prevodnika (maks.) |
70 mm² |
| Število pinov |
1 |
| Prečni prerez prevodnika (min.) |
25 mm² |
| Vsebina |
1 kos |
| Width |
34 mm |
| Height |
60.3 mm |
| Depth |
34 mm |
| Rated voltage |
1000 V |
| With wire protection |
FALSE |
| Number of poles |
1 |
| Contact type |
Pin |
| Ambient temperature |
-40-125 °C |
| Operating temperature |
-40-125 °C |
| Inflammability class of insulation material according to UL94 |
V0 |
| Rated surge voltage |
8 kV |
| Type of electric connection |
Crimp connection |
| Overvoltage category |
III |
| Pollution degree |
3 |
| Contact insert without contacts |
TRUE |
| Connectable conductor cross section solid-core |
25-70 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
25-70 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
25-70 mm² |
| Connectable conductor cross section multi-wired |
25-70 mm² |
| With protective conductor |
FALSE |
| Material connector insert |
Thermoplastic |
| Rated current In |
200 A |
| Material of contact insert |
Thermoplastic |
| UKCA |
ni pomembno |
