Varnost izdelkov (GPSR)
Proizvajalčeva koda: 1985849
EAN koda: 4017918929244
Registrirana blagovna znamka: Phoenix Contact
Ime proizvajalca: PHOENIX CONTACT Deutschland GmbH
Naslov proizvajalca: Flachsmarktstr. 8
Poštna številka proizvajalca: 32825
Kraj proizvajalca: Blomberg
Država proizvajalca: Germany
Telefon proizvajalca: +4905235300
Elektronski kontakt proizvajalca: https://www.phoenixcontact.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta embalaže |
Carton |
|---|---|
| Vrsta |

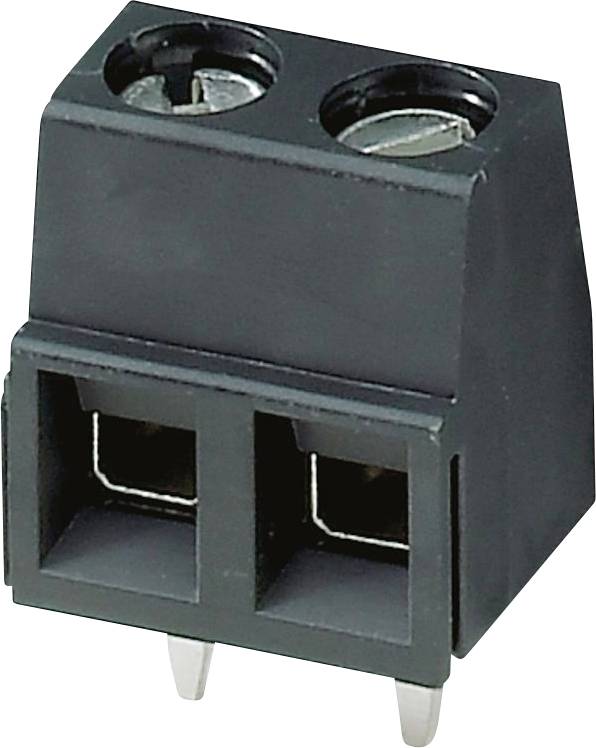

MKDSN 1,5/ 2 HT BK |
| Vrsta izdelka |
sponka za tiskano vezje |
| Značilnosti |
za Reflow procese |
| RM |
5 mm |
| Število vrst |
1 |
| Število pozicij na vrsto |
2 |
| Število pinov |
2 |
| Serija |
MKDSN |
| Priključek |
vijačna sponka |
| Nazivni tok |
13.5 A |
| Fleksibilen prerez (min.) |
0.14 mm² |
| Nazivni tok - zaokrožen |
13.5 A |
| Togi prerez (min.) |
0.14 mm² |
| Fleksibilni prečni prerez (maks.) |
1.5 mm² |
| Maks. prečni prerez trdnosti |
1.5 mm² |
| Material kontakta |
kositer |
| Barva |
črna |
| Zaščita žice |
da |
| Proizv. št. delov |
1985849 |
| Vsebina |
260 kos |
| Višina |
13.5 mm |
| Dolžina |
3.5 mm |
| Height |
13.5 mm |
| Housing colour |
Black |
| Rated voltage |
320 V |
| Operating temperature |
-40-105 °C |
| Type of fastening |
Solder |
| Inflammability class of insulation material according to UL94 |
V0 |
| Number of levels |
1 |
| Rated surge voltage |
4 kV |
| Overvoltage category |
III |
| Pollution degree |
2 |
| Connection type conductor |
Screw connection |
| Connection type PCB |
Soldering connection |
| Diameter connection pin |
1.3 mm |
| Length pin |
3.5 mm |
| Material connection surface |
Tin |
| Modular spacing connections |
5 mm |
| Type of banding |
Carton (for SMD) |
| Connectable conductor cross section solid-core |
0.14-1.5 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.25-1.5 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.14-1.5 mm² |
| Connectable conductor cross section multi-wired |
0.14-0.75 mm² |
| Material insulation body |
Other |
| Type of PCB fastening |
Connecting contact |
| Rated current In |
13.5 A |
| Number of electrical connections |
2 |
