Opis

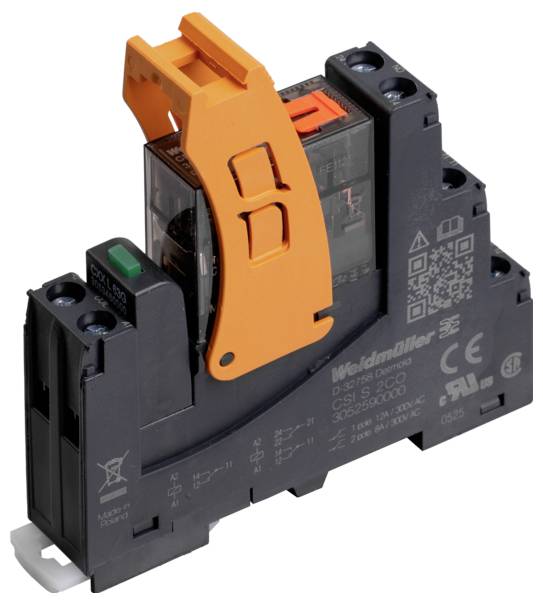

Sklop, sestavljen iz vtičnega releja in vtične vtičnice. Krmilni tokokrog in tokokrog obremenitve sta galvansko ločena.
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3137470000
EAN koda: 4099987361934
Registrirana blagovna znamka: Weidmüller
Ime proizvajalca: Weidmüller GmbH & Co. KG
Naslov proizvajalca: Klingenbergstr. 26
Poštna številka proizvajalca: 32758
Kraj proizvajalca: Detmold
Država proizvajalca: Germany
Telefon proizvajalca: +495231140
Elektronski kontakt proizvajalca: https://www.weidmueller.com/int
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta izdelka |
povezovalni rele |
|---|---|
| Vrsta |
CRIKIT S 24VAC 1CO L/PB |
| Priključek |
vijačna sponka |
| Kontakt |
1 menjalo |
| Material kontakta |
srebro, nikelj |
| Nazivna napetost |
24 V/AC |
| Preklopna napetost (maks.) |
250 V/DC |
| Preklopni tok maks. |
16 A |
| Značilnosti |
z LED |
| Vrsta zaščite |
IP20 |
| Vsebina |
10 kos |
| Nominal current |
16 A |
| Width |
15.8 mm |
| Height |
80 mm |
| Depth |
72.8 mm |
| With detachable clamps |
FALSE |
| Drive, polarization |
Polarity free |
| Drive, switching attitude |
Mono stable |
| With forced-guided contacts |
FALSE |
| Type of switch contact |
Single contact |
| Complete with socket |
TRUE |
| Type of electric connection |
Screw connection |
| Rated control supply voltage DC |
19.2-26.4 V |
| Material of contact surface |
Nickel |
| Voltage type (operating voltage) |
AC |
| Degree of protection (IP) |
IP20 |
| With LED indication |
TRUE |
| Material contact |
Silver nickel (AgNi) |
| Operating voltage AC 50 Hz |
250-250 V |
| Operating voltage AC 60 Hz |
250-250 V |
| Operating voltage DC |
250-250 V |
| Number of contacts as normally closed contact |
0 |
| Number of contacts as normally open contact |
0 |
| Number of contacts as change-over contact |
1 |
| UKCA |
ni pomembno |
