Opis

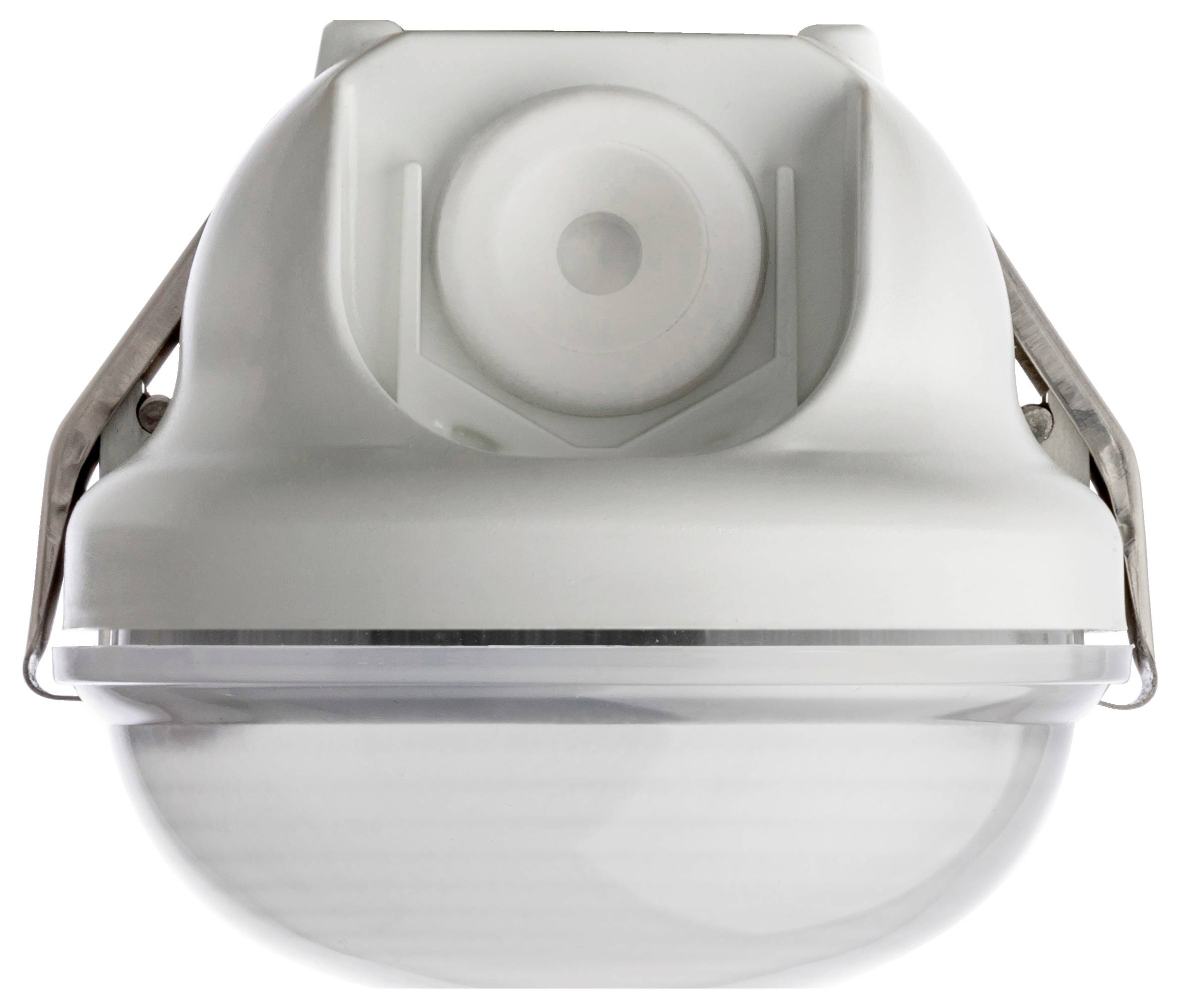

Nova generacija LUNA BL ONE s svojo inovativno zasnovo in širokim naborom funkcij postavlja nov standard za vlažne svetilke. Izdelan je iz do 98 % recikliranega materiala, zato ni le okolju prijazen, ampak tudi izjemno robusten in vzdržljiv. Ta svetilka ponuja različne funkcije, zaradi katerih je primerna za različne aplikacije. Od preprostega vklopa in izklopa do kompleksnega upravljanja prek protokola DALI je LUNA BL ONE izjemno vsestranska. Zahvaljujoč opcijskim integriranim senzorjem se osvetlitev samodejno prilagaja okoljskim pogojem, kar ne le poveča udobje, temveč tudi prihrani energijo. Večlumenska tehnologija omogoča prilagajanje intenzivnosti svetlobe po potrebi, od mehke osvetlitve ozadja do svetle delovne svetlobe. Z modernim dizajnom in visoko funkcionalnostjo je nova generacija LUNA BL ONE idealna rešitev za vlažne prostore v različnih področjih uporabe, kot so industrijski, komercialni in javni objekti.
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 5800224
EAN koda: 4018098441403
Registrirana blagovna znamka: Pracht
Ime proizvajalca: Alfred PRACHT Lichttechnik GmbH
Naslov proizvajalca: Am Seerain 3
Poštna številka proizvajalca: 35232
Kraj proizvajalca: Dautphetal-Buchenau
Država proizvajalca: Germany
Telefon proizvajalca: +49646691400
Elektronski kontakt proizvajalca: https://www.pracht.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki

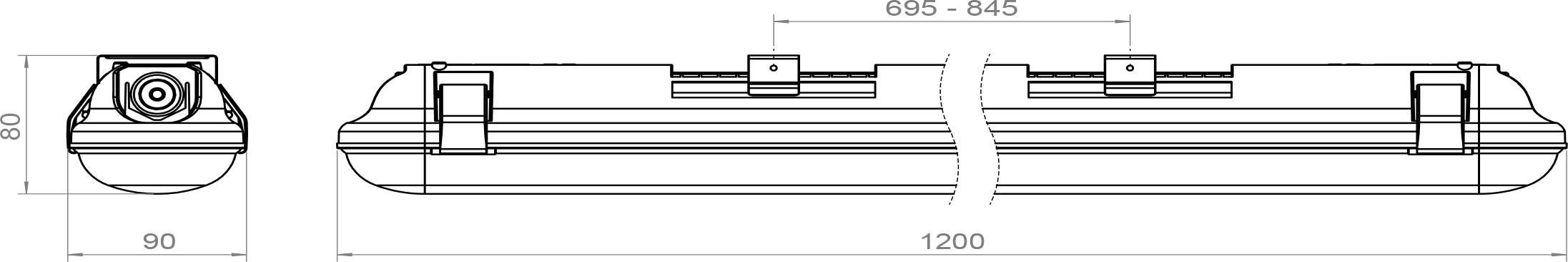

| Mere |
(D x Š x V) 1200 x 90 x 80 mm |
|---|---|
| Delovna napetost |
230 V |
| Število svetil |
1 |
| Vrsta izdelka |
LED svetilka za vlažne prostore s pokrovom |
| Širina |
90 mm |
| Vrsta |
LED |
| Višina |
80 mm |
| Podnožje |
svetlobni vir lahko zamenja usposobljen električar |
| Dolžina |
1200 mm |
| Moč |
17 W |
| Razred zaščite |
I |
| Vrsta zaščite |
IP65 |
| Barva |
bela |
| Material |
plastika |
| Razred energetske učinkovitosti |
n.rel. (EENRPS00) |
| Indeks barvne reprodukcije |
80-89 |
| Barva svetlobe |
bela |
| Vključena svetila |
da |
| Barva svetlobe |
4000 K |
| Barva svetlobe (maks.) |
4000 K |
| Barva svetlobe (min.) |
4000 K |
| Razpon svetlih barv |
4000 - 4000 K |
| Skupni svetlobni tok |
5400 lm |
| Funkcija brezžičnega polnjenja |
ne |
| Sevalni kot |
135 ° |
| Dejavniki moči |
0,9 |
| Protection class according to IEC 61140 |
I |
| Lamp holder |
Other |
| Connection type |
Push-in clamp |
| Housing colour |
White |
| Voltage type |
AC/DC |
| With movement sensor |
FALSE |
| Type of grid |
None |
| Type of control gear |
LED operating device current-controlled |
| Colour rendering index CRI |
80-89 |
| Suitable for wall mounting |
TRUE |
| With light sensor |
FALSE |
| Suitable for suspended mounting |
TRUE |
| Housing material |
Plastic |
| Lamp type |
LED exchangeable |
| Suitable for light line configuration |
FALSE |
| Suitable for emergency lighting |
TRUE |
| Light outlet |
Direct |
| Light distribution |
Symmetric |
| Material cover |
Plastic, opal |
| Impact strength |
IK08 |
| Emergency power supply integrated |
FALSE |
| Degree of protection (IP) |
IP65 |
| With light source |
TRUE |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 |
TRUE |
| Covering of the luminaire with thermally insulating material possible |
FALSE |
| Suitable for number of light sources |
1 |
| Suitable for built-in mounting |
FALSE |
| With control gear |
TRUE |
| Suitable for workplace according to EN 12464-1 |
FALSE |
| Suitable for surface mounting |
TRUE |
| Colour of light |
White |
| With air slots |
FALSE |
| Constant light output (CLO) |
FALSE |
| IFTTT support available |
FALSE |
| Type of wiring |
Ending |
| Colour consistency (McAdam ellipse) |
SDCM5 |
| Total harmonic distortion |
15.000000 |
| Photobiological safety according to EN 62471 |
RG1 |
| Degree of protection (NEMA) |
Other |
| Filament test according to IEC 60695-2-11 |
850 °C - 30 s |
| Dimming 0-10 V |
FALSE |
| Dimming 1-10 V |
FALSE |
| Dimming DALI |
FALSE |
| Dimming DMX |
FALSE |
| Dimming potentiometer (integrated) |
FALSE |
| Dimming LineSwitch |
FALSE |
| Dimming manufacturer's proprietary system |
FALSE |
| Dimming mains voltage modulation |
FALSE |
| Dimming phase cut-off (trailing edge) |
FALSE |
| Dimming phase cut-on (leading edge) |
FALSE |
| Dimming programmable |
FALSE |
| Dimming RF |
FALSE |
| Dimming Sine Wave Reduction |
FALSE |
| Dimming Touch and Dim |
FALSE |
| Dimming Zigbee |
FALSE |
| Dimming with push-button |
FALSE |
| No dim function |
TRUE |
| Light distributor |
Diffuser lens/optic/panel |
| Dimming DSI |
FALSE |
| Unified Glare Ratio (UGR) |
27 |
| Operation by Bluetooth |
FALSE |
| Compatible with Apple HomeKit |
FALSE |
| Compatible with Google Assistant |
FALSE |
| Compatible with Amazon Alexa |
FALSE |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) |
66 |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) |
39 |
| Dimming DALI-2 |
FALSE |
| Flickering value Pst LM |
1 |
| Stroboscope effect value SVM |
0.40 |
| Colour of light adjustable |
No |
| Luminous flux adjustable |
Positions |
| Beam angle adjustable |
No |
| Exchangeable control gear |
TRUE |
| Compatible with Casambi |
FALSE |
| Energy efficiency class of the light source according to EU regulation 2019/2015 |
C |
| Suitable for ceiling mounting |
TRUE |
| Surface protection housing |
Untreated |
| Power factor |
0.9 |
| Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C) |
TRUE |
| UKCA |
da |
