Opis

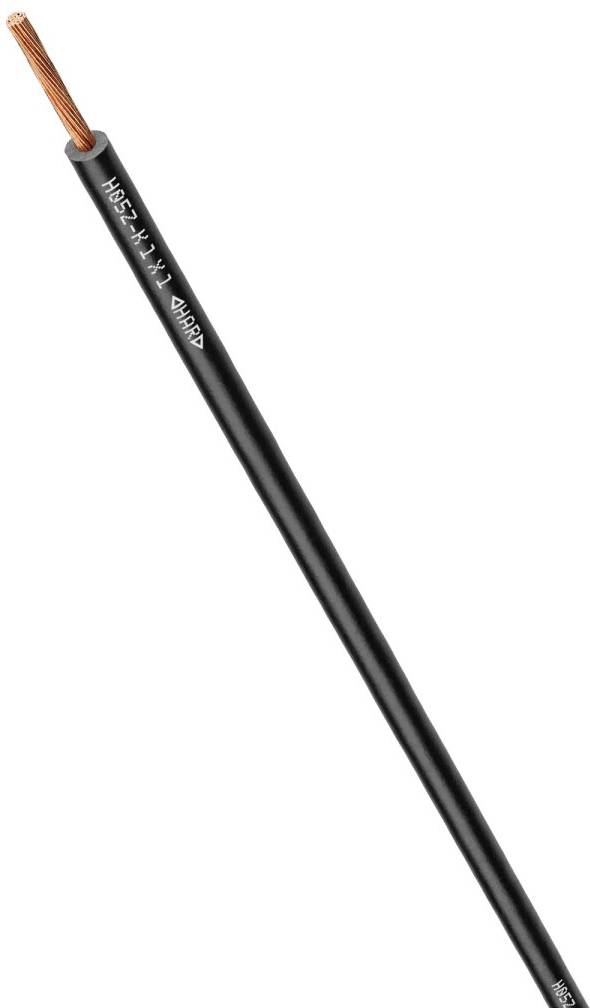

H05Z-K 90°C 1X0,75 BN enožilni; 1X0,75; rjava; umivalnik; U 0 /U: 300/500 V; Mešanica brez halogenov; HAR certificiran; fiksna instalacija
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 4725032S/250
EAN koda: 4064727362359
Registrirana blagovna znamka: LAPP
Ime proizvajalca: Lapp U.I. GmbH
Naslov proizvajalca: Schulze-Delitzsch-Str. 25
Poštna številka proizvajalca: 70565
Kraj proizvajalca: Stuttgart
Država proizvajalca: Germany
Telefon proizvajalca: +49711783801
Elektronski kontakt proizvajalca: http://www.lappkabel.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki 3362261 LAPP 4725032S/250 enojna žica 1 x 0.75 mm² 250 m
Tehnični podatki 3362261 LAPP 4725032S/250 enojna žica 1 x 0.75 mm² 250 m
Navodila za uporabo in varnost 3362261 LAPP 4725032S/250 enojna žica 1 x 0.75 mm² 250 m
Navodila za uporabo in varnost 3362261 LAPP 4725032S/250 enojna žica 1 x 0.75 mm² 250 m
Navodila za uporabo in varnost 3362261 LAPP 4725032S/250 enojna žica 1 x 0.75 mm² 250 m
Navodila za uporabo in varnost 3362261 LAPP 4725032S/250 enojna žica 1 x 0.75 mm² 250 m
Navodila za uporabo in varnost 3362261 LAPP 4725032S/250 enojna žica 1 x 0.75 mm² 250 m
Navodila za uporabo in varnost 3362261 LAPP 4725032S/250 enojna žica 1 x 0.75 mm² 250 m
Navodila za uporabo in varnost 3362261 LAPP 4725032S/250 enojna žica 1 x 0.75 mm² 250 m
Navodila za uporabo in varnost 3362261 LAPP 4725032S/250 enojna žica 1 x 0.75 mm² 250 m
Navodila za uporabo in varnost 3362261 LAPP 4725032S/250 enojna žica 1 x 0.75 mm² 250 m
Navodila za uporabo in varnost 3362261 LAPP 4725032S/250 enojna žica 1 x 0.75 mm² 250 m
Navodila za uporabo in varnost 3362261 LAPP 4725032S/250 enojna žica 1 x 0.75 mm² 250 m
Navodila za uporabo in varnost 3362261 LAPP 4725032S/250 enojna žica 1 x 0.75 mm² 250 m
Navodila za uporabo in varnost 3362261 LAPP 4725032S/250 enojna žica 1 x 0.75 mm² 250 m
Tehnični podatki
| Vrsta izdelka |
enojna žica |
|---|---|
| Število žic |
1 x |
| Vsebina |
250 m |
| Prečni prerez (na jedro) |
0.75 mm² |
| Nazivna napetost |
500 V |
| Proizv. št. delov |
4725032S/250 |
| Nazivna napetost U0 |
300 V |
| Presek |
1 x 0.75 mm² |
| Vrsta |
H05Z-K 90°C 1X0,75 BN |
| Nominal cross section conductor |
0.75 mm² |
| Material core insulation |
Other |
| Flame retardant |
According to IEC/EN 60332-1-2 |
| Nominal voltage U |
500 V |
| Conductor material |
Copper |
| Conductor category |
Class 5 = flexible |
| Permitted cable outer temperature after assembling without vibration |
-40-90 °C |
| Core colour |
Brown |
| Nominal voltage U0 |
300 V |
| Screen |
FALSE |
| Number of cores |
1 |
| Low smoke (according to EN 61034-2) |
TRUE |
| Halogen free according to EN 60754-1/2 |
FALSE |
| Conductor surface |
Bare |
| Reaction-to-fire according to EN 13501-6: Class |
Eca |
| Min. permitted bending radius, stationary application/permanent installation |
11.2 mm |
| Specification core insulation |
Other |
| Cable geometry |
Round |
| Identification/coding colour core |
Brown |
| Core identification according to HD 308 S2 |
FALSE |
| Circuit integrity according to BS 6387 CWZ |
FALSE |
| Circuit integrity according to EN 50200 annex E |
FALSE |
| Circuit integrity according to BS 8434-2 |
FALSE |
| Circuit integrity according to BS 8491 |
No |
| Circuit integrity according to IEC 60331-21 |
FALSE |
| Flame retardant according to EN 60332-1-2 |
TRUE |
| Flame retardant according to EN 60332-3-21 (Cat A F/R) |
FALSE |
| Flame retardant according to EN 60332-3-22 (Cat A) |
FALSE |
| Flame retardant according to EN 60332-3-23 (Cat B) |
FALSE |
| Flame retardant according to EN 60332-3-24 (Cat C) |
FALSE |
| Flame retardant according to EN 60332-3-25 (Cat D) |
FALSE |
| Halogen free according to EN 60754-1 |
FALSE |
| Halogen free according to EN 60754-2 |
FALSE |
| Halogen free according to EN 60754-3 |
FALSE |
