Opis

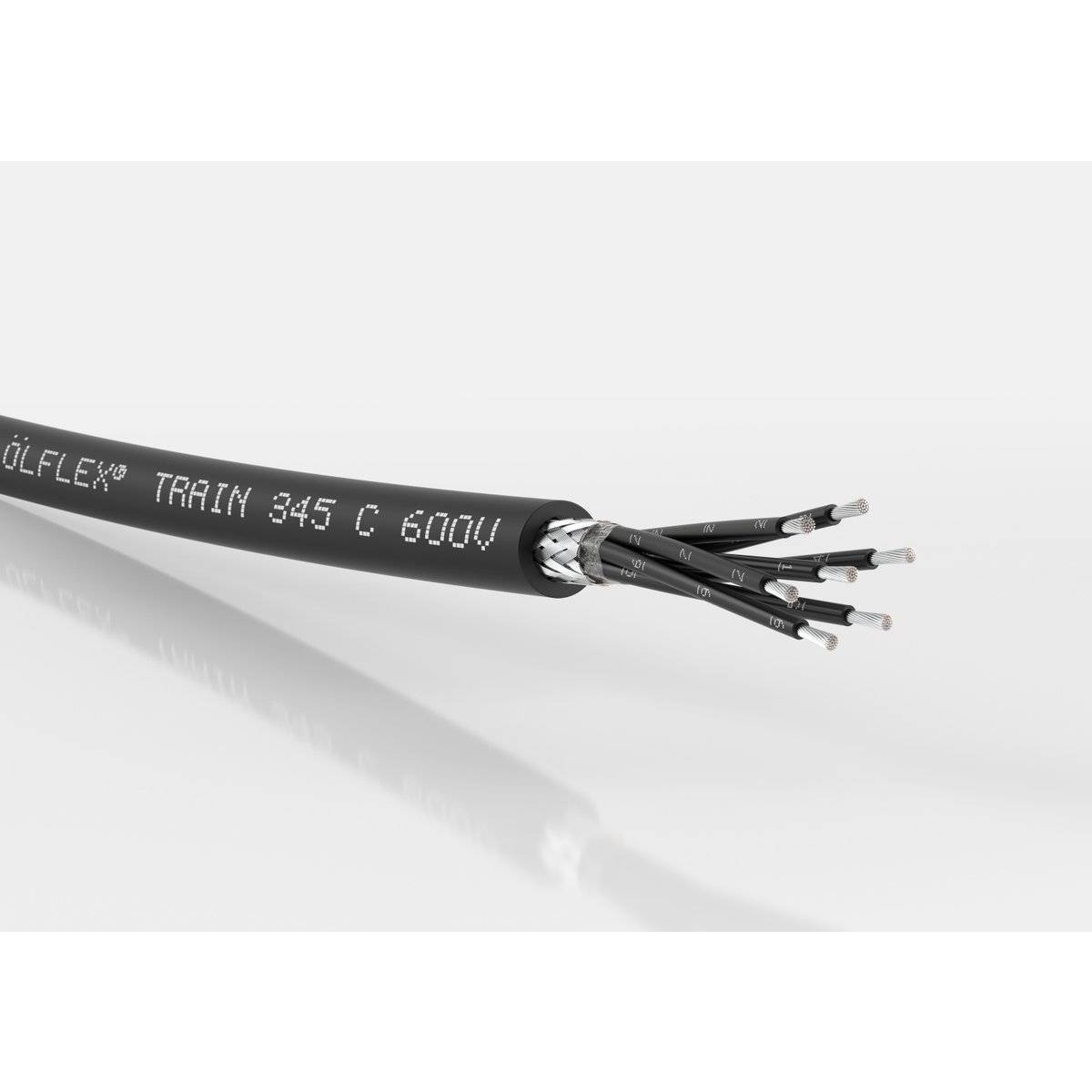

ÖLFLEX® TRAIN 345 C 600V 2X10 železniški kabel; 2X10; EN 50264-3-2; Tip MM S; U 0 /U: 0,6/1 kV; -45 - 120°C; zamrežena polimerna spojina z elektronskim žarkom; Zaščiten
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 15345012/100
EAN koda: 4044777254941
Registrirana blagovna znamka: LAPP
Ime proizvajalca: Lapp U.I. GmbH
Naslov proizvajalca: Schulze-Delitzsch-Str. 25
Poštna številka proizvajalca: 70565
Kraj proizvajalca: Stuttgart
Država proizvajalca: Germany
Telefon proizvajalca: +49711783801
Elektronski kontakt proizvajalca: http://www.lappkabel.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki 3348989 LAPP 15345012/100 železniški kabel MM S 2 x 10 mm² + 2 x 10 mm² 100 m
Tehnični podatki 3348989 LAPP 15345012/100 železniški kabel MM S 2 x 10 mm² + 2 x 10 mm² 100 m
Tehnični podatki
| Vrsta izdelka |
železniški kabel |
|---|---|
| Vrsta kabla |
MM S |
| Število žic |
2 x |
| Prečni prerez (na jedro) |
10 mm² |
| Število žic (2 del) |
2 x |
| Prečni presek (na jedro) (2 del) |
10 mm² |
| Presek |
2 x 10 mm² + 2 x 10 mm² |
| Značilnosti kabla |
ploščata izvedba |
| Zunanji premer |
14.2 mm |
| Vsebina |
100 m |
| Nazivna napetost |
1000 V |
| Nazivna napetost U0 |
600 V |
| Proizv. št. delov |
15345012/100 |
| Razpon temperature, fiksna instalacija (min.) |
-45 °C |
| Razpon temperature, fiksna namestitev (maks.) |
120 °C |
| Vrsta |
ÖLFLEX® TRAIN 345 C 600V 2X10 |
| Nominal cross section conductor |
10 mm² |
| Material core insulation |
Other |
| Core identification |
Numbers |
| Nominal voltage U |
1 kV |
| Colour outer sheath |
Black |
| Conductor material |
Copper |
| Material outer sheath |
Other |
| Conductor category |
Class 5 = flexible |
| Permitted cable outer temperature after assembling without vibration |
-45-120 °C |
| Nominal voltage U0 |
0.6 kV |
| Screen |
TRUE |
| Number of cores |
2 |
| Halogen free according to EN IEC 60754-2 |
FALSE |
| Low smoke according to EN IEC 61034-2 |
TRUE |
| Outer diameter approximate |
14.2 mm |
| With protective conductor |
FALSE |
| Low smoke (according to EN 61034-2) |
TRUE |
| Conductor surface |
Tinned |
| Min. permitted bending radius, stationary application/permanent installation |
85.2 mm |
| Specification core insulation |
Other |
| Specification material outer sheath |
Other |
| Cable geometry |
Round |
| Core identification according to HD 308 S2 |
FALSE |
| Circuit integrity according to BS 6387 CWZ |
FALSE |
| Circuit integrity according to EN 50200 annex E |
FALSE |
| Circuit integrity according to BS 8434-2 |
FALSE |
| Circuit integrity according to BS 8491 |
No |
| Circuit integrity according to IEC 60331-21 |
FALSE |
| Flame retardant according to EN 60332-1-2 |
TRUE |
| Flame retardant according to EN 60332-3-21 (Cat A F/R) |
FALSE |
| Flame retardant according to EN 60332-3-22 (Cat A) |
FALSE |
| Flame retardant according to EN 60332-3-23 (Cat B) |
FALSE |
| Flame retardant according to EN 60332-3-24 (Cat C) |
TRUE |
| Flame retardant according to EN 60332-3-25 (Cat D) |
FALSE |
| Halogen free according to EN 60754-1 |
TRUE |
| Halogen free according to EN 60754-2 |
FALSE |
| Halogen free according to EN 60754-3 |
FALSE |
