Opis

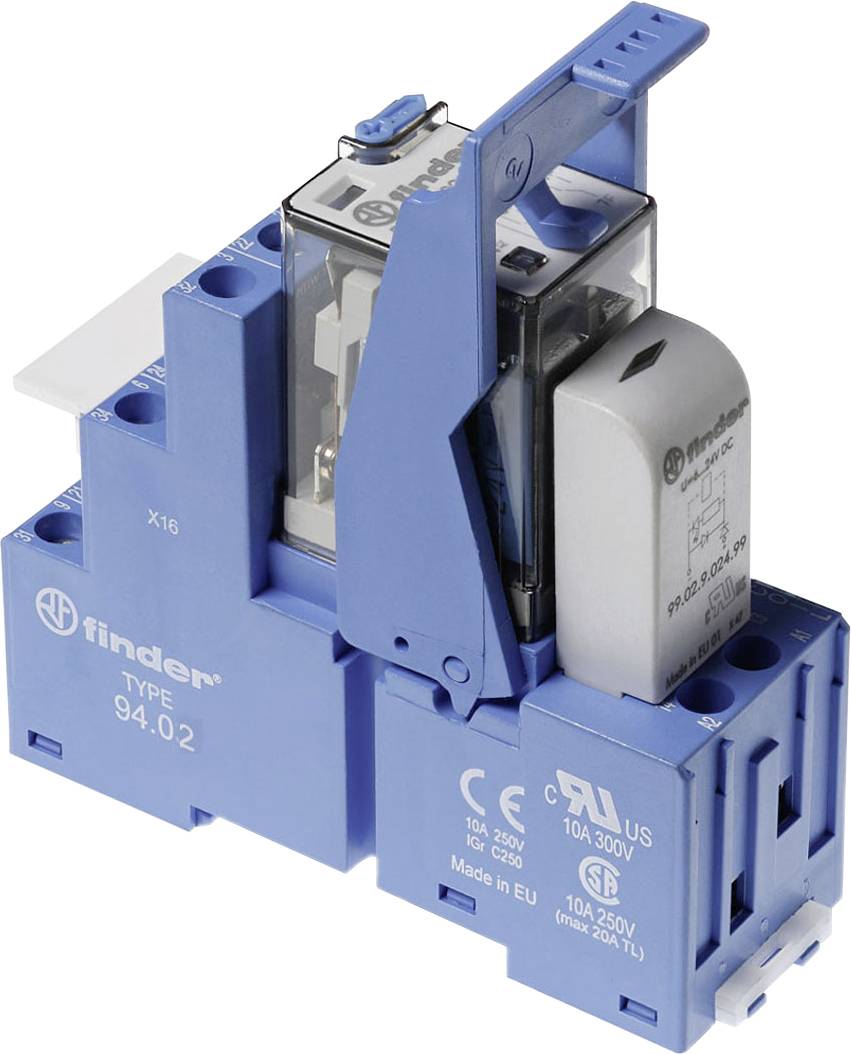

Spojni rele za DIN letev z vijačnimi priključki, 2 preklopna kontakta 10 A / 250 V AC, napetost tuljave 24 V DC, kontaktni material AgNi trdo pozlačen, z integrirano LED in zaščito pred motnjami EMC
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 58.32.9.024.5050
EAN koda: 8012823362458
Registrirana blagovna znamka: Finder
Ime proizvajalca: FINDER GmbH
Naslov proizvajalca: Hans-Böckler-Str. 44
Poštna številka proizvajalca: 65468
Kraj proizvajalca: Trebur
Država proizvajalca: Germany
Telefon proizvajalca: +490614720330
Elektronski kontakt proizvajalca: https://www.findernet.com/de
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta izdelka |
povezovalni rele |
|---|---|
| Vrsta |
58.32.9.024.5050 |
| Priključek |
vijačna sponka |
| Delovna napetost (maks.) |
24 V/DC |
| Kontakt |
2 menjalo |
| Material kontakta |
AgNi trdno pozlačen |
| Nazivna napetost |
24 V/DC |
| Preklopna napetost (maks.) |
250 V/AC |
| Preklopni tok maks. |
10 A |
| Maks. preklopna moč |
2500 VA |
| Značilnosti |
z LED |
| Vrsta zaščite |
IP20 |
| Globina |
86.9 mm |
| Širina |
27 mm |
| Višina |
78.4 mm |
| Mere |
(Š x V x G) 27 x 78.4 x 86.9 mm |
| Vsebina |
1 kos |
| Skladnost z RoHS |
Ja |
| Nominal current |
10 A |
| Width |
27 |
| Height |
83 mm |
| Depth |
76 mm |
| Max. starting current |
20 A |
| With detachable clamps |
FALSE |
| Drive, polarization |
Polarized |
| Drive, switching attitude |
Mono stable |
| With forced-guided contacts |
FALSE |
| Type of switch contact |
Single contact |
| Complete with socket |
TRUE |
| Type of electric connection |
Screw connection |
| Rated control supply voltage DC |
24-24 V |
| Material of contact surface |
Gold |
| Voltage type (operating voltage) |
DC |
| Degree of protection (IP) |
IP20 |
| With LED indication |
TRUE |
| Operating voltage DC |
19.2-26.4 V |
| Voltage type for actuating |
DC |
| Number of contacts as normally closed contact |
0 |
| Number of contacts as normally open contact |
0 |
| Number of contacts as change-over contact |
2 |
