Opis

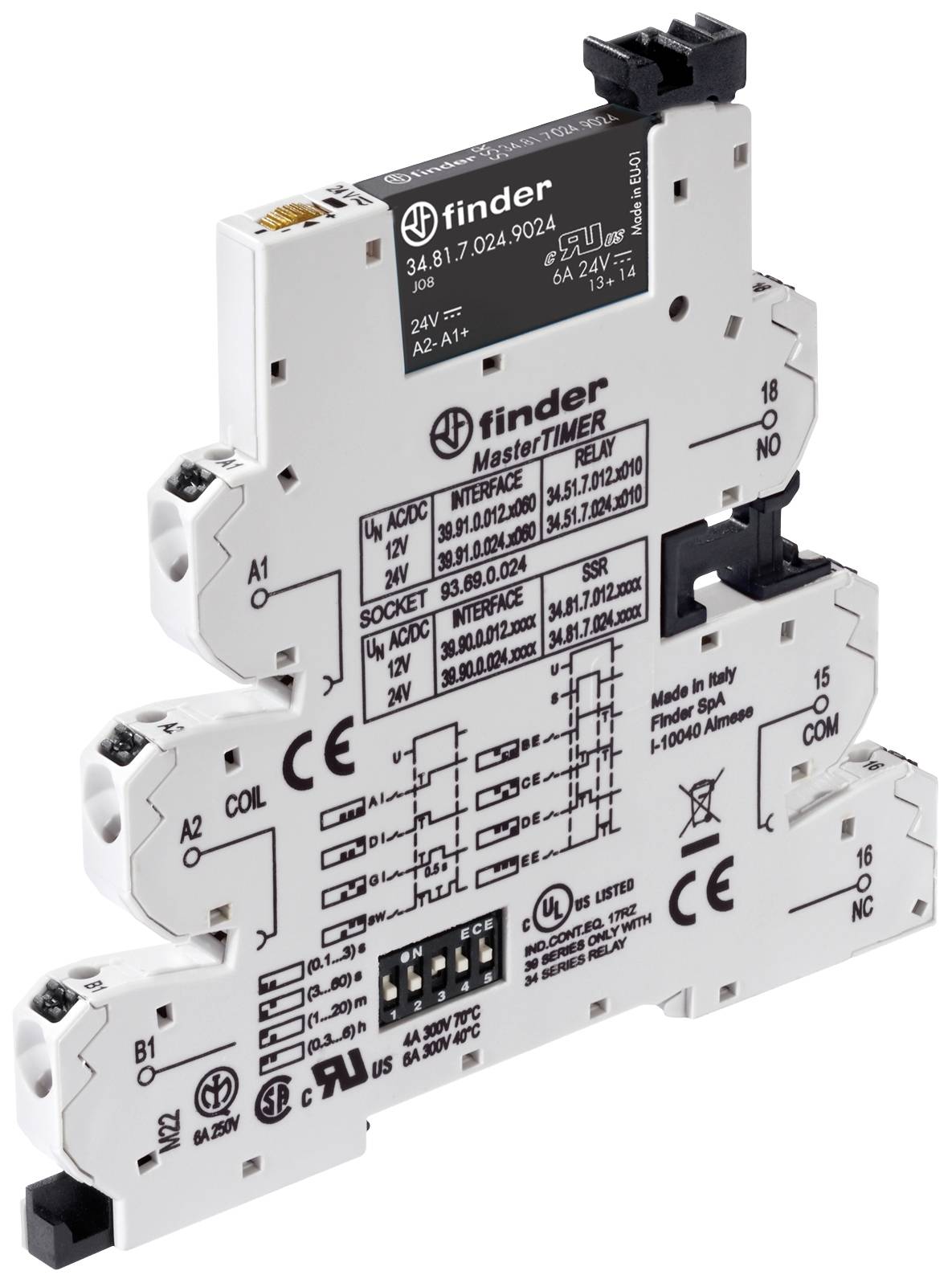

MasterTIMER ozki časovni rele za DIN letev, z vijačnimi spoji, modularna zasnova, SSR kontakti 1 kontakt za 6 A 24 V DC, 8 časovnih funkcij: zakasnitev odziva, vklop brisalca, generator impulzov 0,5 s, simetrični utripajoči zagon impulza, izklop -zakasnitev preko startnega kontakta, zakasnitev odziva na izklop preko startnega kontakta, vklop brisalca preko startnega kontakta, izklop brisalca preko odpirajočega startnega kontakta, 4 časovni razponi do 6 ur, LED zaslon, sponke A1 ali A2 in 15+ lahko premostiti, izhodni modul varovalk tip 093.63 za 5 x 20 mm fine varovalke se lahko uporabi namesto slepega vtikača, napetost tuljave 24 V AC/DC.
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 399000249024-10
EAN koda: 2050010680585
Registrirana blagovna znamka: Finder
Ime proizvajalca: FINDER GmbH
Naslov proizvajalca: Hans-Böckler-Str. 44
Poštna številka proizvajalca: 65468
Kraj proizvajalca: Trebur
Država proizvajalca: Germany
Telefon proizvajalca: +490614720330
Elektronski kontakt proizvajalca: https://www.findernet.com/de
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta embalaže |
Piece |
|---|---|
| Vrsta izdelka |
povezovalni rele |
| Vrsta |
39.90.0.024.9024 |
| Priključek |
vijačna sponka |
| Delovna napetost (maks.) |
24 V/DC |
| Kontakt |
1 menjalo |
| Nazivna napetost |
24 V DC/AC |
| Preklopna napetost (maks.) |
24 V DC/AC |
| Preklopni tok maks. |
6 A |
| Globina |
90.7 mm |
| Širina |
6.2 mm |
| Višina |
94.3 mm |
| Mere |
(Š x V x G) 6.2 x 94.3 x 90.7 mm |
| Vsebina |
1 kos |
| Skladnost z RoHS |
Ja |
| Nominal current |
6 A |
| Width |
6.2 mm |
| Height |
94.3 mm |
| Depth |
90.7 mm |
| Suitable for front mounting |
FALSE |
| With plug-in socket |
TRUE |
| Remote operation possible |
FALSE |
| Suitable as remote control |
FALSE |
| Function flashing, starting with pause, fixed time |
FALSE |
| Function flashing, starting with pulse, fixed time |
TRUE |
| Clock function, starting with pause, variable |
FALSE |
| Clock function, starting with pulse, variable |
FALSE |
| With semiconductor output |
TRUE |
| Function delay-on energization |
TRUE |
| Function floating contact on energization |
TRUE |
| Function star-delta |
FALSE |
| Time range |
0.1-21600 s |
| Function delay on de-energization |
TRUE |
| Function floating contact on de-energization |
TRUE |
| Function pulse shaping |
TRUE |
| Type of electric connection |
Plug-in connection |
| Rated control supply voltage AC 50 Hz |
24-24 V |
| Rated control supply voltage AC 60 Hz |
24-24 V |
| Rated control supply voltage DC |
24-24 V |
| Number of outputs, undelayed, normally closed contact |
0 |
| Number of outputs, undelayed, normally open contact |
0 |
| Number of outputs, undelayed, change-over contact |
0 |
| Number of outputs, delayed, normally closed contact |
0 |
| Number of outputs, delayed, normally open contact |
0 |
| Number of outputs, delayed, change-over contact |
1 |
| Pluggable on auxiliary contact block |
FALSE |
| Outputs, reversible delayed/undelayed |
FALSE |
| Suitable for DIN rail (top hat rail) mounting |
TRUE |
| Voltage type for actuating |
AC/DC |
