Opis

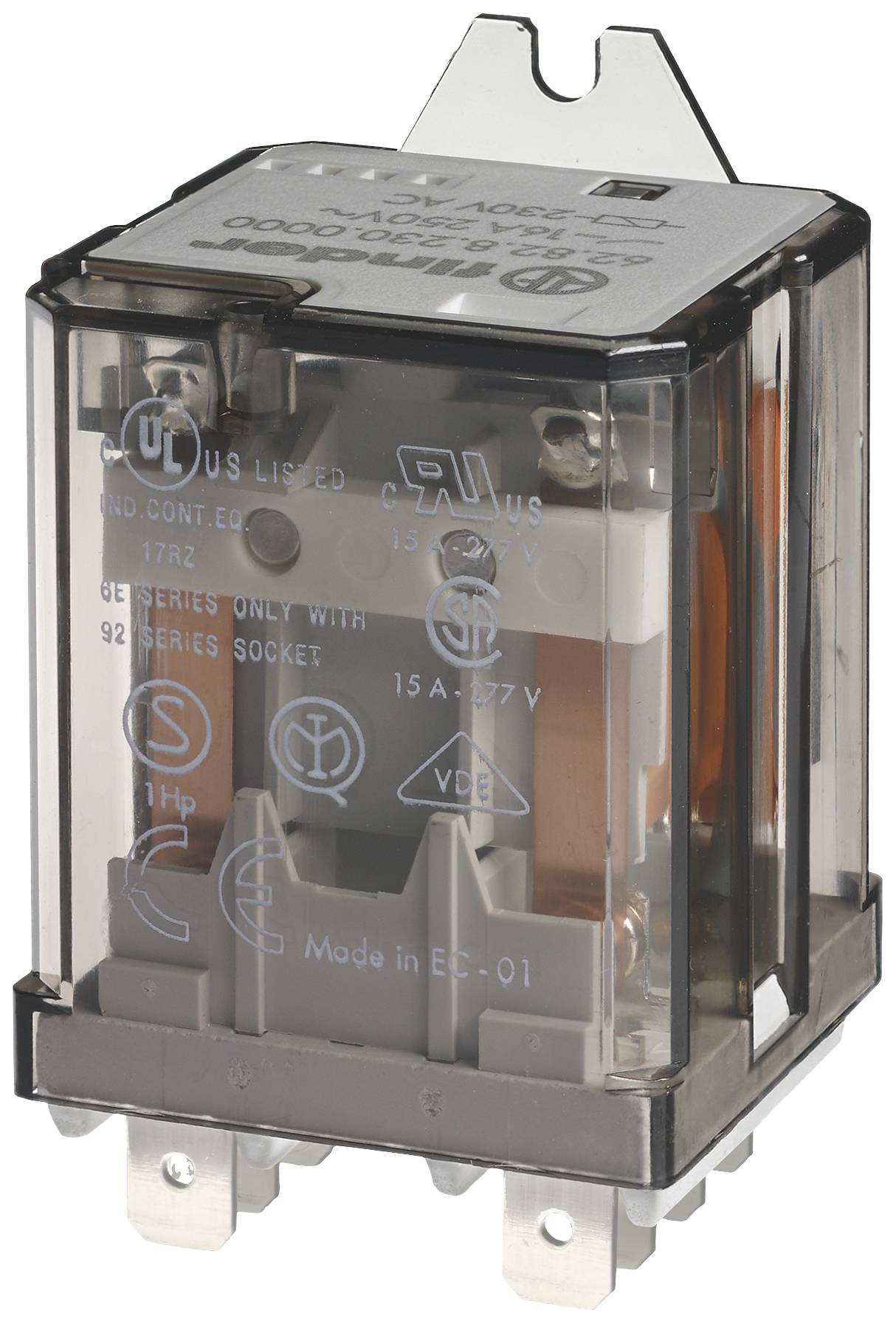

Napajalni vtični rele 2 preklopna kontakta za 16 A / 250 V AC s kontaktnim materialom Faston 250 (6,3 x 0,8 mm) AgSnO2, podatki o tuljavi 24 V AC, 2,2 VA, 74 Ohm, montažna prirobnica na hrbtni strani, tip zaščite releja: RT I
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 628280244000-10
EAN koda: 2050010678162
Registrirana blagovna znamka: Finder
Ime proizvajalca: FINDER GmbH
Naslov proizvajalca: Hans-Böckler-Str. 44
Poštna številka proizvajalca: 65468
Kraj proizvajalca: Trebur
Država proizvajalca: Germany
Telefon proizvajalca: +490614720330
Elektronski kontakt proizvajalca: https://www.findernet.com/de
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta izdelka |
vtični rele |
|---|---|
| Vrsta |
62.82.8.024.4000 |
| Nazivna napetost tuljave |
24 V/AC |
| Način nadzora |
monostabilno, 1 tuljava |
| Kontakt |
2 menjalo |
| Preklopni tok maks. |
16 A |
| Priključek |
ploščati vtič |
| Vrsta zaščite |
IP20 |
| Širina |
38.2 mm |
| Višina |
47.6 mm |
| Globina |
35.8 mm |
| Mere |
(Š x V x G) 38.2 x 47.6 x 35.8 mm |
| Vsebina |
1 kos |
| Skladnost z RoHS |
Ja |
| Nominal current |
16 A |
| Width |
38.2 mm |
| Height |
47.6 mm |
| Depth |
35.8 mm |
| With detachable clamps |
FALSE |
| Drive, polarization |
Polarity free |
| Drive, switching attitude |
Mono stable |
| With forced-guided contacts |
FALSE |
| Type of switch contact |
Single contact |
| Complete with socket |
FALSE |
| Type of electric connection |
Flat plug-in connection |
| Rated control supply voltage AC 50 Hz |
24-24 V |
| Rated control supply voltage AC 60 Hz |
24-24 V |
| Material of contact surface |
Untreated |
| Degree of protection (IP) |
IP20 |
| With LED indication |
FALSE |
| Material contact |
Other |
| Voltage type for actuating |
AC |
| Number of contacts as normally closed contact |
0 |
| Number of contacts as normally open contact |
0 |
| Number of contacts as change-over contact |
2 |
| Material of contact insert |
Thermoplastic |
