Opis

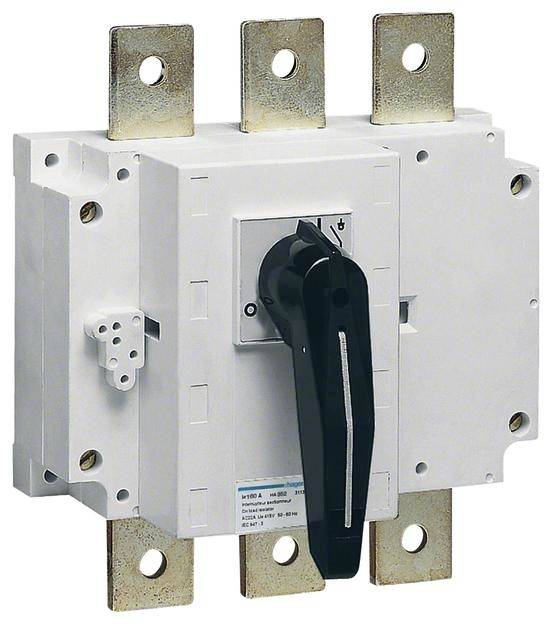

Ločilno stikalo 3-polno 160A z indikatorjem izklopa. Ločilno stikalo po DIN EN 60947-3 za VKLOP/IZKLOP v sistemih. Vgrajen v modularni zasnovi za pritrditev na vodilo DIN-C ali za montažo na montažno ploščo.
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: HA352
EAN koda: 3250613113520
Registrirana blagovna znamka: Hager
Ime proizvajalca: Hager Vertriebsgesellschaft mbH & Co. KG
Naslov proizvajalca: Zum Gunterstal
Poštna številka proizvajalca: 66440
Kraj proizvajalca: Blieskastel
Država proizvajalca: Germany
Telefon proizvajalca: +4968429450
Elektronski kontakt proizvajalca: https://hager-sicurezza.it/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki 3198728 Hager HA352 HA352 bremensko ločilno stikalo 3-polni 160 A 415 V
Tehnični podatki
| Vrsta izdelka |
bremensko ločilno stikalo |
|---|---|
| Število pinov |
3 |
| Nazivni tok - zaokrožen |
160 A |
| Nazivni tok |
160 A |
| Vsebina |
1 kos |
| Nazivna napetost |
415 V |
| Number of auxiliary contacts as normally open contact |
0 |
| Number of auxiliary contacts as normally closed contact |
0 |
| Rated permanent current Iu |
160 A |
| Number of poles |
3 |
| Rated operating voltage |
380-415 V |
| Conditioned rated short-circuit current Iq |
50 kA |
| Degree of protection (IP), front side |
IP00 |
| Number of auxiliary contacts as change-over contact |
0 |
| Number of switches |
1 |
| Interlockable |
TRUE |
| Motor drive integrated |
FALSE |
| Type of electrical connection of main circuit |
Cable clamp |
| Version as emergency stop installation |
FALSE |
| Type of control element |
Long rotary handle |
| Version as main switch |
TRUE |
| Version as safety switch |
TRUE |
| Version as maintenance-/service switch |
TRUE |
| Rated operation power at AC-23, 400 V |
72 kW |
| Rated short-time withstand current lcw |
7 kA |
| Colour control element |
Black |
| Suitable for floor mounting |
TRUE |
| Suitable for front mounting 4-hole |
FALSE |
| Suitable for front mounting centre |
FALSE |
| Suitable for distribution board installation |
TRUE |
| Suitable for intermediate mounting |
FALSE |
| Max. rated operation voltage Ue AC |
415 V |
| Motor drive optional |
FALSE |
| Voltage release optional |
FALSE |
| Device construction |
Built-in device fixed built-in technique |
| Rated permanent current at AC-21, 400 V |
160 A |
| Switching power at 400 V |
105 kW |
| Version as reversing switch |
FALSE |
| Rated permanent current at AC-23, 400 V |
160 |
| Degree of protection (NEMA) |
Other |
| UKCA |
da |
