Opis

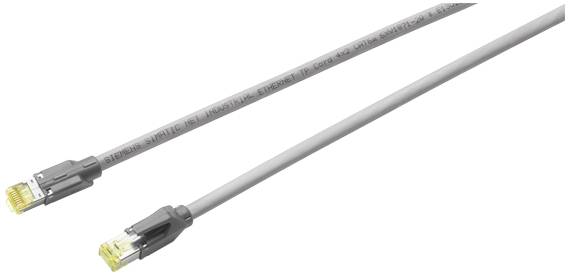

Industrial Ethernet TP Cord RJ45/RJ45, CAT 6A, TP cable 4x2(gray), pre-assembled with 2 RJ45 connectors, length 3 m.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 6XV18704UH30
EAN koda: 4047623800224
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta embalaže |
Single |
|---|---|
| Vrsta |
6XV1870-4UH30 |
| Vrsta izdelka |
konektor za senzor/aktuator, konfekcioniran |
| Izvedba |
vtič |
| Standardni vtič |
RJ45 |
| Stranski priključek A |
RJ45 vtič |
| Priključna stran B |
RJ45 vtič |
| Število polov |
8P8C |
| Dolžina kabla |
3 m |
| Priključek |
RJ45 |
| Značilnosti |
Ethernet |
| Proizv. št. delov |
6XV18704UH30 |
| Vsebina |
1 kos |
| Skladnost z RoHS |
Ja |
| Material core insulation |
Other |
| Core identification |
Colour |
| Flame retardant |
No |
| Stranding element |
Pairs |
| Colour outer sheath |
Grey |
| Category |
Other |
| Diameter conductor |
0.5 mm |
| Screen over stranding element |
Foil |
| Screen over stranding |
Braiding |
| Material outer sheath |
Other |
| Number of stranding elements |
4 |
| Number of cores |
8 |
| Stranding |
Bundle |
| Outer diameter approximate |
6.2 mm |
| NVP value |
76 % |
| Conductor surface |
Bare |
| Reaction-to-fire according to EN 13501-6: Class |
Eca |
| Min. permitted bending radius, moving application with forced guidance |
62 |
| Min. permitted bending radius, moving application/free movement |
62 |
| Min. permitted bending radius, stationary application/permanent installation |
62 |
| Specification material outer sheath |
Other |
| UKCA |
ni pomembno |
