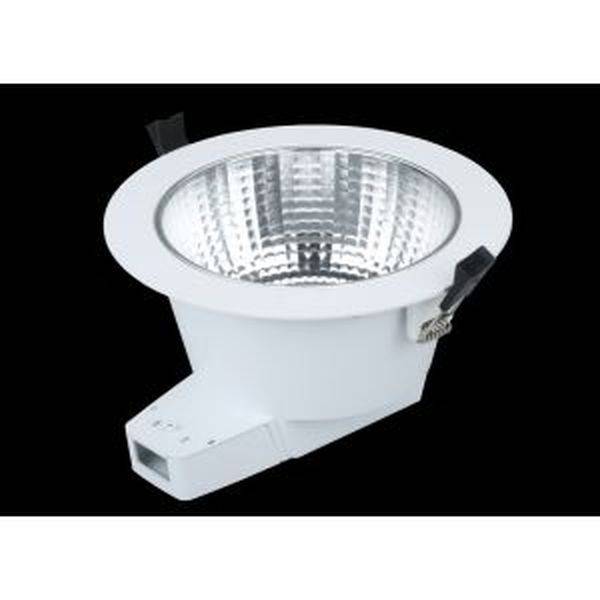

DOTLUX 3841-040090 stropni LED-reflektor

Blagovna znamka DOTLUX

(0 ocen)

1.075,00 EUR

Koda izdelka: 2985733
EAN: 4260523592420
Predvidena dobava:12.10.2026 - 19.10.2026

Opis

COLORselect: 3 svetle barve v eni luči. Pravo barvo svetlobe je mogoče prilagoditi za vsako okolje uporabe. Topla bela 3.000 K: hotel, trgovina, wellness/spa območja, dom in bivanje Nevtralna bela 4.000 K: pisarne, gostinstvo, industrija, sanitarije, domovi za ostarele in bolnišnice Dnevna bela 5.700 K: industrija, sejne sobe, izobraževalne ustanove, pisarne prosta zasnova svetilke (UGR Faceted Mulit -Reflector zagotavlja enakomerno osvetlitev Povezava s terminali brez orodja (skozi ožičenje z vgrajeno razbremenitvijo obremenitve) Zasnova ohišja, odporna na škropljenje (IP 54 na sprednji strani) SmartCooling: odvajanje toplote s strani prostora skozi aluminijast reflektor Razmak- možna brezplačna montaža Primerno za centralno baterijo

Besedilo je strojno prevedeno.

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 3841-040090

EAN koda: 4260523592420

Registrirana blagovna znamka: DOTLUX

Ime proizvajalca: DOTLUX GmbH

Naslov proizvajalca: Richard-Stücklen-Str. 7

Poštna številka proizvajalca: 91781

Kraj proizvajalca: Weißenburg in Bayern

Država proizvajalca: Germany

Telefon proizvajalca: +49914140510

Elektronski kontakt proizvajalca: https://dotlux.de/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Navodila za uporabo in varnost 2985733 DOTLUX 3841-040090 stropni LED-reflektor

Tehnični podatki

Vrsta izdelka	stropni LED-reflektor
Razred energetske učinkovitosti	n.rel. (EENRPS00)
Protection class according to IEC 61140	II
Width	0 mm
Outer diameter	172 mm
Reflector	White
Housing colour	White
Voltage type	AC
With movement sensor	FALSE
Type of control gear	LED operating device current-controlled
Colour rendering index CRI	80-89
With light sensor	FALSE
Suitable for suspended mounting	FALSE
Length	0 mm
Height/depth	95 mm
Lamp type	LED not exchangeable
Impact strength	IK06
Nominal voltage	110-276 V
Degree of protection (IP)	IP54
With light source	FALSE
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	FALSE
Covering of the luminaire with thermally insulating material possible	FALSE
Suitable for built-in mounting	TRUE
With control gear	TRUE
Suitable for workplace according to EN 12464-1	TRUE
Suitable for surface mounting	FALSE
Beam angle	> 80° - Extreme wide beam
Surface brushed	FALSE
Colour temperature	4000-4000 K
Max. system power	18 W
Rated luminous flux according to IEC 62722-2-1	1980 lm
Colour of light	White
Suitable for traverse mounting	FALSE
Suitable for pedestal/floor mounting	FALSE
Suitable for light-track mounting	FALSE
Suitable for clamp-mounting	FALSE
Luminous flux	1980-1980 lm
Rated life time L80/B10 at 25 °C	50000 h
Rated ambient temperature according to IEC 62722-2-1	-20-45 °C
Dimming 0-10 V	FALSE
Dimming 1-10 V	FALSE
Dimming DALI	FALSE
Dimming DMX	FALSE
Dimming potentiometer (integrated)	FALSE
Dimming GPRS	FALSE
Dimming LineSwitch	FALSE
Dimming manufacturer's proprietary system	FALSE
Dimming mains voltage modulation	FALSE
Dimming phase cut-off (trailing edge)	FALSE
Dimming phase cut-on (leading edge)	FALSE
Dimming programmable	FALSE
Dimming RF	FALSE
Dimming Sine Wave Reduction	FALSE
Dimming Touch and Dim	FALSE
Dimming Zigbee	FALSE
Dimming with push-button	FALSE
No dim function	TRUE
Dimming depending on control gear	FALSE
Suitable for low voltage cable system	FALSE
Dimming DSI	FALSE
Suitable for ceiling mounting	FALSE
Power factor	0.9
