Opis

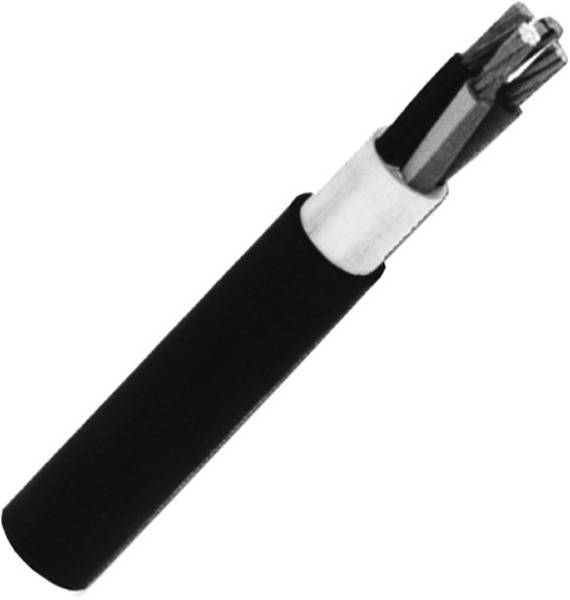

Lahek gumijast cevni kabel za priključitev lahkih električnih aparatov (kuhinjski aparati, sesalniki itd.) z nizko do srednjo mehansko obremenitvijo doma in v pisarni v suhih, vlažnih prostorih, vendar ne za stalno uporabo na prostem
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: H05RR-F 4G0,75 RG100
EAN koda: 2050009578398
Registrirana blagovna znamka:
Ime proizvajalca: Conrad Electronic SE
Naslov proizvajalca: Klaus-Conrad-Str. 1
Poštna številka proizvajalca: 92242
Kraj proizvajalca: Hirschau
Država proizvajalca: Germany
Telefon proizvajalca: +499604408787
Elektronski kontakt proizvajalca: [email protected]
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Navodila za uporabo in varnost 2984615 H05RR-F 4G0,75 RG100 kabel s plaščem 100 m
Navodila za uporabo in varnost 2984615 H05RR-F 4G0,75 RG100 kabel s plaščem 100 m
Navodila za uporabo in varnost 2984615 H05RR-F 4G0,75 RG100 kabel s plaščem 100 m
Navodila za uporabo in varnost 2984615 H05RR-F 4G0,75 RG100 kabel s plaščem 100 m
Navodila za uporabo in varnost 2984615 H05RR-F 4G0,75 RG100 kabel s plaščem 100 m
Navodila za uporabo in varnost 2984615 H05RR-F 4G0,75 RG100 kabel s plaščem 100 m
Navodila za uporabo in varnost 2984615 H05RR-F 4G0,75 RG100 kabel s plaščem 100 m
Navodila za uporabo in varnost 2984615 H05RR-F 4G0,75 RG100 kabel s plaščem 100 m
Navodila za uporabo in varnost 2984615 H05RR-F 4G0,75 RG100 kabel s plaščem 100 m
Navodila za uporabo in varnost 2984615 H05RR-F 4G0,75 RG100 kabel s plaščem 100 m
Navodila za uporabo in varnost 2984615 H05RR-F 4G0,75 RG100 kabel s plaščem 100 m
Navodila za uporabo in varnost 2984615 H05RR-F 4G0,75 RG100 kabel s plaščem 100 m
Navodila za uporabo in varnost 2984615 H05RR-F 4G0,75 RG100 kabel s plaščem 100 m
Tehnični podatki
| Vrsta izdelka |
kabel s plaščem |
|---|---|
| Vsebina |
100 m |
| Proizv. št. delov |
H05RR-F 4G0,75 RG100 |
| Vrsta |
H05RR-F 4G0,75 RG100 |
| Nominal cross section conductor |
0.75 mm² |
| Material core insulation |
Rubber |
| Core identification |
Colour |
| Weight |
79 kg/km |
| Flame retardant |
No |
| Nominal voltage U |
500 V |
| Stranding element |
No |
| Colour outer sheath |
Black |
| Shape of conductor |
Round |
| Conductor material |
Copper |
| Screen over stranding element |
None |
| Screen over stranding |
None |
| Material outer sheath |
Rubber |
| Conductor category |
Class 5 = flexible |
| Permitted cable outer temperature during assembling/handling |
-30-60 °C |
| Permitted cable outer temperature after assembling without vibration |
-30-60 °C |
| Torsion resistant |
FALSE |
| Nominal voltage U0 |
300 V |
| Number of cores |
4 |
| Suspension element |
None |
| Outer diameter approximate |
9.6 mm |
| With protective conductor |
TRUE |
| Low smoke (according to EN 61034-2) |
FALSE |
| Halogen free according to EN 60754-1/2 |
FALSE |
| Oil resistant according to EN IEC 60811-404 |
FALSE |
| Low temperature resistant according to EN 60811-504+505+506 |
FALSE |
| Conductor surface |
Bare |
| Reaction-to-fire according to EN 13501-6: Class |
None |
| Reaction-to-fire according to EN 13501-6: Smoke production |
None |
| Reaction-to-fire according to EN 13501-6: Flaming droplets/particles |
None |
| Reaction-to-fire according to EN 13501-6: Acidity |
None |
| Min. permitted bending radius, moving application with forced guidance |
72 mm |
| Min. permitted bending radius, moving application/free movement |
72 mm |
| Min. permitted bending radius, stationary application/permanent installation |
72 mm |
| Cable geometry |
Round |
