Opis

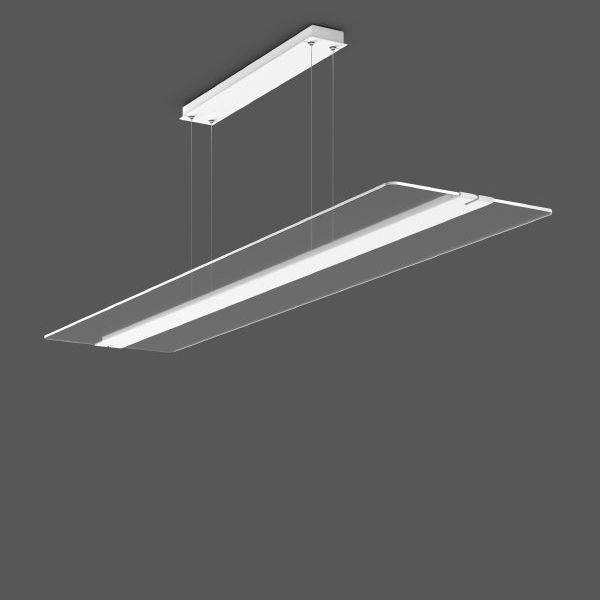

Viseča LED svetilka izjemno ploščatega videza brez okvirja. Sredinska palica svetilke iz ekstrudiranega aluminijastega profila, prašno lakirana. Transparentni svetlobni vodnik iz UV-stabilnega akrilnega stekla (PMMA) s prizmami TWINDOT. Nadzor svetlobe s tehnologijo TWINDOT brez bleščanja za prijetno mehko svetlobo z mehkimi sencami. Enakomerna široka porazdelitev svetlobe, posredna in neposredna. Emisija svetlobe direktna 55 %, indirektna 45 %. 4-točkovno vzmetenje z jekleno vrvico, brezstopenjsko nastavljivo po višini. Upravljalna naprava vgrajena v nadstrešek (belo prašno lakirano). Napajanje preko kabelskega nihala.
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 312265.002.1.730
EAN koda: 4051859261919
Registrirana blagovna znamka: RZB
Ime proizvajalca: RZB Rudolf Zimmermann, Bamberg GmbH
Naslov proizvajalca: Rheinstrasse 16
Poštna številka proizvajalca: 96052
Kraj proizvajalca: Bamberg
Država proizvajalca: Germany
Telefon proizvajalca: +4995179090
Elektronski kontakt proizvajalca: http://www.rzb-leuchten.de
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta izdelka |
LED viseča svetilka |
|---|---|
| Vrsta |
LED |
| Značilnosti luči |
nastavljivo po višini |
| Barva |
bela |
| Material |
aluminij |
| Razred energetske učinkovitosti |
n.rel. (EENRPS00) |
| Oblika |
ploščat |
| Vključena svetila |
da |
| Protection class according to IEC 61140 |
I |
| Width |
350 mm |
| Reflector |
None |
| Lamp holder |
None |
| Conductor cross section |
2.50 mm² |
| Connection type |
Push-in clamp |
| Housing colour |
White |
| Voltage type |
AC |
| Suitable for lamp power |
62-62 W |
| Type of grid |
None |
| Type of control gear |
LED operating device current-controlled |
| Colour rendering index CRI |
80-89 |
| Number of poles |
3 |
| Length |
1500 mm |
| Height/depth |
20 mm |
| Housing material |
Aluminium |
| Lamp type |
LED not exchangeable |
| Direct-/indirect proportion separately controllable |
FALSE |
| Suitable for light line configuration |
FALSE |
| Suitable for emergency lighting |
FALSE |
| Light outlet |
Direct/indirect |
| Light distribution |
Symmetric |
| Material cover |
Plastic, transparent |
| Pendant length |
500-1200 mm |
| Impact strength |
IK03 |
| Nominal voltage |
220-240 V |
| Emergency power supply integrated |
FALSE |
| Degree of protection (IP) |
IP20 |
| With light source |
TRUE |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 |
FALSE |
| Suitable for number of light sources |
1 |
| With control gear |
TRUE |
| With suspension |
TRUE |
| Suitable for workplace according to EN 12464-1 |
TRUE |
| Nominal current |
258-282 mA |
| Colour temperature |
4000-4000 K |
| Max. system power |
62 W |
| Rated luminous flux according to IEC 62722-2-1 |
8100 lm |
| Colour of light |
White |
| Constant light output (CLO) |
TRUE |
| IFTTT support available |
FALSE |
| Type of wiring |
Suitable for loop-through wiring |
| Rated life time L80/B10 at 25 °C |
60000 h |
| Colour consistency (McAdam ellipse) |
SDCM3 |
| Degree of protection (NEMA) |
Other |
| Filament test according to IEC 60695-2-11 |
650 °C - 30 s |
| LED nominal current at constant current |
258-282 mA |
| Dimming 0-10 V |
FALSE |
| Dimming 1-10 V |
FALSE |
| Dimming DALI |
FALSE |
| Dimming DMX |
FALSE |
| Dimming potentiometer (integrated) |
FALSE |
| Dimming GPRS |
FALSE |
| Dimming LineSwitch |
FALSE |
| Dimming manufacturer's proprietary system |
TRUE |
| Dimming mains voltage modulation |
FALSE |
| Dimming phase cut-off (trailing edge) |
FALSE |
| Dimming phase cut-on (leading edge) |
FALSE |
| Dimming programmable |
FALSE |
| Dimming RF |
FALSE |
| Dimming Sine Wave Reduction |
FALSE |
| Dimming Touch and Dim |
FALSE |
| Dimming Zigbee |
FALSE |
| Dimming with push-button |
FALSE |
| No dim function |
FALSE |
| Light distributor |
None |
| Luminaire efficacy |
131 lm/W |
| Dimming DSI |
FALSE |
| Unified Glare Ratio (UGR) |
17.60 |
| Compatible with Apple HomeKit |
FALSE |
| Compatible with Google Assistant |
FALSE |
| Compatible with Amazon Alexa |
FALSE |
| Dimming DALI-2 |
FALSE |
| Colour of light adjustable |
No |
| Luminous flux adjustable |
Continuously variable |
| Beam angle adjustable |
No |
| Exchangeable control gear |
TRUE |
| Power factor |
0.95 |
| UKCA |
ni pomembno |
