Opis

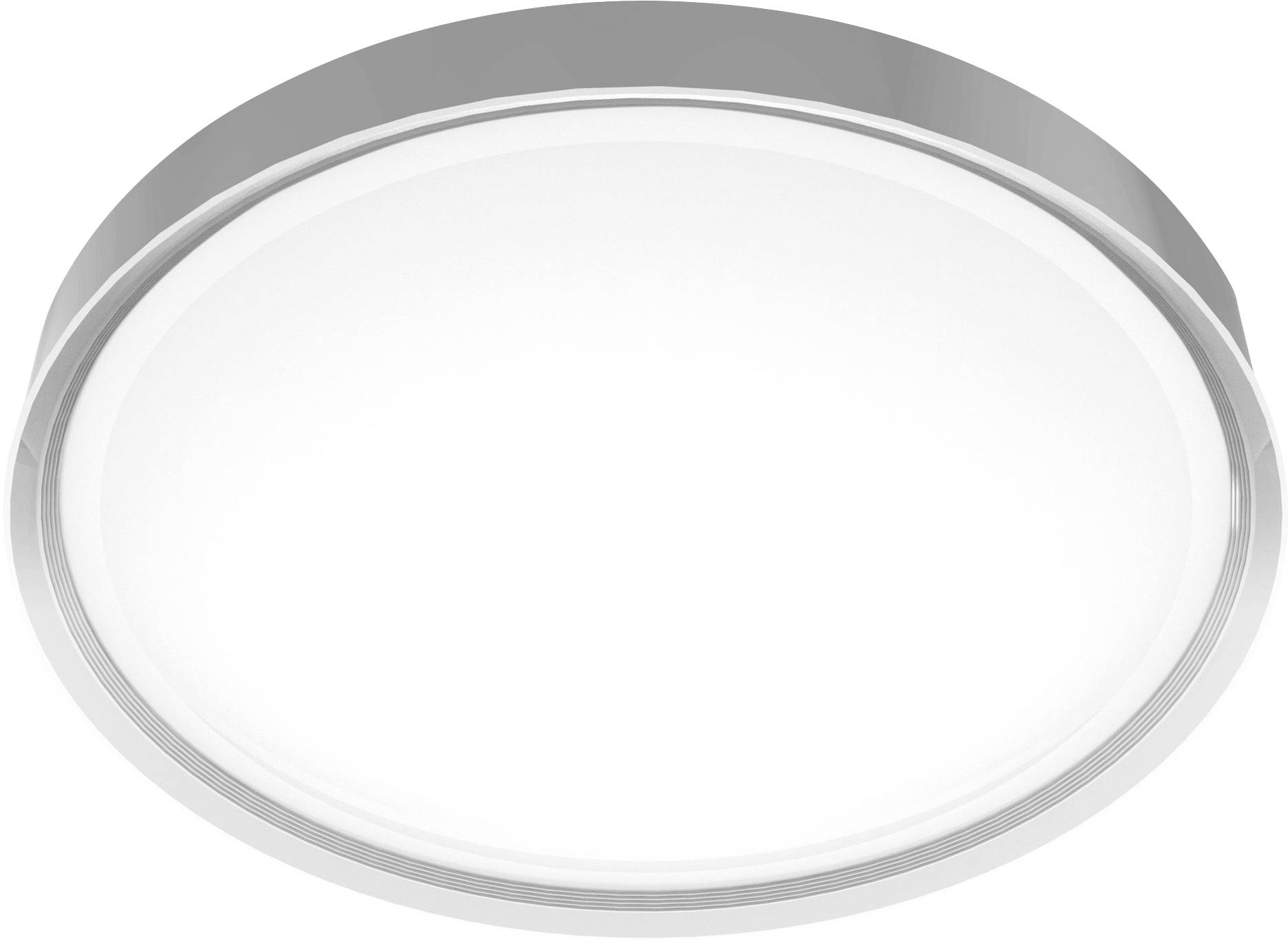

Ploščata okrasna okrogla nadometna LED svetilka. Okov kovinski prašno lakiran. Difuzor iz opalne plastike (polikarbonat), odporen na udarce. Pritrditev difuzorja s patentirano tehnologijo zapiranja (tlačno zapiranje). Primeren za montažo na strop, montažo na steno.
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 312085.002.4
EAN koda: 4051859155560
Registrirana blagovna znamka: RZB
Ime proizvajalca: RZB Rudolf Zimmermann, Bamberg GmbH
Naslov proizvajalca: Rheinstrasse 16
Poštna številka proizvajalca: 96052
Kraj proizvajalca: Bamberg
Država proizvajalca: Germany
Telefon proizvajalca: +4995179090
Elektronski kontakt proizvajalca: http://www.rzb-leuchten.de
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Tehnični podatki
| Vrsta izdelka |
LED stenska svetilka |
|---|---|
| Razred energetske učinkovitosti |
n.rel. (EENRPS00) |
| Protection class according to IEC 61140 |
I |
| Outer diameter |
360 mm |
| Lamp holder |
Other |
| Conductor cross section |
2.50 mm² |
| Connection type |
Push-in clamp |
| Housing colour |
White |
| Voltage type |
AC |
| With movement sensor |
FALSE |
| Suitable for lamp power |
19-19 W |
| Type of grid |
None |
| Type of control gear |
LED operating device current-controlled |
| Colour rendering index CRI |
80-89 |
| With light sensor |
FALSE |
| Suitable for suspended mounting |
FALSE |
| Number of poles |
2 |
| Height/depth |
65 mm |
| Housing material |
Steel |
| Lamp type |
LED not exchangeable |
| Suitable for light line configuration |
FALSE |
| Suitable for emergency lighting |
FALSE |
| Light outlet |
Direct/indirect |
| Light distribution |
Symmetric |
| Material cover |
Plastic, opal |
| Impact strength |
IK10 |
| Nominal voltage |
220-240 V |
| Emergency power supply integrated |
FALSE |
| Degree of protection (IP) |
IP40 |
| With light source |
TRUE |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 |
FALSE |
| Covering of the luminaire with thermally insulating material possible |
TRUE |
| Suitable for number of light sources |
1 |
| Suitable for wall mounting |
TRUE |
| Suitable for built-in mounting |
FALSE |
| With control gear |
TRUE |
| Suitable for workplace according to EN 12464-1 |
FALSE |
| Suitable for surface mounting |
TRUE |
| Beam angle |
> 80° - Extreme wide beam |
| Nominal current |
79-86 mA |
| Colour temperature |
4000-4000 K |
| Max. system power |
19 W |
| Rated luminous flux according to IEC 62722-2-1 |
2050 lm |
| Colour of light |
White |
| With air slots |
FALSE |
| Constant light output (CLO) |
FALSE |
| IFTTT support available |
FALSE |
| Type of wiring |
Suitable for loop-through wiring |
| Rated life time L80/B10 at 25 °C |
50000 h |
| Colour consistency (McAdam ellipse) |
SDCM3 |
| Photobiological safety according to EN 62471 |
RG1 |
| Degree of protection (NEMA) |
Other |
| Rated ambient temperature according to IEC 62722-2-1 |
-20-35 °C |
| Filament test according to IEC 60695-2-11 |
850 °C - 30 s |
| Dimming 0-10 V |
FALSE |
| Dimming 1-10 V |
FALSE |
| Dimming DALI |
FALSE |
| Dimming DMX |
FALSE |
| Dimming potentiometer (integrated) |
FALSE |
| Dimming GPRS |
FALSE |
| Dimming LineSwitch |
FALSE |
| Dimming manufacturer's proprietary system |
FALSE |
| Dimming mains voltage modulation |
FALSE |
| Dimming phase cut-off (trailing edge) |
TRUE |
| Dimming phase cut-on (leading edge) |
TRUE |
| Dimming programmable |
FALSE |
| Dimming RF |
FALSE |
| Dimming Sine Wave Reduction |
FALSE |
| Dimming Touch and Dim |
FALSE |
| Dimming Zigbee |
FALSE |
| Dimming with push-button |
FALSE |
| No dim function |
FALSE |
| Light distributor |
None |
| Dimming depending on control gear |
TRUE |
| Luminaire efficacy |
108 lm/W |
| Dimming DSI |
FALSE |
| Unified Glare Ratio (UGR) |
21 |
| Operation by Bluetooth |
FALSE |
| Compatible with Apple HomeKit |
FALSE |
| Compatible with Google Assistant |
FALSE |
| Compatible with Amazon Alexa |
FALSE |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) |
135 |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) |
135 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) |
80 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) |
10 % |
| Dimming DALI-2 |
FALSE |
| Colour of light adjustable |
No |
| Luminous flux adjustable |
No |
| Beam angle adjustable |
No |
| Exchangeable control gear |
FALSE |
| Suitable for ceiling mounting |
TRUE |
| Surface protection housing |
Powder coating |
