Opis

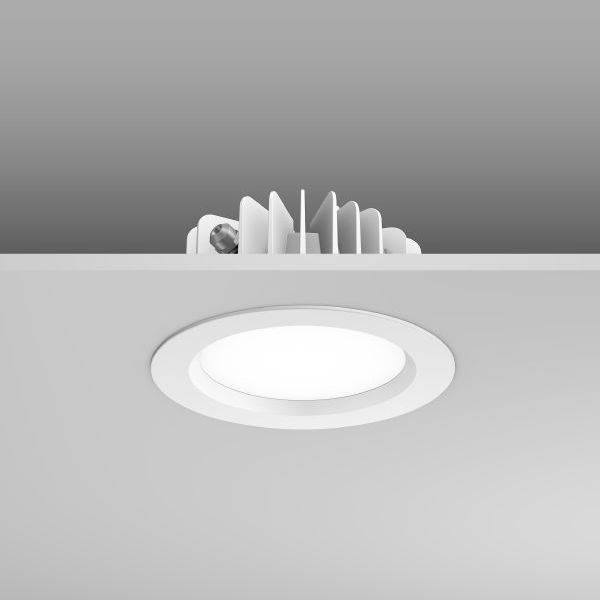

LED vgradna svetilka za visoke zahteve. Ohišje iz tlačno litega aluminija zasnovano kot hladilno telo. Pokrivni obroč iz tlačno litega aluminija, prašno lakiran. Plastični disk, odporen na udarce, opal. Standardno z membranskim ventilom GoreT Protective Vents za preprečevanje kondenzacije. Svetilka ohranja visok zaščitni razred tudi pri vgradnji v spuščeni strop. Namestitev brez orodja z uporabo vzmetnega pritrditve. Priključitev neposredno na 220-240 V AC, kar pomeni, da naprava za upravljanje ni potrebna. Priključni kabel 2 m s prostimi konci žice. Škatla za ožičenje (5-polna) je na voljo kot dodatna oprema. Odporen na krogle po DIN 18032-03. Odobreno za uporabo v industriji hrane in pijač.
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 901434.002
EAN koda: 4051859028857
Registrirana blagovna znamka: RZB
Ime proizvajalca: RZB Rudolf Zimmermann, Bamberg GmbH
Naslov proizvajalca: Rheinstrasse 16
Poštna številka proizvajalca: 96052
Kraj proizvajalca: Bamberg
Država proizvajalca: Germany
Telefon proizvajalca: +4995179090
Elektronski kontakt proizvajalca: http://www.rzb-leuchten.de
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta izdelka |
stropni LED-reflektor |
|---|---|
| Podnožje |
LED fiksno vgrajena |
| Vrsta |
LED |
| Material |
aluminij (tlačno litje) |
| Razred energetske učinkovitosti |
n.rel. (EENRPS00) |
| Vključena svetila |
da |
| Protection class according to IEC 61140 |
I |
| Outer diameter |
180 mm |
| Reflector |
None |
| Lamp holder |
None |
| Connection type |
Other |
| Housing colour |
White |
| Surface protection |
Powder coating |
| Voltage type |
AC |
| With movement sensor |
FALSE |
| Suitable for lamp power |
20-20 W |
| Type of control gear |
LED operating device current-controlled |
| Colour rendering index CRI |
80-89 |
| Suitable for wall mounting |
FALSE |
| With light sensor |
FALSE |
| Suitable for suspended mounting |
FALSE |
| Number of poles |
3 |
| Height/depth |
3 mm |
| Housing material |
Aluminium |
| Lamp type |
LED not exchangeable |
| Light outlet |
Direct |
| Light distribution |
Symmetric |
| Material cover |
Plastic, opal |
| Impact strength |
IK07 |
| Nominal voltage |
220-240 V |
| Emergency power supply integrated |
FALSE |
| Degree of protection (IP) |
IP65 |
| With light source |
TRUE |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 |
FALSE |
| Covering of the luminaire with thermally insulating material possible |
FALSE |
| Suitable for number of light sources |
1 |
| Suitable for built-in mounting |
TRUE |
| With control gear |
TRUE |
| Suitable for workplace according to EN 12464-1 |
FALSE |
| Suitable for surface mounting |
FALSE |
| Beam angle |
> 80° - Extreme wide beam |
| Surface brushed |
FALSE |
| Colour temperature |
3000-3000 K |
| Max. system power |
20 W |
| Rated luminous flux according to IEC 62722-2-1 |
1500 lm |
| Colour of light |
White |
| Adjustability |
Not adjustable |
| Suitable for traverse mounting |
FALSE |
| Suitable for pedestal/floor mounting |
FALSE |
| Suitable for light-track mounting |
FALSE |
| Suitable for clamp-mounting |
FALSE |
| Constant light output (CLO) |
FALSE |
| IFTTT support available |
FALSE |
| Luminous flux |
1500-1500 lm |
| Type of wiring |
Ending |
| Colour consistency (McAdam ellipse) |
SDCM3 |
| Photobiological safety according to EN 62471 |
RG1 |
| Degree of protection (NEMA) |
Other |
| Rated ambient temperature according to IEC 62722-2-1 |
-40-35 °C |
| Filament test according to IEC 60695-2-11 |
650 °C - 30 s |
| LED nominal current at constant current |
83-91 mA |
| Dimming 0-10 V |
FALSE |
| Dimming 1-10 V |
FALSE |
| Dimming DALI |
FALSE |
| Dimming DMX |
FALSE |
| Dimming potentiometer (integrated) |
FALSE |
| Dimming GPRS |
FALSE |
| Dimming LineSwitch |
FALSE |
| Dimming manufacturer's proprietary system |
FALSE |
| Dimming mains voltage modulation |
FALSE |
| Dimming phase cut-off (trailing edge) |
TRUE |
| Dimming phase cut-on (leading edge) |
TRUE |
| Dimming programmable |
FALSE |
| Dimming RF |
FALSE |
| Dimming Sine Wave Reduction |
FALSE |
| Dimming Touch and Dim |
FALSE |
| Dimming Zigbee |
FALSE |
| Dimming with push-button |
FALSE |
| No dim function |
FALSE |
| Light distributor |
None |
| Dimming depending on control gear |
TRUE |
| Luminaire efficacy |
75 lm/W |
| Suitable for low voltage cable system |
FALSE |
| Dimming DSI |
FALSE |
| Unified Glare Ratio (UGR) |
28 |
| Compatible with Apple HomeKit |
FALSE |
| Compatible with Google Assistant |
FALSE |
| Compatible with Amazon Alexa |
FALSE |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) |
80 |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) |
80 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) |
70 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) |
30 % |
| Dimming DALI-2 |
FALSE |
| Colour of light adjustable |
No |
| Luminous flux adjustable |
No |
| Beam angle adjustable |
No |
| Exchangeable control gear |
FALSE |
| Built-in diameter |
160-160 mm |
| Suitable for ceiling mounting |
TRUE |
| Built-in height/depth |
92 mm |
| Power factor |
0.99 |
| UKCA |
ni pomembno |
