Opis

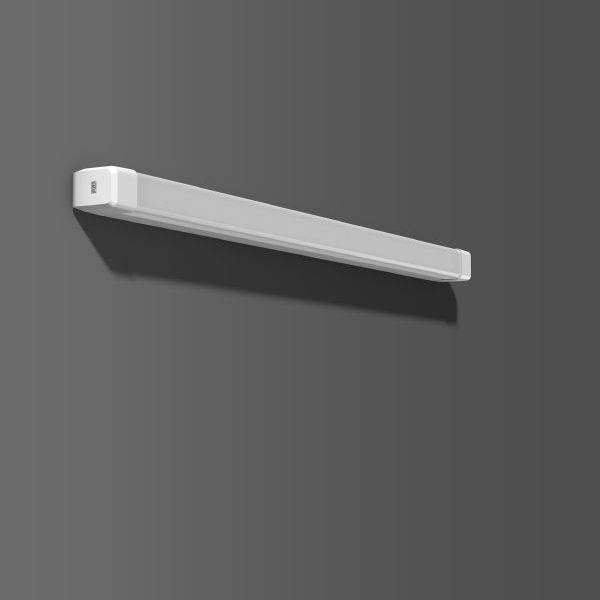

Linearna luč z brezčasnim in funkcionalnim dizajnom. Idealno za sanitarne prostore, hodnike, čakalnice, domove za ostarele, sobe za bolnike. Nastavek in končni pokrovi iz bele plastike. Difuzor iz opalne plastike (polikarbonat), odporen na udarce. Homogena in mehka osvetlitev. MultiColour: z zadnjim preklopnim elementom je možno individualno nastaviti barvno temperaturo 3000 K ali 4000 K. Tovarniško nastavljeno na 4000K. Namestitev difuzorja brez orodja. Enostavna in hitra namestitev. Možna horizontalna in vertikalna namestitev. 2 osrednji kabelski vhodi za spenjanje kabla skozi. Pogonska naprava integrirana in kapsulirana.
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 451202.002.2
EAN koda: 4051859529767
Registrirana blagovna znamka: RZB
Ime proizvajalca: RZB Rudolf Zimmermann, Bamberg GmbH
Naslov proizvajalca: Rheinstrasse 16
Poštna številka proizvajalca: 96052
Kraj proizvajalca: Bamberg
Država proizvajalca: Germany
Telefon proizvajalca: +4995179090
Elektronski kontakt proizvajalca: http://www.rzb-leuchten.de
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Navodila za uporabo in varnost 2974945 RZB 451202.002.2 451202.002.2 LED stenska svetilka
Navodila za uporabo in varnost 2974945 RZB 451202.002.2 451202.002.2 LED stenska svetilka
Navodila za uporabo in varnost 2974945 RZB 451202.002.2 451202.002.2 LED stenska svetilka
Navodila za uporabo in varnost 2974945 RZB 451202.002.2 451202.002.2 LED stenska svetilka
Navodila za uporabo in varnost 2974945 RZB 451202.002.2 451202.002.2 LED stenska svetilka
Navodila za uporabo in varnost 2974945 RZB 451202.002.2 451202.002.2 LED stenska svetilka
Navodila za uporabo in varnost 2974945 RZB 451202.002.2 451202.002.2 LED stenska svetilka
Navodila za uporabo in varnost 2974945 RZB 451202.002.2 451202.002.2 LED stenska svetilka
Navodila za uporabo in varnost 2974945 RZB 451202.002.2 451202.002.2 LED stenska svetilka
Navodila za uporabo in varnost 2974945 RZB 451202.002.2 451202.002.2 LED stenska svetilka
Navodila za uporabo in varnost 2974945 RZB 451202.002.2 451202.002.2 LED stenska svetilka
Navodila za uporabo in varnost 2974945 RZB 451202.002.2 451202.002.2 LED stenska svetilka
Navodila za uporabo in varnost 2974945 RZB 451202.002.2 451202.002.2 LED stenska svetilka
Tehnični podatki
| Vrsta izdelka |
LED stenska svetilka |
|---|---|
| Razred energetske učinkovitosti |
n.rel. (EENRPS00) |
| Protection class according to IEC 61140 |
II |
| Width |
46 mm |
| Lamp holder |
Other |
| Conductor cross section |
2.50 mm² |
| Connection type |
Push-in clamp |
| Housing colour |
White |
| Voltage type |
AC |
| With movement sensor |
FALSE |
| Suitable for lamp power |
15-15 W |
| Type of grid |
None |
| Type of control gear |
LED operating device current-controlled |
| Colour rendering index CRI |
80-89 |
| With light sensor |
FALSE |
| Suitable for suspended mounting |
FALSE |
| Number of poles |
2 |
| Length |
900 mm |
| Height/depth |
60 mm |
| Housing material |
Plastic |
| Lamp type |
LED not exchangeable |
| Suitable for light line configuration |
FALSE |
| Suitable for emergency lighting |
FALSE |
| Light outlet |
Direct/indirect |
| Light distribution |
Symmetric |
| Material cover |
Plastic, opal |
| Impact strength |
IK07 |
| Nominal voltage |
220-240 V |
| Emergency power supply integrated |
FALSE |
| Degree of protection (IP) |
IP44 |
| With light source |
TRUE |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 |
FALSE |
| Suitable for number of light sources |
1 |
| Suitable for wall mounting |
TRUE |
| Suitable for built-in mounting |
FALSE |
| With control gear |
TRUE |
| Suitable for workplace according to EN 12464-1 |
FALSE |
| Suitable for surface mounting |
TRUE |
| Beam angle |
Open beam/diffuse |
| Nominal current |
62-68 mA |
| Colour temperature |
3000-4000 K |
| Max. system power |
15 W |
| Rated luminous flux according to IEC 62722-2-1 |
1550 lm |
| With air slots |
FALSE |
| Constant light output (CLO) |
FALSE |
| IFTTT support available |
FALSE |
| Type of wiring |
Suitable for loop-through wiring |
| Rated life time L80/B10 at 25 °C |
50000 h |
| Colour consistency (McAdam ellipse) |
SDCM4 |
| Total harmonic distortion |
0.20 |
| Photobiological safety according to EN 62471 |
RG0 |
| Degree of protection (NEMA) |
Other |
| Rated ambient temperature according to IEC 62722-2-1 |
-30-40 °C |
| Filament test according to IEC 60695-2-11 |
650 °C - 30 s |
| Dimming 0-10 V |
FALSE |
| Dimming 1-10 V |
FALSE |
| Dimming DALI |
FALSE |
| Dimming DMX |
FALSE |
| Dimming potentiometer (integrated) |
FALSE |
| Dimming GPRS |
FALSE |
| Dimming LineSwitch |
FALSE |
| Dimming manufacturer's proprietary system |
FALSE |
| Dimming mains voltage modulation |
FALSE |
| Dimming phase cut-off (trailing edge) |
FALSE |
| Dimming phase cut-on (leading edge) |
FALSE |
| Dimming programmable |
FALSE |
| Dimming RF |
FALSE |
| Dimming Sine Wave Reduction |
FALSE |
| Dimming Touch and Dim |
FALSE |
| Dimming Zigbee |
FALSE |
| Dimming with push-button |
FALSE |
| No dim function |
TRUE |
| Light distributor |
None |
| Dimming depending on control gear |
FALSE |
| Luminaire efficacy |
104 lm/W |
| Dimming DSI |
FALSE |
| Unified Glare Ratio (UGR) |
23.50 |
| Operation by Bluetooth |
FALSE |
| Compatible with Apple HomeKit |
FALSE |
| Compatible with Google Assistant |
FALSE |
| Compatible with Amazon Alexa |
FALSE |
| Max. number of luminaires per miniature circuit breaker C16 (MCB) |
25 |
| Max. number of luminaires per miniature circuit breaker B16 (MCB) |
14 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) |
80 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) |
10 % |
| Dimming DALI-2 |
FALSE |
| Colour of light adjustable |
Positions |
| Luminous flux adjustable |
No |
| Beam angle adjustable |
No |
| Exchangeable control gear |
FALSE |
| Suitable for ceiling mounting |
TRUE |
| Surface protection housing |
Other |
| Power factor |
0.90 |
| UKCA |
ni pomembno |
