Opis

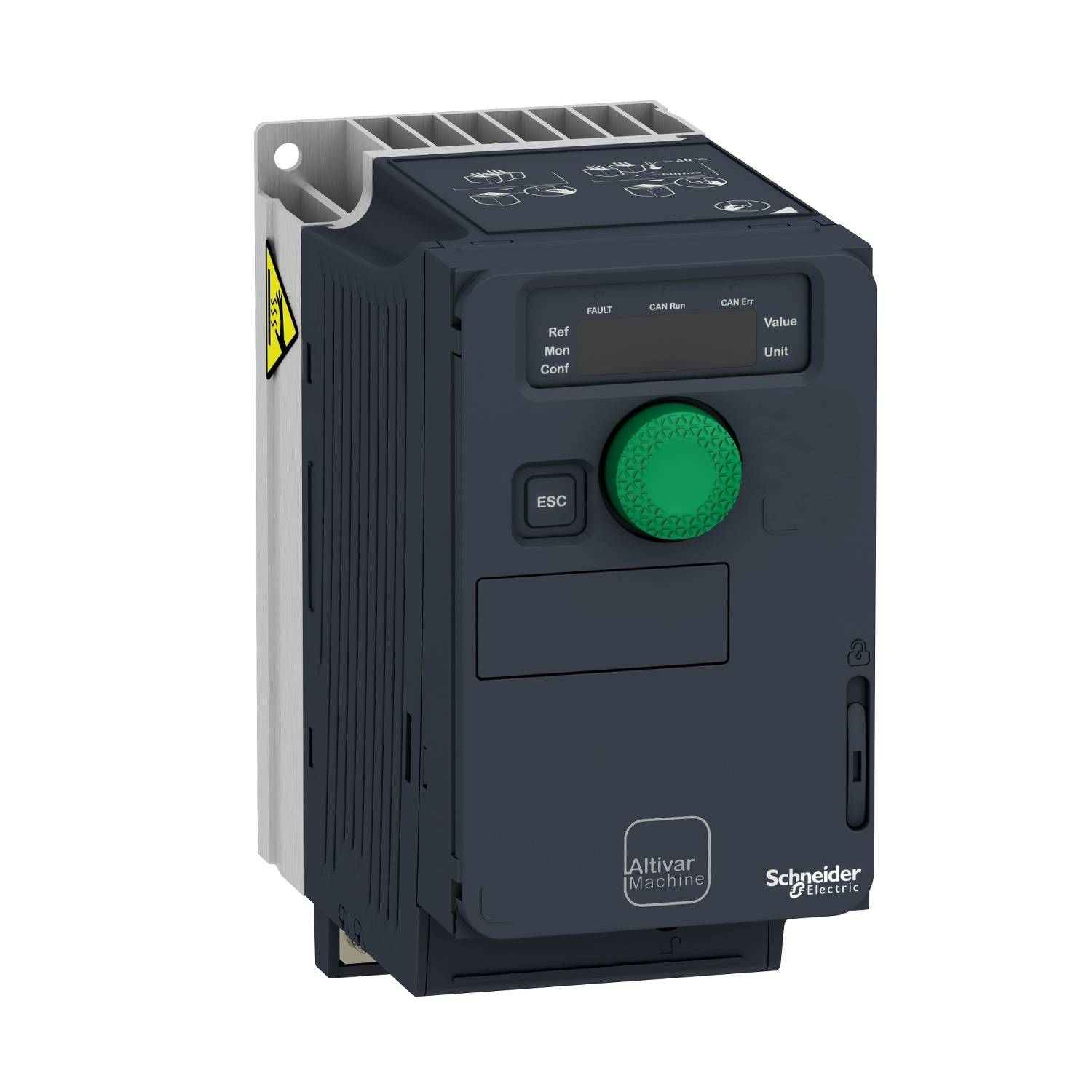

Frekvenčni pretvornik Altivar ATV320. 3 fazni, moč motorja 0,55kW, nazivna napetost 200V. Samodejna kompenzacija zdrsa, neodvisna od obremenitve - nastavljiva od 0-300% - Ni na voljo z U/f karakteristikami (2 ali 5 točk). Brez EMC filtra. Brez ventilatorja. Izpolnjuje preproste in napredne zahteve uporabe za 3-fazne sinhrone in asinhrone motorje. Zaščitni razred IP20 ustreza EN/IEC 61800-5-1, certifikati po CSA, NOM 117, EAC, RCM, UL.
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: ATV320U06M3C
EAN koda: 3606480966606
Registrirana blagovna znamka: Schneider Electric
Ime proizvajalca: Schneider Electric GmbH
Naslov proizvajalca: Gothaer Str. 29
Poštna številka proizvajalca: 40880
Kraj proizvajalca: Ratingen
Država proizvajalca: Germany
Telefon proizvajalca: +4921173743000
Elektronski kontakt proizvajalca: https://www.se.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki 2914133 Schneider Electric frekvenčni pretvornik ATV320U06M3C 0.55 kW 3-fazni
Tehnični podatki 2914133 Schneider Electric frekvenčni pretvornik ATV320U06M3C 0.55 kW 3-fazni
Informacije 2914133 Schneider Electric frekvenčni pretvornik ATV320U06M3C 0.55 kW 3-fazni
Informacije 2914133 Schneider Electric frekvenčni pretvornik ATV320U06M3C 0.55 kW 3-fazni
Informacije 2914133 Schneider Electric frekvenčni pretvornik ATV320U06M3C 0.55 kW 3-fazni
Tehnični podatki
| Vrsta izdelka |
frekvenčni pretvornik |
|---|---|
| Izhodna moč (maks.) |
0.55 kW |
| Omrežje |
3-fazni |
| Vrsta |
ATV320U06M3C |
| Proizv. št. delov |
ATV320U06M3C |
| Width |
72 |
| Height |
143 mm |
| Depth |
138 mm |
| With control element |
TRUE |
| Number of digital inputs |
6 |
| Number of digital outputs |
1 |
| Number of analogue inputs |
3 |
| Number of analogue outputs |
1 |
| Supporting protocol for LON |
FALSE |
| Number of HW-interfaces industrial Ethernet |
0 |
| Number of HW-interfaces RS-232 |
0 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
1 |
| Number of HW-interfaces serial TTY |
0 |
| Number of HW-interfaces USB |
0 |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces other |
1 |
| With optical interface |
FALSE |
| Supporting protocol for TCP/IP |
TRUE |
| Supporting protocol for ASI |
FALSE |
| Supporting protocol for PROFIBUS |
TRUE |
| Supporting protocol for CAN |
TRUE |
| Supporting protocol for INTERBUS |
FALSE |
| Supporting protocol for KNX |
FALSE |
| Supporting protocol for Modbus |
TRUE |
| Supporting protocol for Data-Highway |
FALSE |
| Supporting protocol for DeviceNet |
TRUE |
| Supporting protocol for SUCONET |
FALSE |
| Supporting protocol for other bus systems |
TRUE |
| Degree of protection (IP) |
IP20 |
| With PC connection |
TRUE |
| Supporting protocol for SERCOS |
FALSE |
| Supporting protocol for INTERBUS-Safety |
FALSE |
| Mains frequency |
50/60 Hz |
| 4-quadrant operation possible |
TRUE |
| Number of interfaces PROFINET |
0 |
| Type of converter |
U converter |
| Number of phases output |
3 |
| Number of phases input |
3 |
| Integrated breaking resistance |
TRUE |
| Application in industrial area permitted |
TRUE |
| Application in domestic- and commercial area permitted |
FALSE |
| Max. output frequency |
599 Hz |
| Max. output at linear load at rated output voltage |
0.55 kW |
| Max. output at quadratic load at rated output voltage |
0.55 kW |
| Relative symmetric net voltage tolerance |
10 % |
| Relative symmetric net frequency tolerance |
5 % |
| Supporting protocol for AS-Interface Safety at Work |
FALSE |
| Supporting protocol for DeviceNet Safety |
FALSE |
| Supporting protocol for EtherNet/IP |
TRUE |
| Supporting protocol for Foundation Fieldbus |
FALSE |
| Supporting protocol for PROFINET CBA |
FALSE |
| Supporting protocol for PROFINET IO |
TRUE |
| Supporting protocol for PROFIsafe |
FALSE |
| Supporting protocol for SafetyBUS p |
FALSE |
| Max. output voltage |
240 V |
| Nominal output current I2N |
3.7 A |
| Supporting protocol for BACnet |
FALSE |
| Degree of protection (NEMA) |
1 |
| UKCA |
da |
