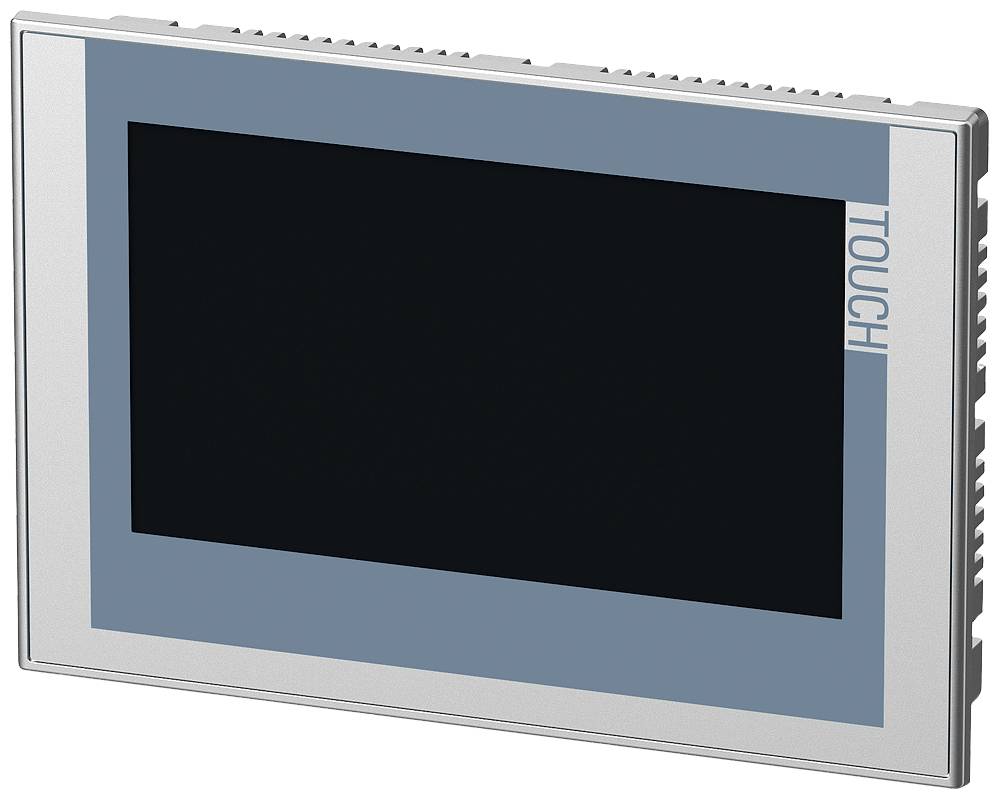

Tehnični podatki 2878385 Siemens 6AV2143-6JB00-0AA0
Tehnični podatki
Vrsta |
6AV2143-6JB00-0AA0 |
---|---|
Proizv. št. delov |
6AV21436JB000AA0 |
Built-in depth |
55 mm |
Suitable for safety functions |
FALSE |
Screen diagonal |
9 mm |
Supporting protocol for LON |
FALSE |
Number of HW-interfaces industrial Ethernet |
1 |
Number of HW-interfaces RS-232 |
0 |
Number of HW-interfaces RS-422 |
0 |
Number of HW-interfaces RS-485 |
0 |
Number of HW-interfaces serial TTY |
0 |
Number of HW-interfaces USB |
1 |
Number of HW-interfaces parallel |
0 |
Number of HW-interfaces other |
0 |
Supporting protocol for TCP/IP |
TRUE |
Supporting protocol for ASI |
FALSE |
Supporting protocol for PROFIBUS |
FALSE |
Supporting protocol for CAN |
FALSE |
Supporting protocol for INTERBUS |
FALSE |
Supporting protocol for KNX |
FALSE |
Supporting protocol for Modbus |
TRUE |
Supporting protocol for Data-Highway |
FALSE |
Supporting protocol for DeviceNet |
FALSE |
Supporting protocol for SUCONET |
FALSE |
Supporting protocol for other bus systems |
TRUE |
With colour display |
TRUE |
Number of colours of the display |
65536 |
Number of pixels, horizontal |
800 |
Number of pixels, vertical |
480 |
Number of function buttons, programmable |
0 |
With numeric keyboard |
TRUE |
With alpha numeric keyboard |
TRUE |
Useful project memory/user memory |
10000 kB |
With message indication |
TRUE |
With message system (incl. buffer and confirmation) |
TRUE |
Process value representation (output) possible |
TRUE |
Process default value (input) possible |
TRUE |
With recipes |
TRUE |
With printer output |
FALSE |
Number of online languages |
10 |
Additional software components, loadable |
FALSE |
With SW interfaces |
FALSE |
Width of the front |
267 mm |
Height of the front |
182 mm |
Rail mounting possible |
FALSE |
Supporting protocol for SERCOS |
FALSE |
Supporting protocol for INTERBUS-Safety |
FALSE |
Number of interfaces PROFINET |
1 |
Number of HW-interfaces Wireless |
0 |
Wall mounting/direct mounting |
FALSE |
Radio standard Bluetooth |
FALSE |
Radio standard Wi-Fi 802.11 |
FALSE |
IO link master |
FALSE |
Supporting protocol for AS-Interface Safety at Work |
FALSE |
Supporting protocol for DeviceNet Safety |
FALSE |
Supporting protocol for EtherNet/IP |
TRUE |
Supporting protocol for Foundation Fieldbus |
FALSE |
Supporting protocol for PROFINET CBA |
FALSE |
Supporting protocol for PROFINET IO |
FALSE |
Supporting protocol for PROFIsafe |
FALSE |
Supporting protocol for SafetyBUS p |
FALSE |
Radio standard GPRS |
FALSE |
Radio standard GSM |
FALSE |
Radio standard UMTS |
FALSE |
Number of buttons with LED |
0 |
Number of system buttons |
0 |
