Varnost izdelkov (GPSR)
Proizvajalčeva koda: 6AV21456KB200AS0
EAN koda: 4047623409625
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti

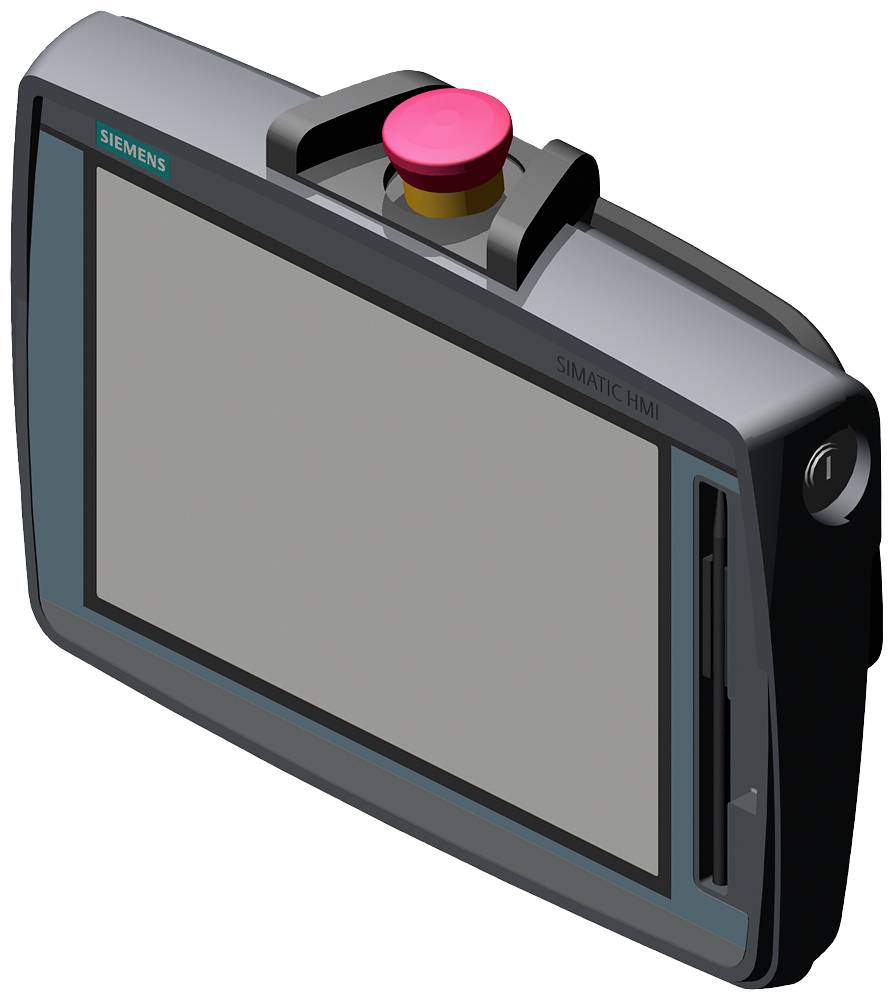

Tehnični podatki 2878381 Siemens 6AV2145-6KB20-0AS0 6AV21456KB200AS0 PLC upravljalna plošča
Tehnični podatki
| Vrsta izdelka |
PLC upravljalna plošča |
|---|---|
| Vrsta |
6AV2145-6KB20-0AS0 |
| Proizv. št. delov |
6AV21456KB200AS0 |
| Vsebina |
1 kos |
| Prikaz |
da |
| Serija |
SIMATIC |
| Width |
307.5 |
| Height |
224 mm |
| Depth |
91 mm |
| Weight |
1.6 kg/m |
| Suitable for emergency stop |
TRUE |
| Suitable for safety functions |
TRUE |
| Screen diagonal |
10.1 mm |
| Voltage type (supply voltage) |
DC |
| Supporting protocol for LON |
FALSE |
| Number of HW-interfaces industrial Ethernet |
1 |
| Number of HW-interfaces RS-232 |
0 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
0 |
| Number of HW-interfaces serial TTY |
0 |
| Number of HW-interfaces USB |
1 |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces other |
0 |
| Supporting protocol for TCP/IP |
TRUE |
| Supporting protocol for ASI |
FALSE |
| Supporting protocol for PROFIBUS |
FALSE |
| Supporting protocol for CAN |
FALSE |
| Supporting protocol for INTERBUS |
FALSE |
| Supporting protocol for KNX |
FALSE |
| Supporting protocol for Modbus |
TRUE |
| Supporting protocol for Data-Highway |
FALSE |
| Supporting protocol for DeviceNet |
FALSE |
| Supporting protocol for SUCONET |
FALSE |
| Supporting protocol for other bus systems |
FALSE |
| Colour display |
TRUE |
| Number of colours of the display |
16777216 |
| Number of pixels, horizontal |
1280 |
| Number of pixels, vertical |
800 |
| With touch screen |
TRUE |
| Number of function buttons, programmable |
0 |
| With alpha numeric keyboard |
FALSE |
| Usable project memory/user memory |
12000 kB |
| With message indication |
TRUE |
| With message system (incl. buffer and confirmation) |
TRUE |
| Process value representation (output) possible |
TRUE |
| Process default value (input) possible |
TRUE |
| With recipes |
TRUE |
| Number of password levels |
50 |
| With printer output |
FALSE |
| Number of online languages |
32 |
| With enabling button/emergency-stop switch |
TRUE |
| Pluggable connection |
TRUE |
| Max. fall height according to IEC 60068-2-32 |
1.2 m |
| Degree of protection (IP) |
IP65 |
| Supporting protocol for SERCOS |
FALSE |
| Supporting protocol for INTERBUS-Safety |
FALSE |
| Number of interfaces PROFINET |
1 |
| Number of HW-interfaces wireless |
0 |
| Radio standard Bluetooth |
FALSE |
| Radio standard WLAN 802.11 |
FALSE |
| IO link master |
FALSE |
| Supporting protocol for AS-Interface Safety at Work |
FALSE |
| Supporting protocol for DeviceNet Safety |
FALSE |
| Supporting protocol for EtherNet/IP |
TRUE |
| Supporting protocol for Foundation Fieldbus |
FALSE |
| Supporting protocol for PROFINET CBA |
FALSE |
| Supporting protocol for PROFINET IO |
TRUE |
| Supporting protocol for PROFIsafe |
TRUE |
| Supporting protocol for SafetyBUS p |
FALSE |
| Type of display |
TFT |
| Radio standard GPRS |
FALSE |
| Radio standard GSM |
FALSE |
| Mobile communications standard 3G (UMTS) |
FALSE |
| Number of buttons with LED |
0 |
| Number of system buttons |
0 |
| UKCA |
da |
