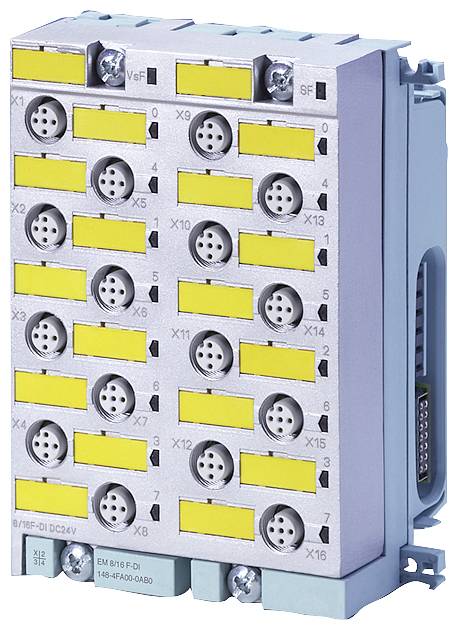

Siemens 6ES7148-4FA00-0AB0

Blagovna znamka Siemens

(0 ocen)

789,00 EUR

Koda izdelka: 2878317
EAN: 4025515073062
Predvidena dobava:02.11.2026 - 09.11.2026

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 6ES71484FA000AB0

EAN koda: 4025515073062

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Tehnični podatki 2878317 Siemens 6ES7148-4FA00-0AB0

Navodila za uporabo in varnost 2878317 Siemens 6ES7148-4FA00-0AB0

Tehnični podatki

Vrsta	6ES7148-4FA00-0AB0
Proizv. št. delov	6ES71484FA000AB0
Width	90
Height	130 mm
Depth	65 mm
Input current at signal 1	3.7 A
Suitable for safety functions	TRUE
Number of digital inputs	16
Number of digital outputs	0
Voltage type (supply voltage)	DC
Supporting protocol for LON	FALSE
Number of HW-interfaces industrial Ethernet	0
Number of HW-interfaces RS-232	0
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	0
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	0
Number of HW-interfaces parallel	0
Number of HW-interfaces other	0
With optical interface	FALSE
Type of voltage (input voltage)	DC
Supporting protocol for TCP/IP	FALSE
Supporting protocol for ASI	FALSE
Supporting protocol for PROFIBUS	FALSE
Supporting protocol for CAN	FALSE
Supporting protocol for INTERBUS	FALSE
Supporting protocol for KNX	FALSE
Supporting protocol for Modbus	FALSE
Supporting protocol for Data-Highway	FALSE
Supporting protocol for DeviceNet	FALSE
Supporting protocol for SUCONET	FALSE
Supporting protocol for other bus systems	FALSE
Type of digital output	None
Type of electric connection	Plug-in connection
Suitable for rail mounting	TRUE
Explosion safety category for gas	None
Explosion safety category for dust	None
Fieldbus connection over separate bus coupler possible	TRUE
System accessory	TRUE
Appendant operation agent (Ex ia)	FALSE
Appendant operation agent (Ex ib)	FALSE
Degree of protection (IP)	IP65/IP67
Supporting protocol for SERCOS	FALSE
Supporting protocol for INTERBUS-Safety	FALSE
Number of interfaces PROFINET	0
Number of HW-interfaces wireless	0
Front built-in possible	TRUE
Rack-assembly possible	FALSE
Wall mounting/direct mounting	TRUE
Radio standard Bluetooth	FALSE
Radio standard WLAN 802.11	FALSE
IO link master	FALSE
Performance level according to EN ISO 13849-1	Level e
Supporting protocol for AS-Interface Safety at Work	FALSE
Supporting protocol for DeviceNet Safety	FALSE
Supporting protocol for EtherNet/IP	FALSE
Supporting protocol for Foundation Fieldbus	FALSE
Supporting protocol for PROFINET CBA	FALSE
Supporting protocol for PROFINET IO	FALSE
Supporting protocol for PROFIsafe	TRUE
Supporting protocol for SafetyBUS p	FALSE
Digital inputs configurable	TRUE
Radio standard GPRS	FALSE
Radio standard GSM	FALSE
Mobile communications standard 3G (UMTS)	FALSE
SIL according to IEC 61508	3
UKCA	da
