Varnost izdelkov (GPSR)
Proizvajalčeva koda: 6SL32105BB215BV1
EAN koda: 4042948676967
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti

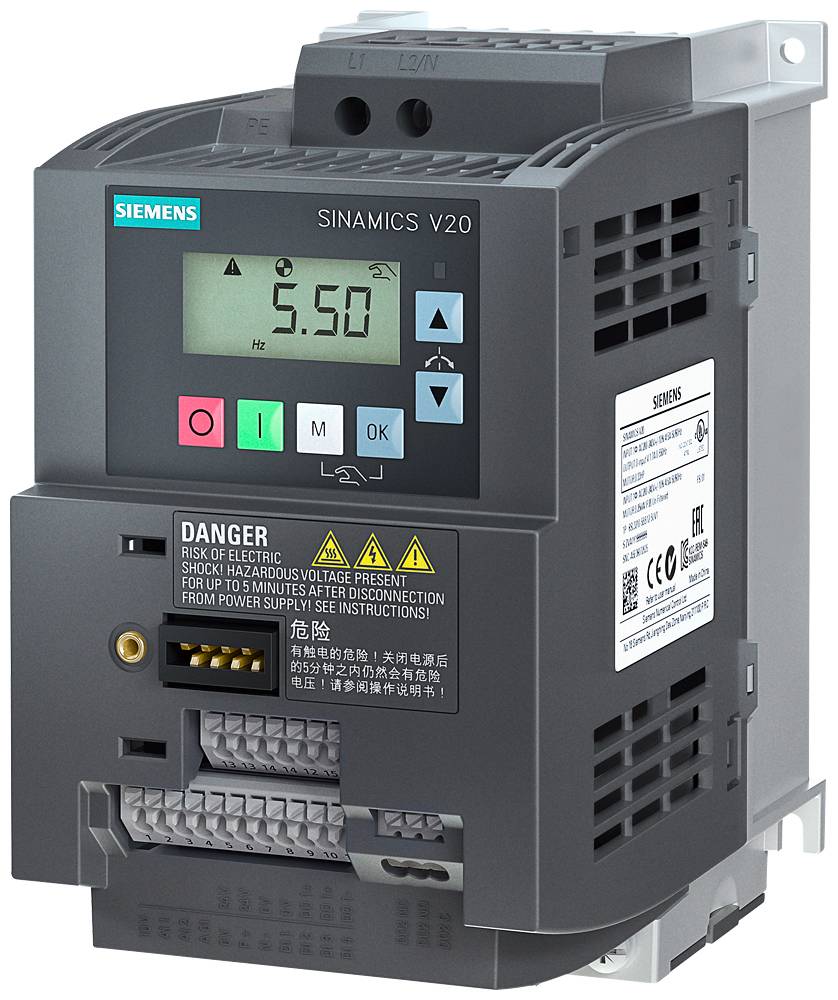

Tehnični podatki 2873287 Siemens frekvenčni pretvornik 6SL3210-5BB21-5BV1 1.5 kW 1-fazni
Tehnični podatki
| Vrsta izdelka |
frekvenčni pretvornik |
|---|---|
| Izhodna moč (maks.) |
1.5 kW |
| Omrežje |
1-fazni |
| Globina |
147 mm |
| Višina |
160.9 mm |
| Širina |
91 mm |
| Vrsta zaščite |
IP20 |
| Vrsta |
6SL3210-5BB21-5BV1 |
| Filterski razred |
C1 |
| Mere |
(Š x V x G) 91 x 160.9 x 147 mm |
| Proizv. št. delov |
6SL32105BB215BV1 |
| Teža |
1.5400 kg |
| Width |
91 |
| Height |
160.9 mm |
| Depth |
147 mm |
| Number of digital inputs |
4 |
| Number of analogue inputs |
2 |
| Number of analogue outputs |
1 |
| Supporting protocol for LON |
FALSE |
| Number of HW-interfaces industrial Ethernet |
0 |
| Number of HW-interfaces RS-232 |
1 |
| Number of HW-interfaces RS-422 |
0 |
| Number of HW-interfaces RS-485 |
1 |
| Number of HW-interfaces serial TTY |
0 |
| Number of HW-interfaces USB |
0 |
| Number of HW-interfaces parallel |
0 |
| Number of HW-interfaces other |
1 |
| With optical interface |
FALSE |
| Supporting protocol for TCP/IP |
FALSE |
| Supporting protocol for ASI |
FALSE |
| Supporting protocol for PROFIBUS |
FALSE |
| Supporting protocol for CAN |
FALSE |
| Supporting protocol for INTERBUS |
FALSE |
| Supporting protocol for KNX |
FALSE |
| Supporting protocol for Modbus |
TRUE |
| Supporting protocol for Data-Highway |
FALSE |
| Supporting protocol for DeviceNet |
FALSE |
| Supporting protocol for SUCONET |
FALSE |
| Supporting protocol for other bus systems |
TRUE |
| Degree of protection (IP) |
IP20 |
| With PC connection |
FALSE |
| Supporting protocol for SERCOS |
FALSE |
| Supporting protocol for INTERBUS-Safety |
FALSE |
| 4-quadrant operation possible |
FALSE |
| Number of interfaces PROFINET |
0 |
| Type of converter |
U converter |
| Number of phases output |
3 |
| Number of phases input |
1 |
| Integrated breaking resistance |
FALSE |
| Application in industrial area permitted |
TRUE |
| Application in domestic- and commercial area permitted |
TRUE |
| Max. output frequency |
550 Hz |
| Max. output at linear load at rated output voltage |
1.5 kW |
| Max. output at quadratic load at rated output voltage |
1.5 kW |
| Relative symmetric net voltage tolerance |
10 % |
| Relative symmetric net frequency tolerance |
-5 % |
| Supporting protocol for AS-Interface Safety at Work |
FALSE |
| Supporting protocol for DeviceNet Safety |
FALSE |
| Supporting protocol for EtherNet/IP |
FALSE |
| Supporting protocol for Foundation Fieldbus |
FALSE |
| Supporting protocol for PROFINET CBA |
FALSE |
| Supporting protocol for PROFINET IO |
FALSE |
| Supporting protocol for PROFIsafe |
FALSE |
| Supporting protocol for SafetyBUS p |
FALSE |
| Max. output voltage |
240 V |
| Nominal output current I2N |
7.8 A |
| UKCA |
da |
