Opis

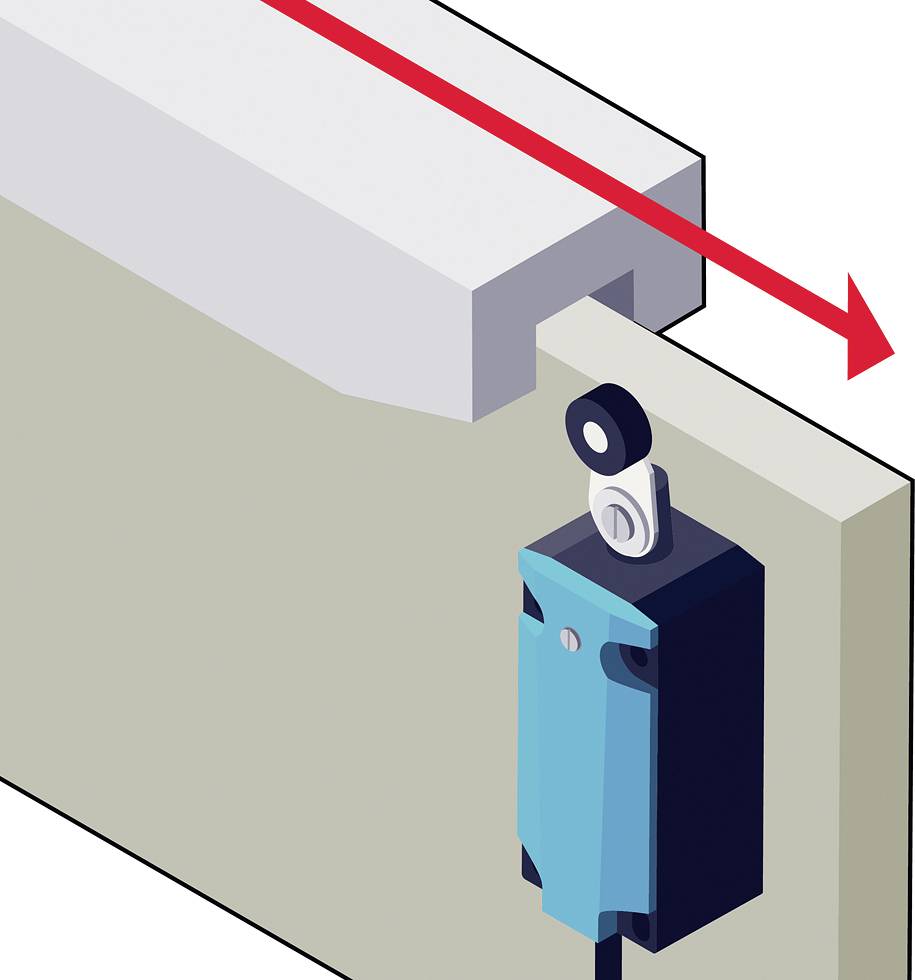

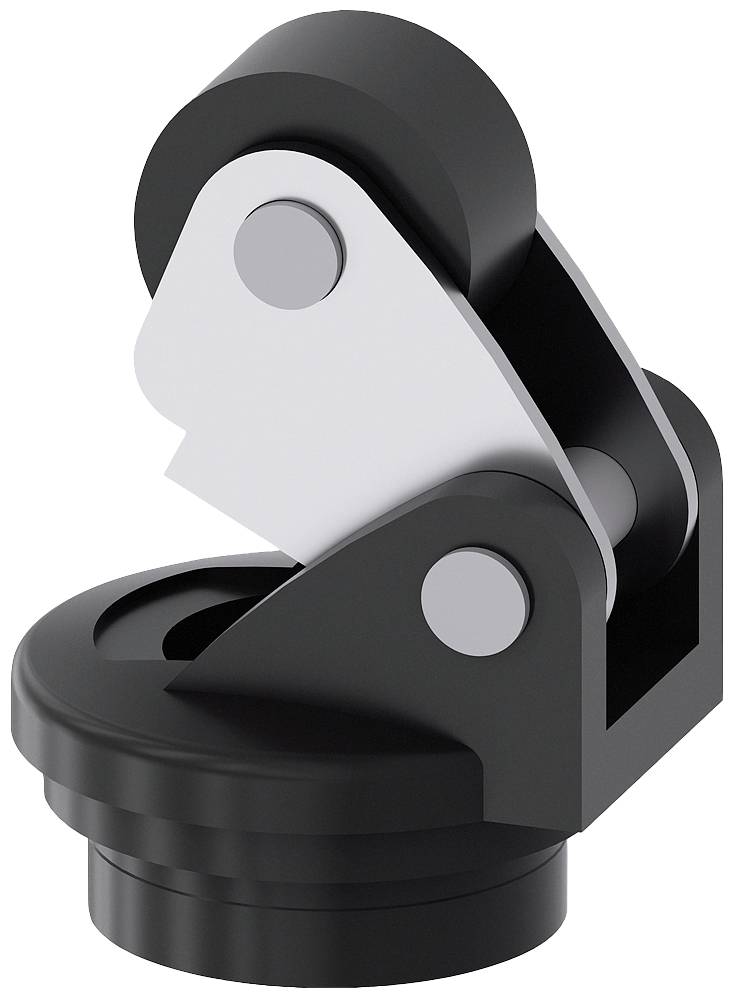

Actuator head for position switch 3SE52 Roller lever made of metal with Plastic roller 13 mm functional at -40 °C actuator head for position switch SIRIUS 3SE5 for position sensing of machine parts and position monitoring of protection equipment for extreme environmental conditions down to -40 °C, e.g. in wind energy plants, in the food and beverage industry, or for railway applications.Due to their high degree of protection, the devices are suitable for use in extreme environmental conditions. They have increased corrosion protection, have been tested for shock and impact, and are approved worldwide (IEC, UL). Withthe corresponding switch configuration, the highest safety requirements specified by PL e or SIL 3 can be met.Various enclosure sizes are available in plastic or metal. In addition, versions are available with separate actuator or tumbler.Depending on the design, various operating mechanisms and separate actuators are available.Safety is a SIRIUS business.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3SE50000AE101AJ0
EAN koda: 4011209822207
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta izdelka |
pogon za položajno stikalo |
|---|---|
| Aktivacija - vrsta |
valjčni vzvod |
| Teža |
0.022 kg |
| Min. temperatura |
-40 °C |
| Material |
kovina |
| Vrsta |
3SE5000-0AE10-1AJ0 |
| Vsebina |
1 kos |
| Skladnost z RoHS |
Ja |
| Coating housing |
Other |
| Type of interface for safety communication |
None |
| Explosion safety category for gas |
None |
| Explosion safety category for dust |
None |
| Type of control element |
Roller lever |
| Type of interface |
None |
| Alignment of the control element |
Roller cam straight |
| UKCA |
da |
