Opis

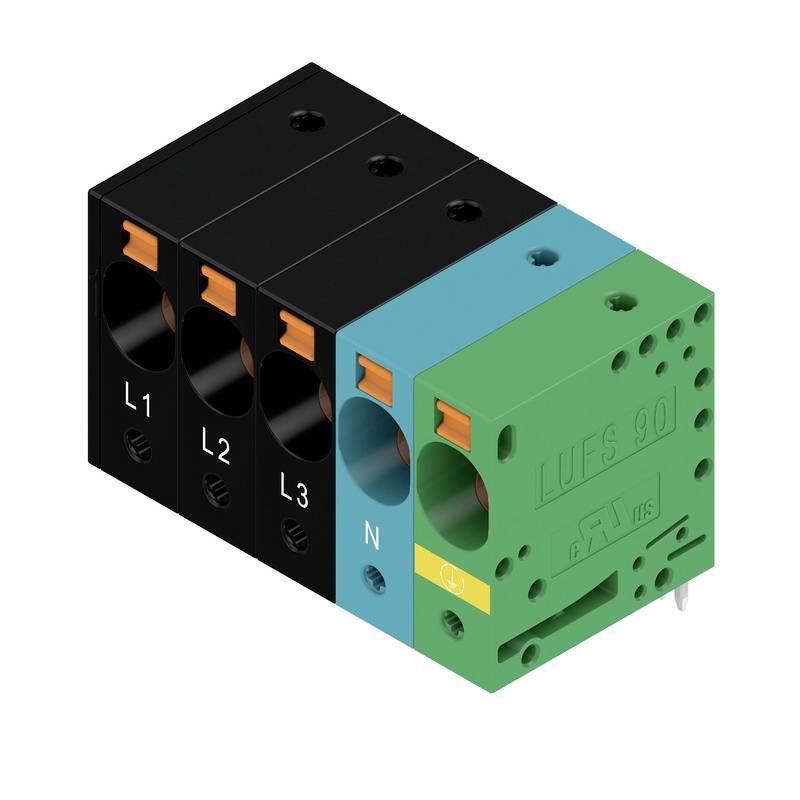

Terminal za tiskano vezje (terminal za tiskano vezje, terminal za vezje) za enostaven in varen prenos podatkov neposredno na vezje.
Besedilo je strojno prevedeno.
Tehnični podatki
| Vsebina |
500 kos |
|---|---|
| Proizv. št. delov |
2878500000 |
| Vrsta |
LUFS 10.00/05/90V 5.0SN BK BX SO |
| Height |
35 mm |
| Colour housing |
Black |
| Rated voltage |
1000 V |
| Operating temperature |
-40-120 °C |
| Type of fastening |
Solder |
| Inflammability class of insulation material according to with UL94 |
V0 |
| Rated surge voltage |
8 kV |
| Over voltage category |
II |
| Pollution degree |
2 |
| Connection type conductor |
Push-in clamp connection |
| Connection type PCB |
Soldering connection |
| Length pin |
5 mm |
| Modular spacing connections |
10 mm |
| Type of banding |
Other |
| Connectable conductor cross section solid-core |
0.5-16 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.5-16 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.5-25 mm² |
| Connectable conductor cross section multi-wired |
6-25 mm² |
| Degree of protection (IP), mounted |
Other |
| Material insulation body |
Polyamide (PA) |
| Angle PCB/conductor connection |
0°/180° (horizontal) |
| Type of PCB fastening |
Other |
| Rated current In |
90.2 A |
| Number of electrical connections |
5 |
| Vrsta izdelka |
sponka za tiskano vezje |
