Opis

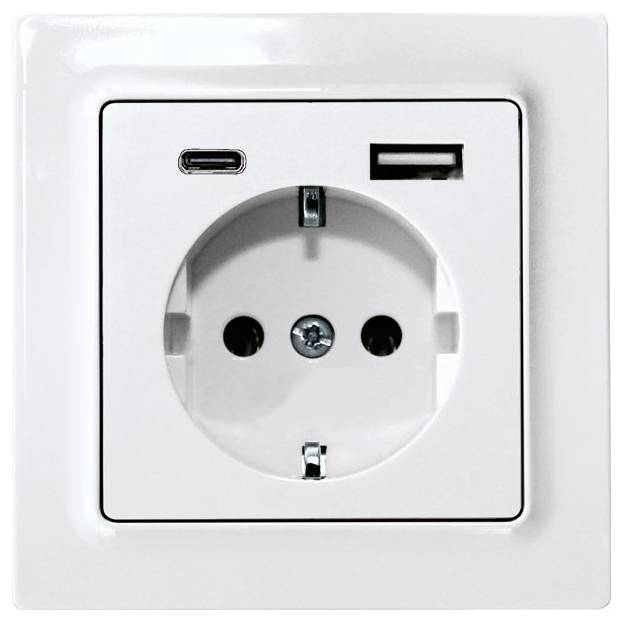

Nemška varnostna vtičnica DSS z zgornjim delom vtičnice in USB adapterjem v E-Design55, 80x80mm zunaj, okvir znotraj 55x55mm. Polarno bela mat. S povečano zaščito pred dotikom. Podnožje vtičnice ima vijačne sponke. Vgradna globina 38mm. Vgrajen USB napajalnik 5V DC/2,8A z zaščito pred kratkim stikom in preobremenitvijo. Inteligentna vzporedna uporaba obeh vrat USB.
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 30055902
EAN koda: 4010312325629
Registrirana blagovna znamka: Eltako
Ime proizvajalca: Eltako GmbH
Naslov proizvajalca: Hofener Str. 54
Poštna številka proizvajalca: 70736
Kraj proizvajalca: Fellbach
Država proizvajalca: Germany
Telefon proizvajalca: +4971194350000
Elektronski kontakt proizvajalca: https://www.eltako.com/de/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki 2637031 DSS55E+USBA+C-pm Eltako vtičnica podometna, vijačna pritrditev
Tehnični podatki
| Vrsta izdelka |
vtičnica |
|---|---|
| Serija |
Eltako |
| Mere |
(Š x V x G) 80 x 80 x 45 mm |
| Delovna napetost |
230 V |
| Način montaže |
podometna |
| Širina |
80 mm |
| Višina |
80 mm |
| Globina |
45 mm |
| Bazna postaja |
ni potrebno, izbirno za oddaljeni dostop |
| Barva |
polarno bela |
| Nazivni tok |
16 A |
| Nazivna napetost |
230 V |
| Funkcija |
varnostni kontakt |
| Komponenta |
vložek |
| Nominal current |
16 A |
| Nominal voltage |
230 V |
| Mounting method |
Flush-mounted |
| Colour |
Anthracite |
| Model |
Other |
| Halogen free |
TRUE |
| Number of units |
1 |
| Lockable |
FALSE |
| With hinged lid |
FALSE |
| Connection type |
Screwed terminal |
| Surface protection |
Untreated |
| With signal lamp |
FALSE |
| Number of phases |
1 |
| With enhanced contact protection |
TRUE |
| Frequency |
50-50 Hz |
| With on/off switch |
FALSE |
| Number of ports USB-A |
1 |
| Protective contact |
TRUE |
| Label space/information surface |
FALSE |
| Eject-mechanism |
FALSE |
| Material quality |
Thermoplastic |
| Rotated central insert |
FALSE |
| Overvoltage protection |
FALSE |
| Fault current protection |
FALSE |
| Special power supply |
No special power supply |
| Insulated mounting |
TRUE |
| Material |
Plastic |
| Type of fastening |
Mounting with screw |
| Imprint/indication |
Other |
| RAL-number (similar) |
7016 |
| Transparent |
FALSE |
| Surface finishing |
Matt |
| With miniature fuse |
FALSE |
| With loop through function |
TRUE |
| Device width |
80 mm |
| Device height |
80 mm |
| Device depth |
45 mm |
| With function lighting |
FALSE |
| With orientation lighting |
FALSE |
| With built-in USB power supply |
TRUE |
| IFTTT support available |
FALSE |
| Number of active contacts (round) |
2 |
| Number of active contacts (flat) |
0 |
| Protective earth pin round |
FALSE |
| Min. depth of built-in installation box |
38 mm |
| Compatible with Apple HomeKit |
FALSE |
| Compatible with Google Assistant |
FALSE |
| Compatible with Amazon Alexa |
FALSE |
| Metallic colour |
FALSE |
| Colour of switch operator |
White |
| Type of USB power supply |
AC |
| Max. current rating of USB power supply |
2.8 A |
| Number of ports USB-C |
1 |
| Protective contact |
Earthing clips |
| Anti-bacterial treatment |
FALSE |
| For heavy conditions according to VDE |
FALSE |
| UKCA |
da |
