Opis

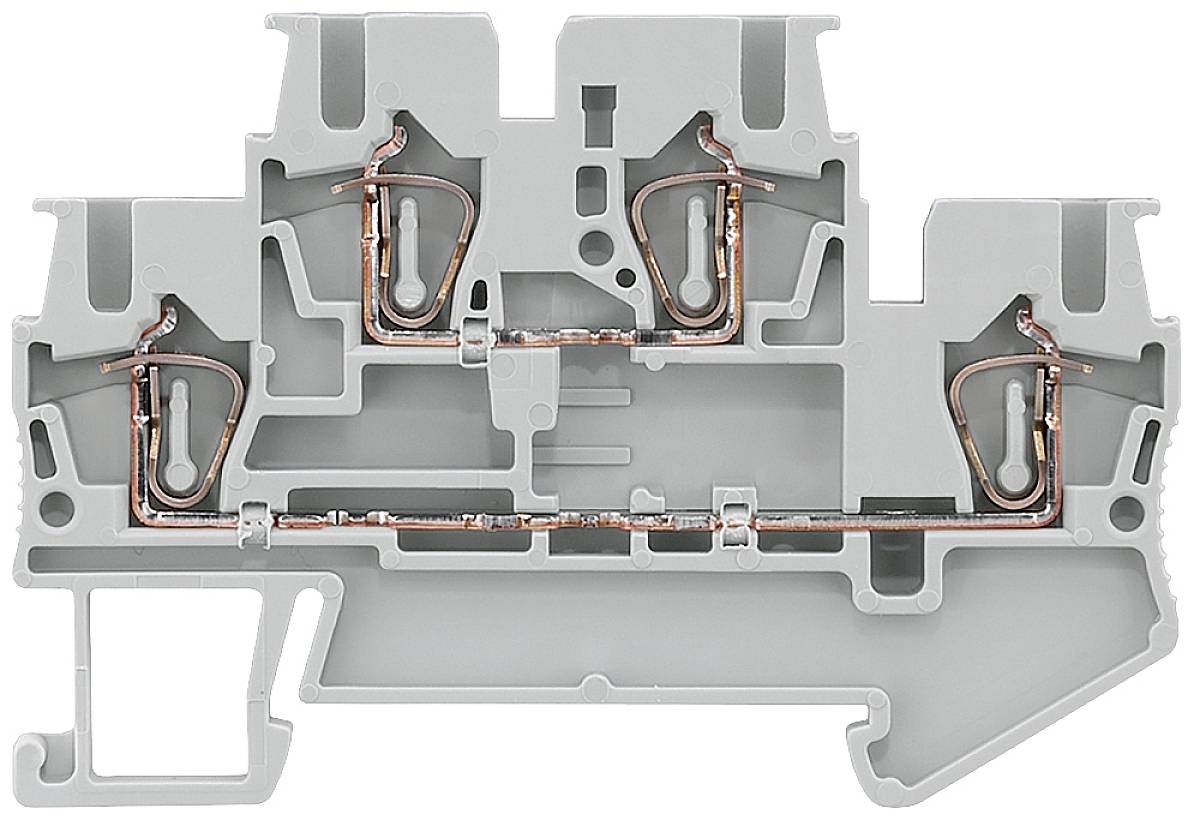

Two-tier terminals with spring-loaded connection, Cross section: 0.08-2.5 mm2, Width: 5.2mm, Color: gray Terminal block connection technology for various industrial applications and modern building installation from Siemens. Regardless of whether you decide on the screw-type, spring-loaded, push-in or quick connection: All of the connection technologies can be freely combined. The labeling and test accessories are standardized and can be used interchangeably. Many applications can be implemented in industry, functional and residential buildings with the terminal blocks from SIEMENS. This gives you access to the right connection technology for every connection system. Key features of the Siemens row terminals: 1. Permanently safe contact. 2. Easy to disconnect connection of electrical connections such as cables and wires. 3. Implementation of a large number of applications. 4. User-friendly and easy installation and connection technology. 5. Comprehensive and standardized accessories. 6. Reliable safety during installation with standard touch protection. 7. Optimized technology for your safety - only from Siemens.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 8WH20200AF00
EAN koda: 4001869347264
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta embalaže |
Piece |
|---|---|
| Vrsta izdelka |
dvonivojska sponka |
| Priključek |
vzmetna sponka |
| Fleksibilen prerez (min.) |
2.5 mm² |
| Fleksibilni prečni prerez (maks.) |
2.5 mm² |
| Togi prerez (min.) |
4 mm² |
| Maks. prečni prerez trdnosti |
4 mm² |
| Širina sponke |
5.2 mm |
| Število vrst |
2 |
| Barva |
siva |
| Nazivni tok |
26 A |
| Nazivni tok - zaokrožen |
26 A |
| Nazivna napetost |
500 V |
| Dolžina odstranjene izolacije (maks.) |
10 mm |
| Proizv. št. delov |
8WH20200AF00 |
| Vsebina |
50 kos |
| Vrsta |
8WH2020-0AF00 |
| Višina |
47.5 mm |
| Dolžina |
67.5 mm |
| Skladnost z RoHS |
Ja |
| Teža |
10 g |
| Razred vnetljivosti |
V0 |
| Mounting method |
DIN rail (top hat rail) 35 mm |
| Colour |
Grey |
| Height |
67.58 mm |
| Depth |
45.9 mm |
| Rated voltage |
500 V |
| Length |
67.5 m |
| Inflammability class of insulation material according to UL94 |
V0 |
| Width/grid dimension |
5.2 mm |
| Height at lowest possible mounting height |
47.5 mm |
| Closing plate required |
FALSE |
| Type of electrical connection 1 |
Spring clamp connection |
| Type of electrical connection 2 |
Spring clamp connection |
| Number of levels |
2 |
| Number of clamp positions per level |
2 |
| Internally connected stages |
FALSE |
| Material insulation body |
Other |
| Rated current In |
22 A |
| Explosion-tested version 'Ex e' |
FALSE |
| UKCA |
da |
