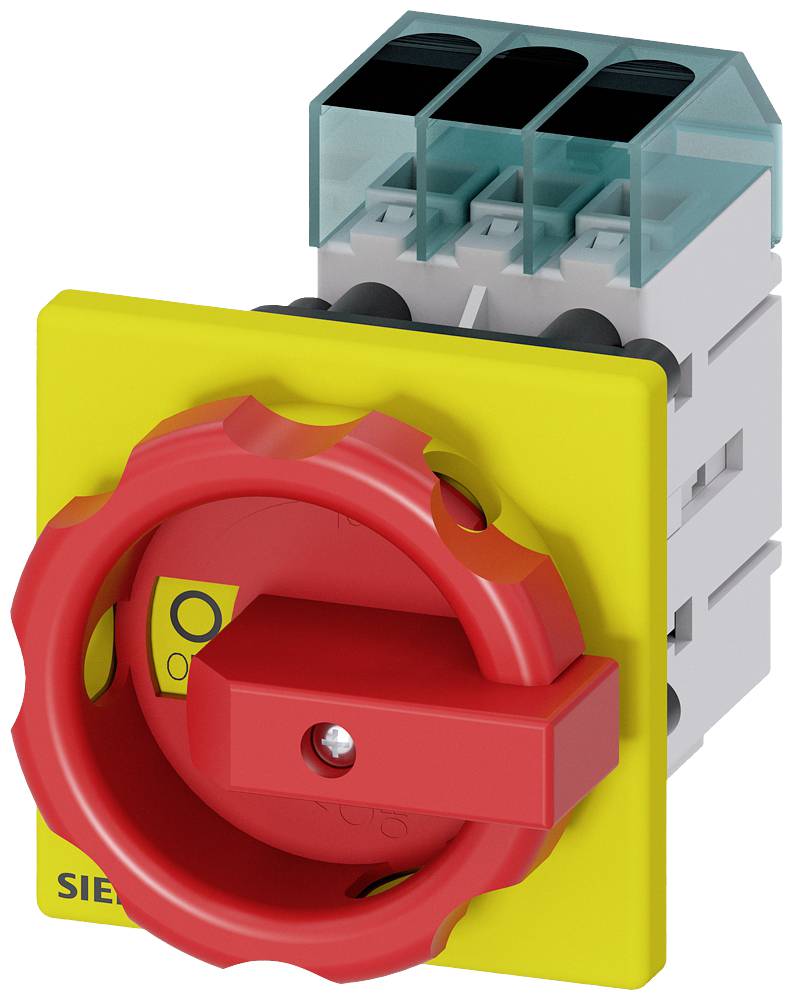

rdeča 16 mm² 25 A Siemens 3LD31540TK53

Blagovna znamka Siemens

(0 ocen)

28,99 EUR

Koda izdelka: 2263624
EAN: 4001869550749
Predvidena dobava:01.10.2026 - 02.10.2026

Opis

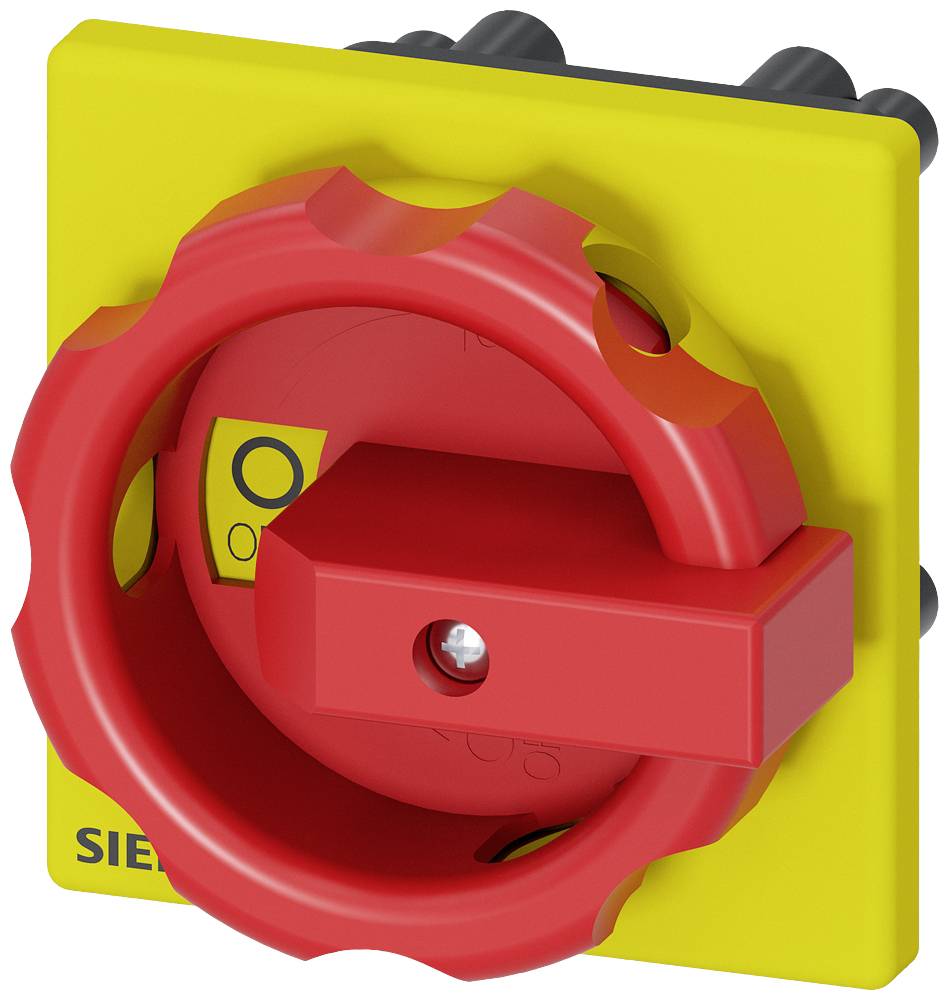

Load disconnector 3LD3, Iu 25 A Main switch 3-pole Rated operating capacity at AC-23 A at 400V 9.0kW Front plate mounting Basic switch with Central hole mounting 22.5mm Toggle drive red / yellow 66x66 mm The 3LD main and emergency off switch for safe disconnection of loads in a wide variety of environments. There are numerous possible applications for the 3LD3 disconnector units. After disconnects from the grid, they ensure safe activation of all of the electrical equipment, thus switch, for example, to three-phase motors, but also air-conditioning and ventilation systems. 3LD3 are also ideal for control panels, in particular for applications in small machines (for example saws, compressors, pumps, concrete mixers, drills, mills, and woodworking machinery) Key features of the Siemens 3LD main and emergency off switches: 1. Modular design, fast and easy mounting of auxiliary switches, N-PE terminal, or 4-pole 2. Versatile thanks to local approvals. 3. One mechanical size for five electrical sizes. 4. Can be used for DC applications. 5. Types of mounting: Front mounting, mounting plate, standard mounting rail. 6. Optimized disconnect from 16 A to 63 A with lockable rotary operating mechanism.

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 3LD31540TK53

EAN koda: 4001869550749

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Tehnični podatki 2263624 rdeča 16 mm² 25 A Siemens 3LD31540TK53

Navodila za uporabo in varnost 2263624 rdeča 16 mm² 25 A Siemens 3LD31540TK53

Tehnični podatki

Obratovalna napetost	690 V/AC
Barva	rdeča
Prečni prerez	16 mm²
Število pinov	3

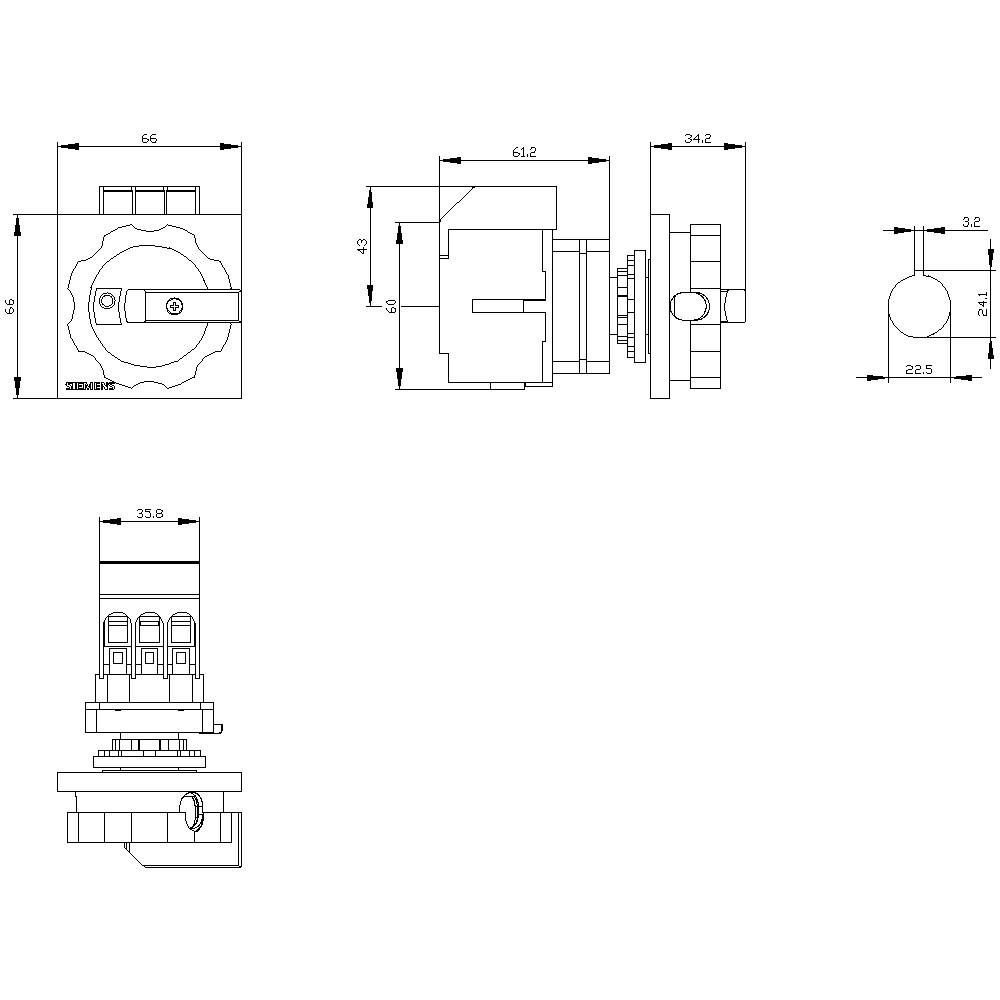

Mere	(Š x V x G) 36 x 60 x 114 mm
Nazivni tok	25 A
Nazivni tok - zaokrožen	25 A
Izvedba	Stikalo za izklop v sili
Širina	36 mm
Višina	60 mm
Globina	114 mm
Rated operation power at AC-3, 400 V	8 kW
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	25 A
Number of poles	3
Degree of protection (IP), front side	IP65
Number of auxiliary contacts as change-over contact	0
Number of switches	1
Interlockable	TRUE
Motor drive integrated	FALSE
Type of electrical connection of main circuit	Frame clamp
Version as emergency stop installation	TRUE
Type of control element	Short rotary handle
Version as main switch	TRUE
Version as safety switch	TRUE
Version as maintenance-/service switch	TRUE
Rated operation power at AC-23, 400 V	10 kW
Rated short-time withstand current lcw	0.5 kA
Colour control element	Red
Suitable for floor mounting	FALSE
Suitable for front mounting 4-hole	FALSE
Suitable for front mounting centre	TRUE
Suitable for distribution board installation	FALSE
Suitable for intermediate mounting	FALSE
Max. rated operation voltage Ue AC	690 V
Motor drive optional	FALSE
Voltage release optional	FALSE
Device construction	Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V	25 A
Version as reversing switch	FALSE
Rated permanent current at AC-23, 400 V	20
Degree of protection (NEMA)	Other
UKCA	da
