Opis

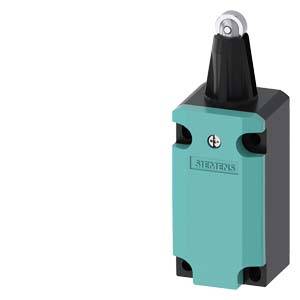

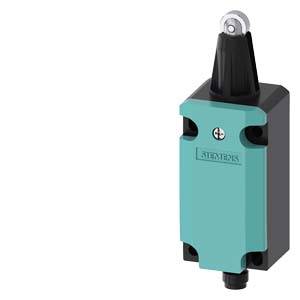

Položaj stikalo, valjčna miza 3SE5112-0CD0
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3SE51120CD02
EAN koda: 4011209692152
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta izdelka |
položajno stikalo |
|---|---|
| Priključek |
vijačni |
| Aktivacija - vrsta |
valj iz legiranega jekla |
| Preklopni tok maks. |
6 A |
| Kontakt |
1 odpiralo |
| Material kontakta |
srebrova zlitina |
| Teža |
365 g |
| Potrditvena moč |
20 N |
| Barva |
večbarvna |
| Min. temperatura |
-25 °C |
| Maks. temperatura |
+85 °C |
| Vrsta zaščite |
IP66 |
| Velikost navoja |
M20 x 1.5 |
| Mehanska življenjska doba |
1.5E7 |
| Električna življenjska doba |
100000 |
| Material |
kovina |
| Širina |
40 mm |
| Vrsta |
3SE5112-0CD02 |
| Vsebina |
1 kos |

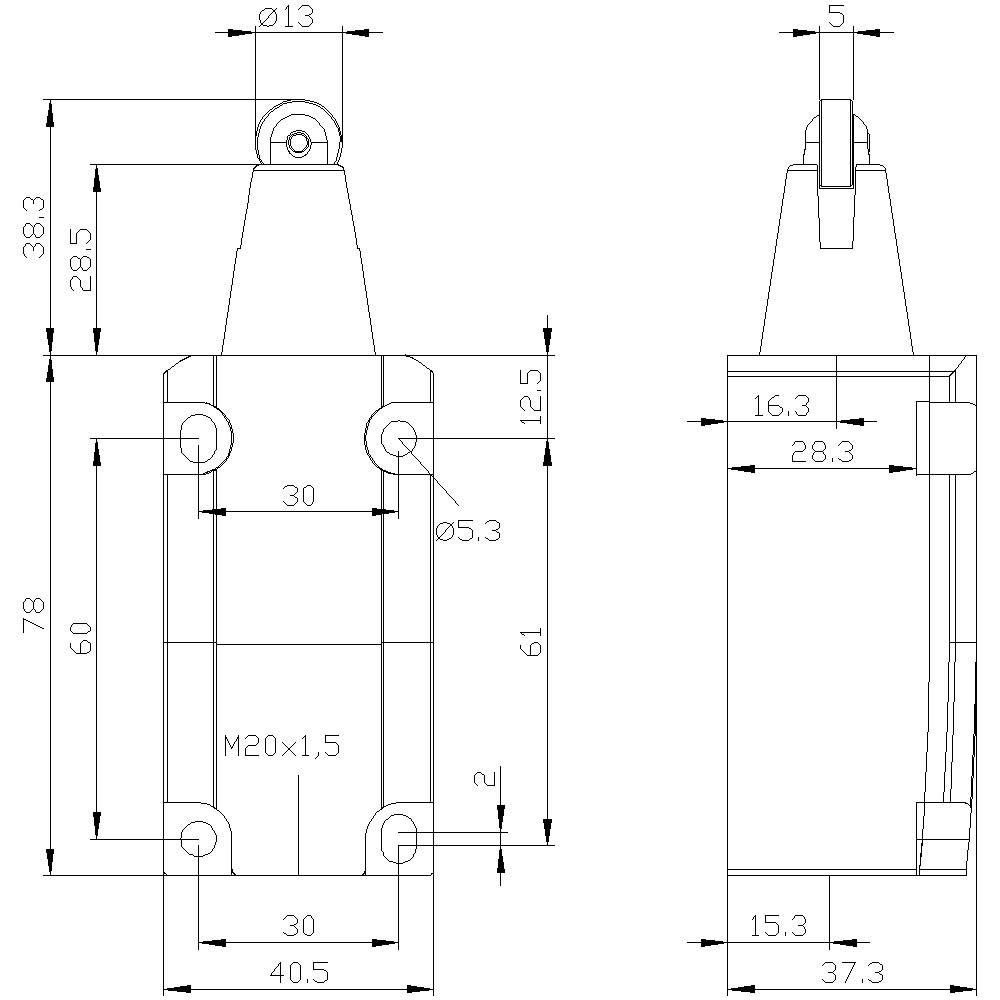

| Mere |
(D x Š) 116.3 mm x 40 mm |
| Skladnost z RoHS |
Ja |
| Dolžina |
116.3 mm |
| Globina |
37.3 mm |
| Switching function |
Quick-break switch |
| Housing material |
Metal |
| Suitable for safety functions |
TRUE |
| Coating housing |
Lacquered |
| With status indication |
FALSE |
| Type of interface for safety communication |
None |
| Explosion safety category for gas |
None |
| Explosion safety category for dust |
None |
| Construction type housing |
Cuboid |
| Degree of protection (IP) |
IP66/IP67 |
| Forced opening |
TRUE |
| Number of safety auxiliary contacts |
1 |
| Type of control element |
Roller cam |
| Type of interface |
None |
| Output electronic |
FALSE |
| Rated operation current Ie at AC-15, 125 V |
6 A |
| Rated operation current Ie at AC-15, 24 V |
6 A |
| Rated operation current Ie at DC-13, 125 V |
0.55 A |
| Rated operation current Ie at DC-13, 24 V |
3 A |
| Width sensor |
40 mm |
| Height of sensor |
37.3 mm |
| Length of sensor |
116.3 mm |
| Switching function latching |
FALSE |
| Ambient temperature during operating |
-25-85 °C |
| Number of contacts as normally closed contact |
1 |
| Number of contacts as normally open contact |
1 |
| Number of contacts as change-over contact |
0 |
| Alignment of the control element |
Roller cam straight |
| Degree of protection (NEMA) |
12 |
| UKCA |
da |
