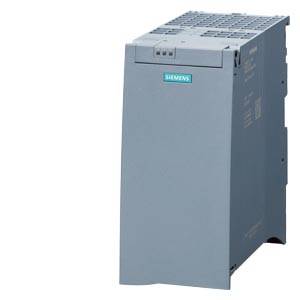

Siemens 6GK7543-1MX00-0XE0 razširitveni modul za PLC-krmilnik 28.8 V

Blagovna znamka Siemens

(0 ocen)

2.935,00 EUR

Koda izdelka: 1745125
EAN: 4047622276792
Predvidena dobava:02.11.2026 - 09.11.2026

Opis

Komunikacijski modul TIM 1531 IRC za SIMATIC S7-1500, S7-400, S7-300 s SINAUT ST7, DNP3 in IEC 60870-5-101/104 s tremi vmesniki RJ45 za komunikacijo prek omrežij, ki temeljijo na IP (WAN / LAN) in enim RS-232/RS-485 vmesnik za komunikacijo prek klasičnih omrežij WAN

Besedilo je strojno prevedeno.

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 6GK75431MX000XE0

EAN koda: 4047622276792

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Tehnični podatki 1745125 Siemens 6GK7543-1MX00-0XE0 razširitveni modul za PLC-krmilnik 28.8 V

Navodila za uporabo in varnost 1745125 Siemens 6GK7543-1MX00-0XE0 razširitveni modul za PLC-krmilnik 28.8 V

Tehnični podatki

Vrsta izdelka	razširitveni modul za PLC-krmilnik
Delovna napetost	28.8 V
Vrsta zaščite	IP20
Vrsta	6GK7543-1MX00-0XE0
Min. temperatura okolice	0 °C
Maks. temperatura okolice	+70 °C
Proizv. št. delov	6GK75431MX000XE0
Način montaže (podrobnosti)	Montaža S7-1500 železniški
Mere	(D x Š) 129 mm x 70 mm
Širina	70 mm
Dolžina	129 mm
Serija	SIMATIC
Width	70
Height	147 mm
Depth	129 mm
Suitable for safety functions	FALSE
Supporting protocol for LON	FALSE
Number of HW-interfaces industrial Ethernet	3
Number of HW-interfaces RS-232	1
Number of HW-interfaces RS-422	0
Number of HW-interfaces RS-485	1
Number of HW-interfaces serial TTY	0
Number of HW-interfaces USB	0
Number of HW-interfaces parallel	0
Number of HW-interfaces other	0
With optical interface	FALSE
Supporting protocol for TCP/IP	TRUE
Supporting protocol for ASI	FALSE
Supporting protocol for PROFIBUS	FALSE
Supporting protocol for CAN	FALSE
Supporting protocol for INTERBUS	FALSE
Supporting protocol for KNX	FALSE
Supporting protocol for Modbus	FALSE
Supporting protocol for Data-Highway	FALSE
Supporting protocol for DeviceNet	FALSE
Supporting protocol for SUCONET	FALSE
Supporting protocol for other bus systems	TRUE
Redundancy	FALSE
Transmission rate	100000000 kBit/s
With potential separation	FALSE
Explosion safety category for gas	None
Explosion safety category for dust	None
Appendant operation agent (Ex ia)	FALSE
Appendant operation agent (Ex ib)	FALSE
Supporting protocol for SERCOS	FALSE
Supporting protocol for INTERBUS-Safety	FALSE
Number of interfaces PROFINET	0
Number of HW-interfaces wireless	0
Radio standard Bluetooth	FALSE
Radio standard WLAN 802.11	FALSE
IO link master	FALSE
Performance level according to EN ISO 13849-1	None
Supporting protocol for AS-Interface Safety at Work	FALSE
Supporting protocol for DeviceNet Safety	FALSE
Supporting protocol for EtherNet/IP	FALSE
Supporting protocol for Foundation Fieldbus	FALSE
Supporting protocol for PROFINET CBA	FALSE
Supporting protocol for PROFINET IO	FALSE
Supporting protocol for PROFIsafe	FALSE
Supporting protocol for SafetyBUS p	FALSE
Type of data transmission	Other
SIL according to IEC 61508	None
UKCA	da
