črna 3-polni 35 mm² 63 A 690 V/AC Siemens 3LD25300TK11

Blagovna znamka Siemens

(0 ocen)

59,99 EUR

Opis

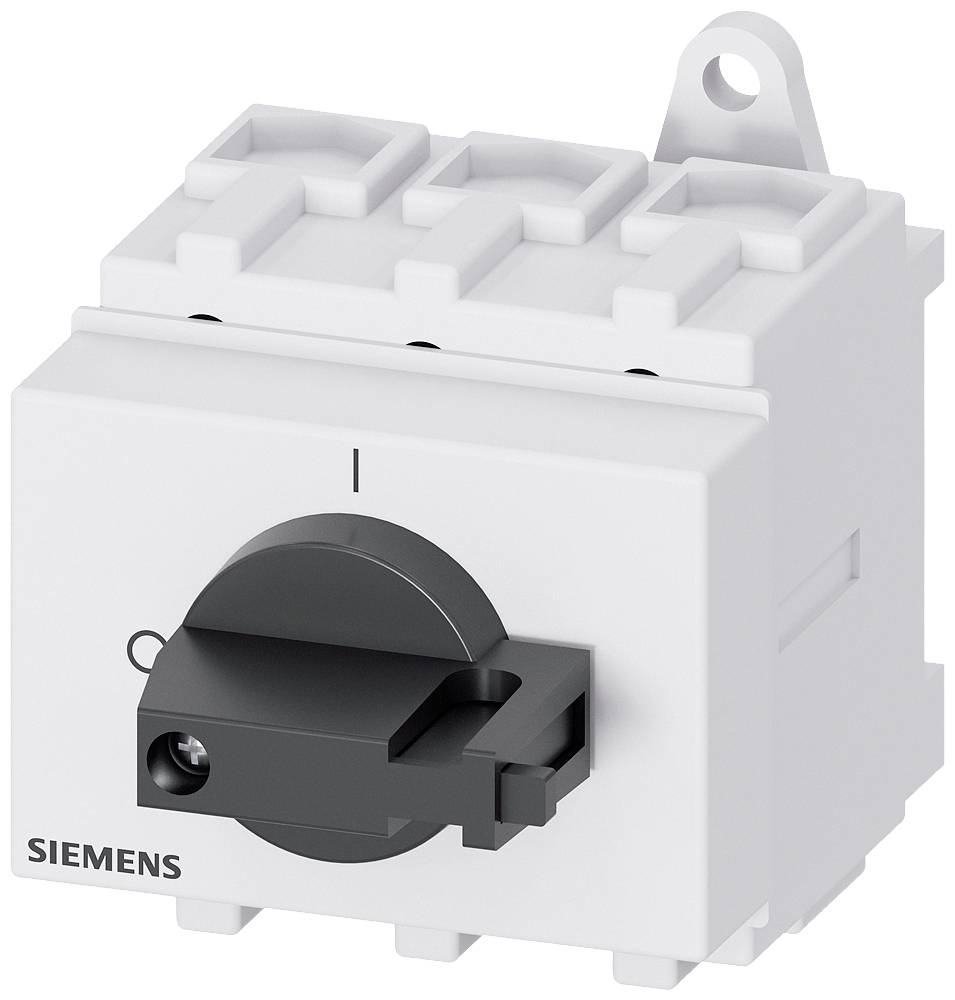

Glavno stikalo 3p. 63A 22kW / 400V 3LD2530-0TK

Besedilo je strojno prevedeno.

Proizvajalčeva koda: 3LD25300TK11

EAN koda: 4011209403444

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Obratovalna napetost	690 V/AC
Nazivna napetost	690 V/AC
Barva	črna
Prečni prerez	35 mm²
Število pinov	3

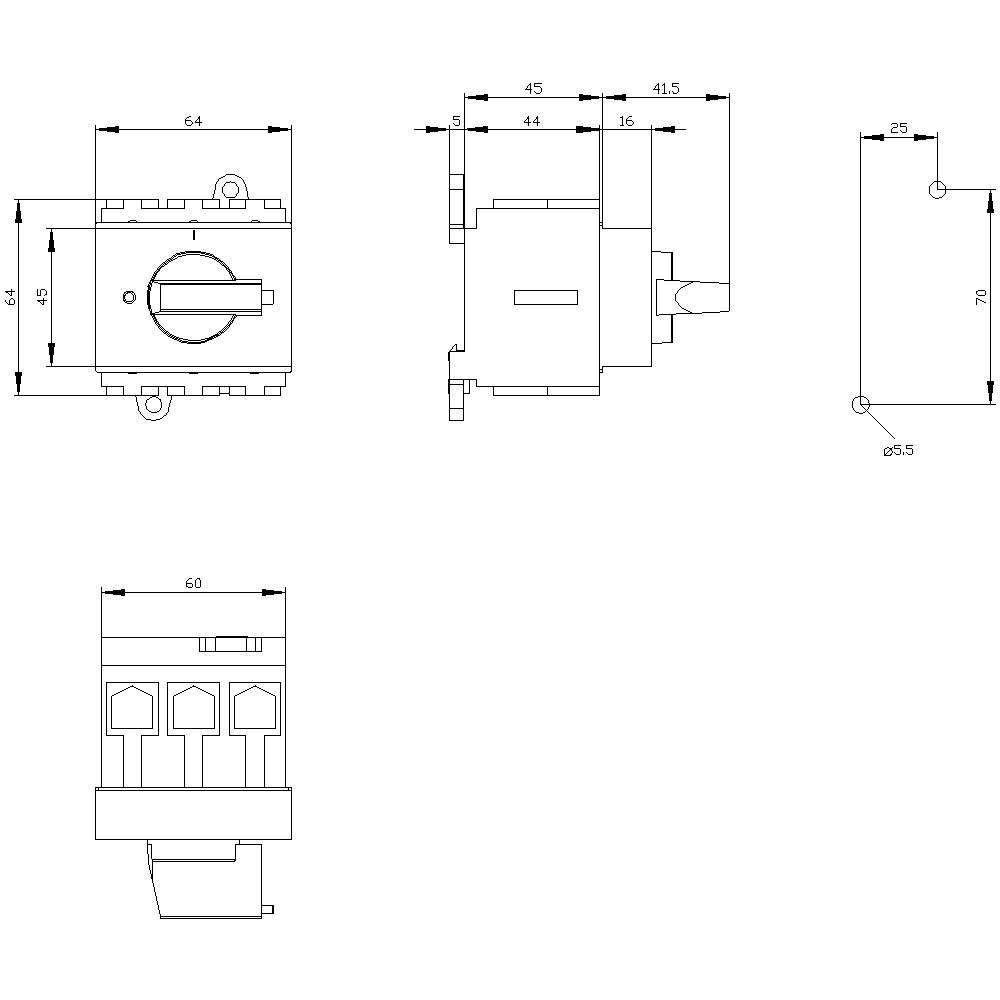

Mere	(Š x V x G) 64 x 64 x 93 mm
Nazivni tok	63 A
Nazivni tok - zaokrožen	63 A
Izvedba	Glavno stikalo
Širina	64 mm
Višina	64 mm
Globina	93 mm
Rated operation power at AC-3, 400 V	19 kW
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	63 A
Number of poles	3
Degree of protection (IP), front side	IP40
Number of auxiliary contacts as change-over contact	0
Number of switches	1
Interlockable	TRUE
Motor drive integrated	FALSE
Type of electrical connection of main circuit	Frame clamp
Version as emergency stop installation	FALSE
Type of control element	Wing knob
Version as main switch	TRUE
Version as safety switch	TRUE
Version as maintenance-/service switch	TRUE
Rated operation power at AC-23, 400 V	22 kW
Rated short-time withstand current lcw	1.26 kA
Colour control element	Black
Suitable for floor mounting	TRUE
Suitable for front mounting 4-hole	FALSE
Suitable for front mounting centre	FALSE
Suitable for distribution board installation	TRUE
Suitable for intermediate mounting	TRUE
Max. rated operation voltage Ue AC	690 V
Motor drive optional	FALSE
Voltage release optional	FALSE
Device construction	Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V	63 A
Version as reversing switch	FALSE
Rated permanent current at AC-23, 400 V	43
Degree of protection (NEMA)	Other
UKCA	da
