črna 3-polni 35 mm² 63 A 690 V/AC Siemens 3LD25040TK51

Blagovna znamka Siemens

(0 ocen)

83,99 EUR

Koda izdelka: 1744162
EAN: 4011209403321
Predvidena dobava:01.10.2026 - 02.10.2026

Opis

Siemens 3LD2504-0TK51. AC vhodna frekvenca: 50/60, nazivni tokovni izhod: 63 A, preklopna zmogljivost: 1260 A. Barva izdelka: črna. Širina: 90 mm, globina: 110,5 mm, višina: 106 mm

Besedilo je strojno prevedeno.

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 3LD25040TK51

EAN koda: 4011209403321

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Tehnični podatki 1744162 črna 3-polni 35 mm² 63 A 690 V/AC Siemens 3LD25040TK51

Navodila za uporabo in varnost 1744162 črna 3-polni 35 mm² 63 A 690 V/AC Siemens 3LD25040TK51

Tehnični podatki

Obratovalna napetost	690 V/AC
Nazivna napetost	690 V/AC
Barva	črna
Prečni prerez	35 mm²
Število pinov	3

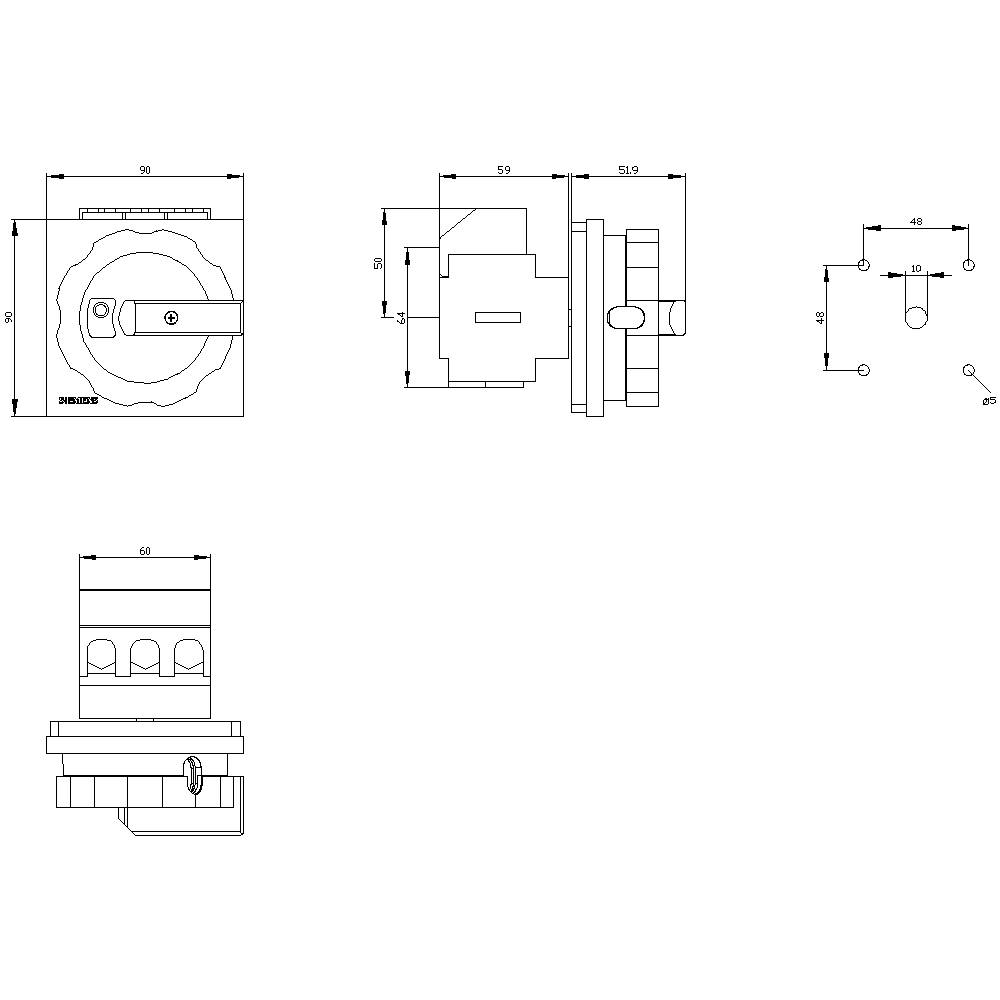

Mere	(Š x V x G) 90 x 106 x 110.5 mm
Nazivni tok	63 A
Nazivni tok - zaokrožen	63 A
Izvedba	Glavno stikalo
Širina	90 mm
Višina	106 mm
Globina	110.5 mm
Rated operation power at AC-3, 400 V	19 kW
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	63 A
Number of poles	3
Degree of protection (IP), front side	IP65
Number of auxiliary contacts as change-over contact	0
Number of switches	1
Interlockable	TRUE
Motor drive integrated	FALSE
Type of electrical connection of main circuit	Frame clamp
Version as emergency stop installation	FALSE
Type of control element	Short rotary handle
Version as main switch	TRUE
Version as safety switch	TRUE
Version as maintenance-/service switch	TRUE
Rated operation power at AC-23, 400 V	22 kW
Rated short-time withstand current lcw	1.26 kA
Colour control element	Black
Suitable for floor mounting	FALSE
Suitable for front mounting 4-hole	TRUE
Suitable for front mounting centre	FALSE
Suitable for distribution board installation	FALSE
Suitable for intermediate mounting	FALSE
Max. rated operation voltage Ue AC	690 V
Motor drive optional	FALSE
Voltage release optional	FALSE
Device construction	Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V	63 A
Version as reversing switch	FALSE
Rated permanent current at AC-23, 400 V	43
Degree of protection (NEMA)	Other
UKCA	da
