rdeča, rumena 3-polni 16 mm² 32 A 690 V/AC Siemens 3LD22030TK53

Blagovna znamka Siemens

(0 ocen)

51,99 EUR

Koda izdelka: 1743135
EAN: 4011209402911
Predvidena dobava:01.10.2026 - 02.10.2026

Opis

Siemens 3LD2203-0TK53. AC vhodna frekvenca: 50/60 Hz, nazivni tokovni izhod: 32 A, preklopna zmogljivost: 640 A. Barva izdelka: rdeča, rumena. Širina: 67 mm, Globina: 92,5 mm, Višina: 83 mm

Besedilo je strojno prevedeno.

Varnost izdelkov (GPSR)

Proizvajalčeva koda: 3LD22030TK53

EAN koda: 4011209402911

Registrirana blagovna znamka: Siemens

Ime proizvajalca: Siemens AG

Naslov proizvajalca: Siemenspromenade 2

Poštna številka proizvajalca: 91058

Kraj proizvajalca: Erlangen

Država proizvajalca: Germany

Telefon proizvajalca: +498938035491

Elektronski kontakt proizvajalca: https://www.siemens.com/

Kontakt odgovorne osebe za varnost: [email protected]

Država odgovorne osebe za varnost: Nemčija

Dokumenti

Tehnični podatki 1743135 rdeča, rumena 3-polni 16 mm² 32 A 690 V/AC Siemens 3LD22030TK53

Navodila za uporabo in varnost 1743135 rdeča, rumena 3-polni 16 mm² 32 A 690 V/AC Siemens 3LD22030TK53

Tehnični podatki

Obratovalna napetost	690 V/AC
Nazivna napetost	690 V/AC
Barva	rdeča rumena
Prečni prerez	16 mm²
Število pinov	3

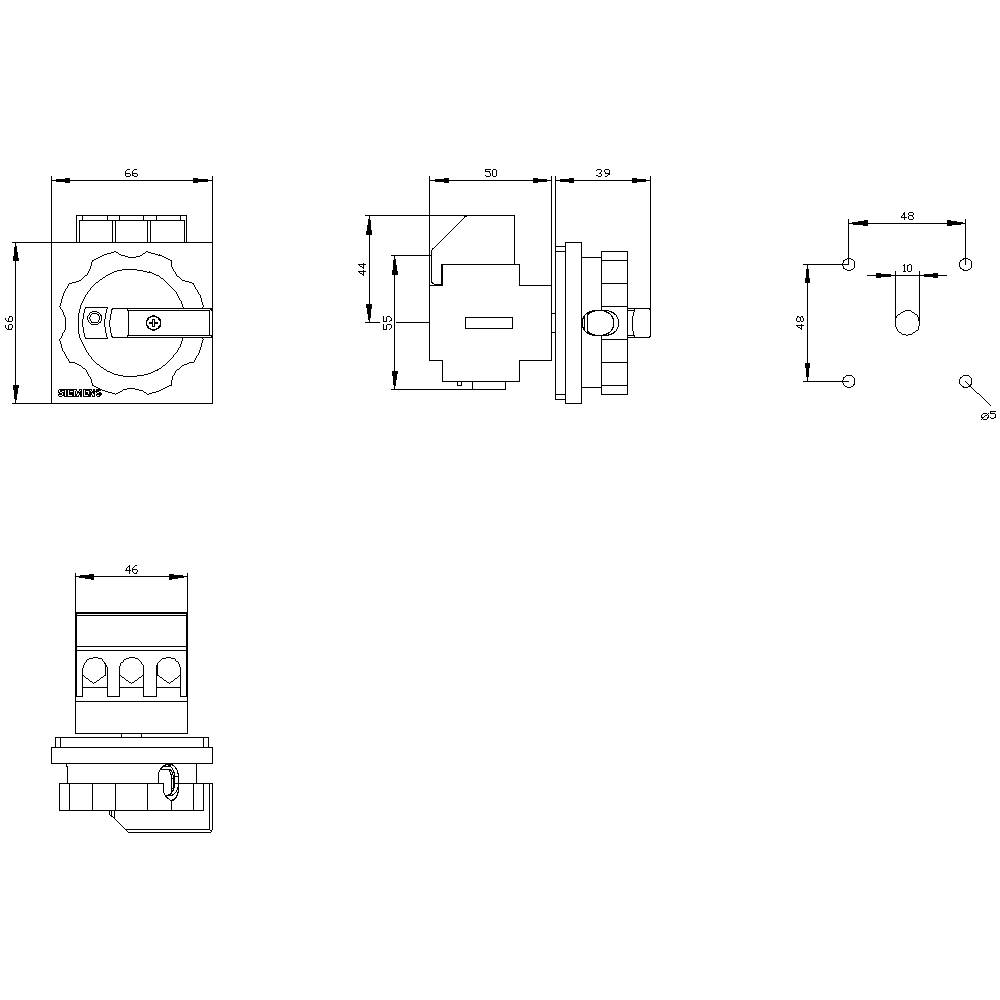

Mere	(Š x V x G) 67 x 83 x 92.5 mm
Nazivni tok	32 A
Nazivni tok - zaokrožen	32 A
Izvedba	Stikalo za izklop v sili
Širina	67 mm
Višina	83 mm
Globina	92.5 mm
Rated operation power at AC-3, 400 V	10 kW
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
Rated permanent current Iu	32 A
Number of poles	3
Degree of protection (IP), front side	IP65
Number of auxiliary contacts as change-over contact	0
Number of switches	1
Interlockable	TRUE
Motor drive integrated	FALSE
Type of electrical connection of main circuit	Frame clamp
Version as emergency stop installation	TRUE
Type of control element	Short rotary handle
Version as main switch	TRUE
Version as safety switch	TRUE
Version as maintenance-/service switch	TRUE
Rated operation power at AC-23, 400 V	12 kW
Rated short-time withstand current lcw	0.64 kA
Colour control element	Red
Suitable for floor mounting	FALSE
Suitable for front mounting 4-hole	TRUE
Suitable for front mounting centre	FALSE
Suitable for distribution board installation	FALSE
Suitable for intermediate mounting	FALSE
Max. rated operation voltage Ue AC	690 V
Motor drive optional	FALSE
Voltage release optional	FALSE
Device construction	Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V	32 A
Version as reversing switch	FALSE
Rated permanent current at AC-23, 400 V	22
Degree of protection (NEMA)	Other
UKCA	ni pomembno
