Opis
Siemens 3LD2103-0TK53. AC vhodna frekvenca: 50/60 Hz, nazivni tokovni izhod: 25 A, preklopna zmogljivost: 640 A. Barva izdelka: rdeča, rumena. Širina: 67 mm, Globina: 92,5 mm, Višina: 84 mm
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3LD21030TK53
EAN koda: 4011209402898
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki 1742951 rdeča, rumena 3-polni 16 mm² 25 A 690 V/AC Siemens 3LD21030TK53
Tehnični podatki 1742951 rdeča, rumena 3-polni 16 mm² 25 A 690 V/AC Siemens 3LD21030TK53
Tehnični podatki 1742951 rdeča, rumena 3-polni 16 mm² 25 A 690 V/AC Siemens 3LD21030TK53
Tehnični podatki 1742951 rdeča, rumena 3-polni 16 mm² 25 A 690 V/AC Siemens 3LD21030TK53
Tehnični podatki 1742951 rdeča, rumena 3-polni 16 mm² 25 A 690 V/AC Siemens 3LD21030TK53
Tehnični podatki 1742951 rdeča, rumena 3-polni 16 mm² 25 A 690 V/AC Siemens 3LD21030TK53
Tehnični podatki 1742951 rdeča, rumena 3-polni 16 mm² 25 A 690 V/AC Siemens 3LD21030TK53
Tehnični podatki
| Obratovalna napetost |
690 V/AC |
|---|---|
| Nazivna napetost |
690 V/AC |
| Barva |
rdeča |
| Prečni prerez |
16 mm² |
| Število pinov |
3 |

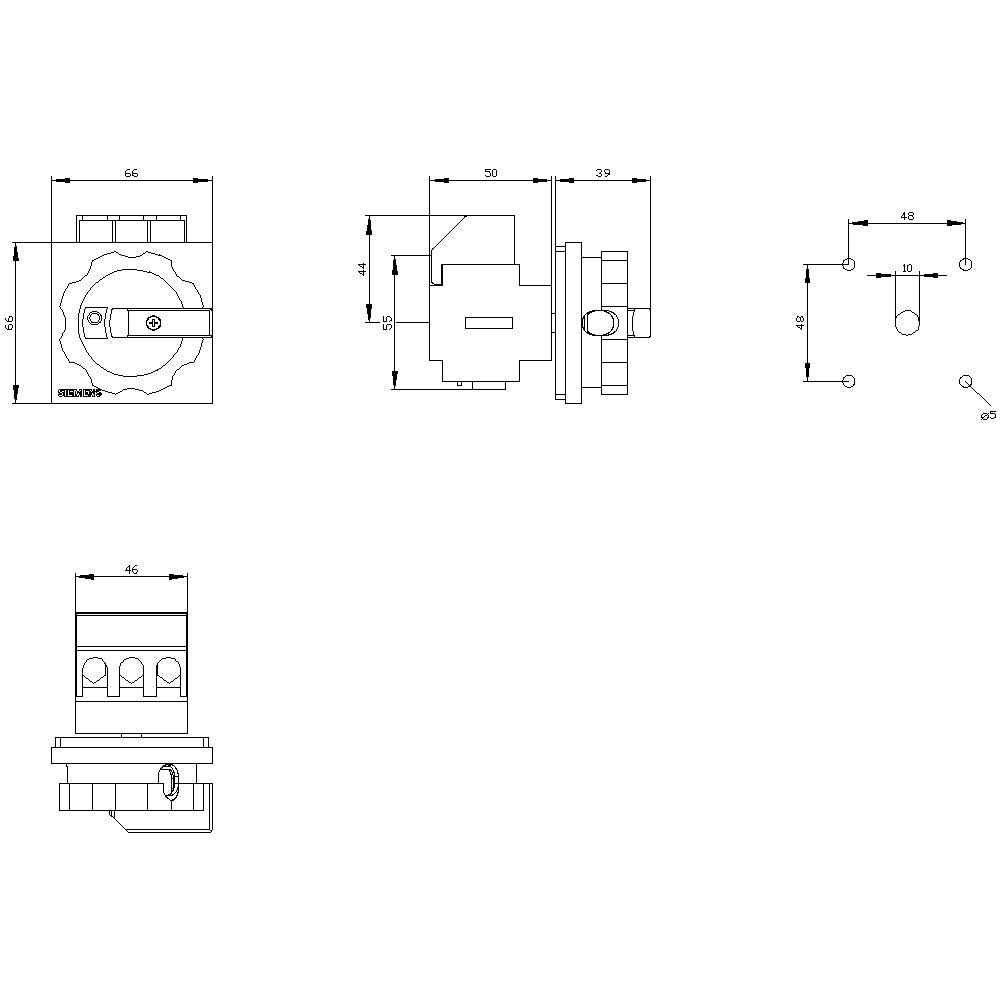

| Mere |
(Š x V x G) 67 x 84 x 92.5 mm |
| Nazivni tok |
25 A |
| Nazivni tok - zaokrožen |
25 A |
| Izvedba |
Stikalo za izklop v sili |
| Širina |
67 mm |
| Višina |
84 mm |
| Globina |
92.5 mm |
| Rated operation power at AC-3, 400 V |
8 kW |
| Number of auxiliary contacts as normally open contact |
0 |
| Number of auxiliary contacts as normally closed contact |
0 |
| Rated permanent current Iu |
25 A |
| Number of poles |
3 |
| Degree of protection (IP), front side |
IP65 |
| Number of auxiliary contacts as change-over contact |
0 |
| Number of switches |
1 |
| Interlockable |
TRUE |
| Motor drive integrated |
FALSE |
| Type of electrical connection of main circuit |
Frame clamp |
| Version as emergency stop installation |
TRUE |
| Type of control element |
Short rotary handle |
| Version as main switch |
TRUE |
| Version as safety switch |
TRUE |
| Version as maintenance-/service switch |
TRUE |
| Rated operation power at AC-23, 400 V |
10 kW |
| Rated short-time withstand current lcw |
0.64 kA |
| Colour control element |
Red |
| Suitable for floor mounting |
FALSE |
| Suitable for front mounting 4-hole |
TRUE |
| Suitable for front mounting centre |
FALSE |
| Suitable for distribution board installation |
FALSE |
| Suitable for intermediate mounting |
FALSE |
| Max. rated operation voltage Ue AC |
690 V |
| Motor drive optional |
FALSE |
| Voltage release optional |
FALSE |
| Device construction |
Built-in device fixed built-in technique |
| Rated permanent current at AC-21, 400 V |
25 A |
| Version as reversing switch |
FALSE |
| Rated permanent current at AC-23, 400 V |
20 |
| Degree of protection (NEMA) |
Other |
| UKCA |
ni pomembno |
