Opis
Mehki zaganjalnik Sirius 17.6A 3RW3018-1BB04
Besedilo je strojno prevedeno.
Navodila za uporabo
Tehnični podatki
| Izvedba |
Vijačni priključek |
|---|---|
| Proizv. št. delov |
3RW30181BB04 |
| Nazivni tok |
17.6 A |
| Nazivni tok - zaokrožen |
17.6 A |
| Vrsta |
3RW3018-1BB04 |

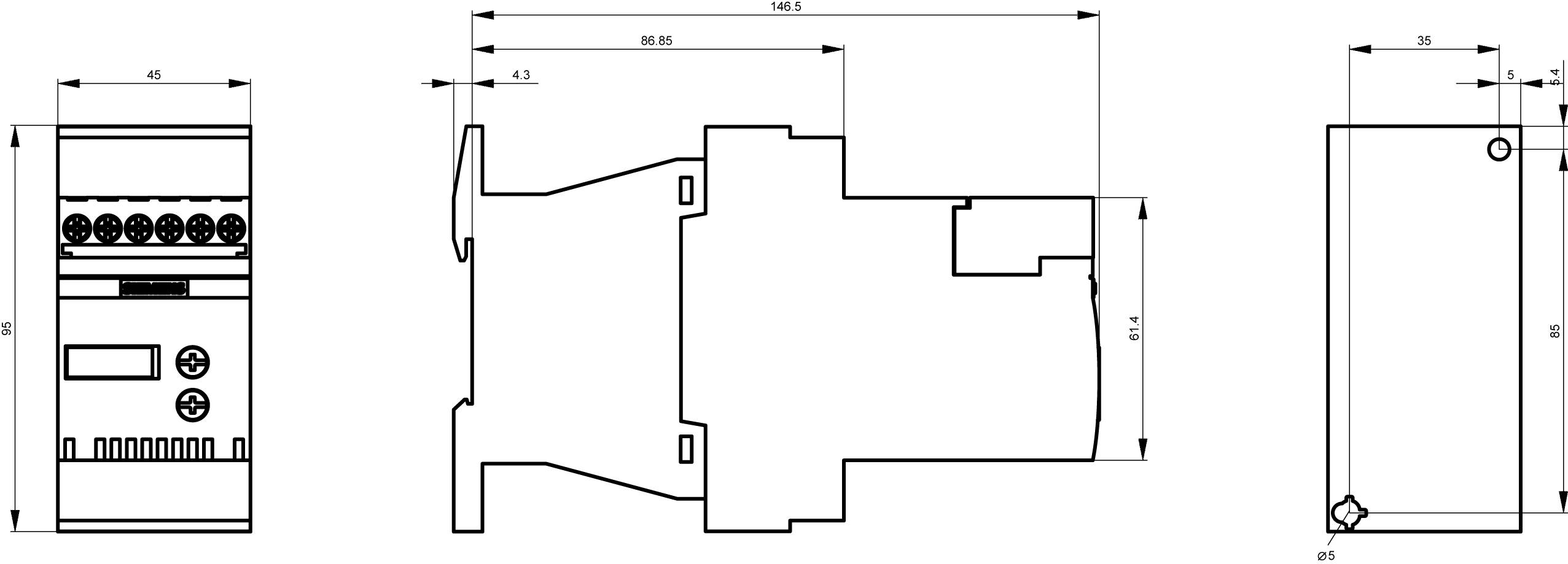

| Mere |
(Š x V x G) 45 x 95 x 150 mm |
| Globina |
150 mm |
| Višina |
95 mm |
| Širina |
45 mm |
| Nazivna napetost |
480 V |
| Moč motorja pri 400 V |
7.5 kW |
| Maks. temperatura |
+60 °C |
| Min. temperatura |
-25 °C |
| Degree of protection (IP) |
IP20 |
| Rated operation current Ie at 40 °C Tu |
17.6 A |
| Rated power three-phase motor, inline, at 230 V |
4 kW |
| Rated power three-phase motor, inline, at 400 V |
7.5 kW |
| Rated surrounding temperature without derating |
40 °C |
| Integrated motor overload protection |
FALSE |
| Voltage type for actuating |
AC/DC |
| Vrsta izdelka |
mehki zaganjalnik |
