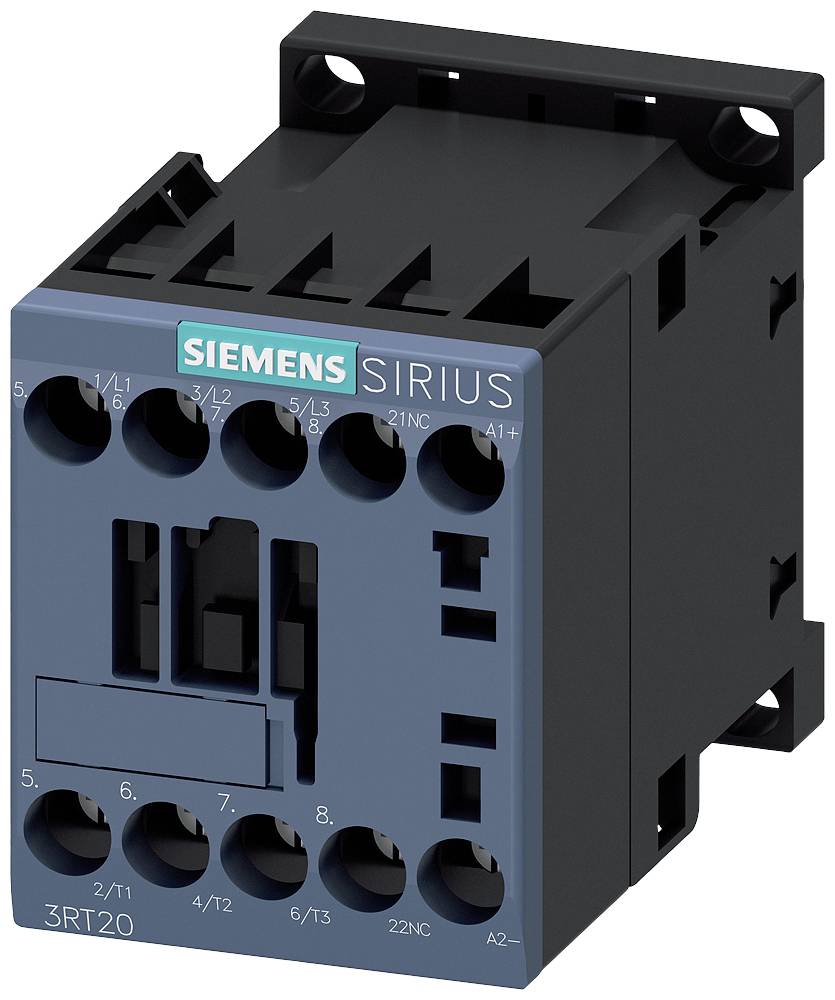

Kontaktor 1 kos 3RT2018-1BB41 Siemens 3 zapiralni 7.5 kW 24 V/DC 16 A s pomožnim kontaktom

Blagovna znamka Siemens
(0 ocen)
134,99 EUR
  • Koda izdelka: 1431091
  • EAN: 4011209784093
  • Zaloga: 13 kosov na zalogi.
  • Predvidena dobava:03.06.2024 - 06.06.2024

Opis

Power contactor, AC-3 16 A, 7.5 kW / 400 V 1 NO, 24 V DC 3-pole, Size S00 screw terminals Power contactor SIRIUS 3RT2 for switching motors.
The 3RT2 contactors are part of the modular SIRIUS system with its optimally coordinated products. They offer convincing performance from a compact design with high contact reliability. They can be combined with a variety of other components in the load feeder. Many of the device combinations have been factory tested. The contactors offer the best connection to the automation level for every application (parallel, via ASi or IO-Link): Integrated auxiliary switches reduce the complexity of your design. The front-panel terminals simplify the wiring. The 3RT2 contactors are climate-resistant, approved for worldwide use (e.g. IEC and UL/CSA) and are IE3/IE4-ready.
They are available in various sizes and in a wide performance range with AC and DC operation. In addition to screw terminals, all the devices are also available with spring-type terminals for fast, maintenance-free and vibration-proof connection.

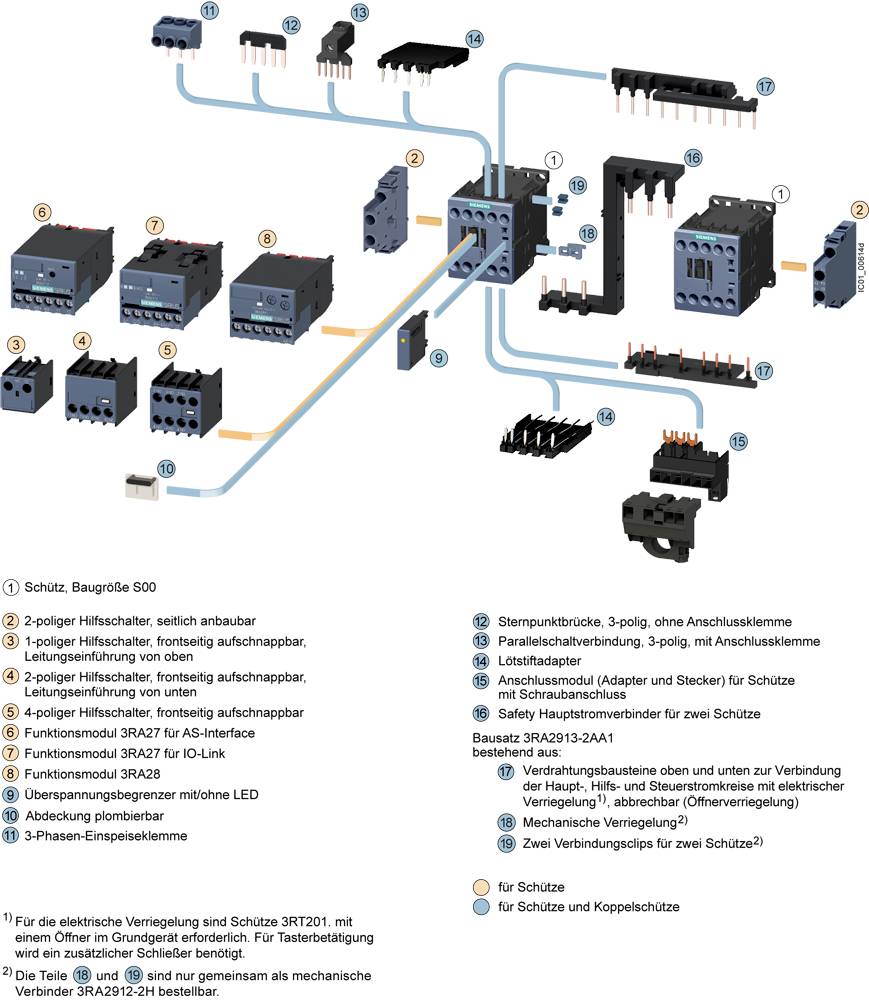

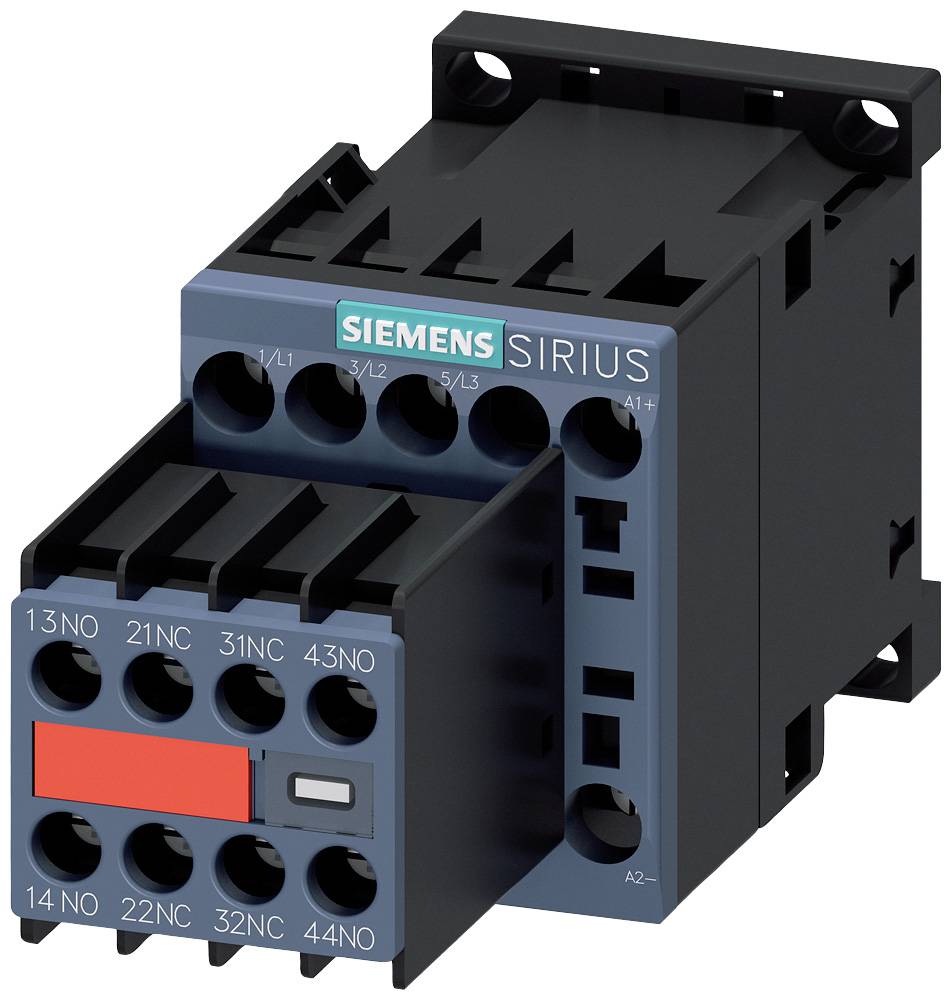

The comprehensive range of accessories, such as auxiliary switches, auxiliary releases etc. is standardized for all sizes. The available link modules, function modules and the SIRIUS 3RV29 infeed system considerably reduce the wiring expense.
The 3RT2 power contactors replace the well-proven 3RT1 series (up to 55 kW).
Simple, efficient and always up to date - SIRIUS modular system.

Dobava vključuje


Kontaktor 1 kos 3RT2018-1BB41 Siemens 3 zapiralni 7.5 kW 24 V/DC 16 A s pomožnim kontaktom

Navodila za uporabo


Tehnični podatki 1431091 Kontaktor 1 kos 3RT2018-1BB41 Siemens 3 zapiralni 7.5 kW 24 V/DC 16 A s pomožnim kontaktom

Tehnični podatki

Vrsta

3RT2018-1BB41

Velikost

S00

Število polov

3-polni

Kontakt

3 zapiralo

Vrsta pomožnega kontakta

1 zapiralo

Nazivna napetost

24 V/DC

Preklopna napetost (maks.)

400 V/AC

Bremenski tok

16 A

Moč

7.5 kW

Značilnosti

s pomožnim kontaktom

Namestitev

din-letev

Priključek

vijačne sponke

Mehanska življenjska doba

3.0E7

Vrsta zaščite

IP20

Min. temperatura

-25 °C

Maks. temperatura

+60 °C

Širina

45 mm

Višina

58 mm

Globina

73 mm

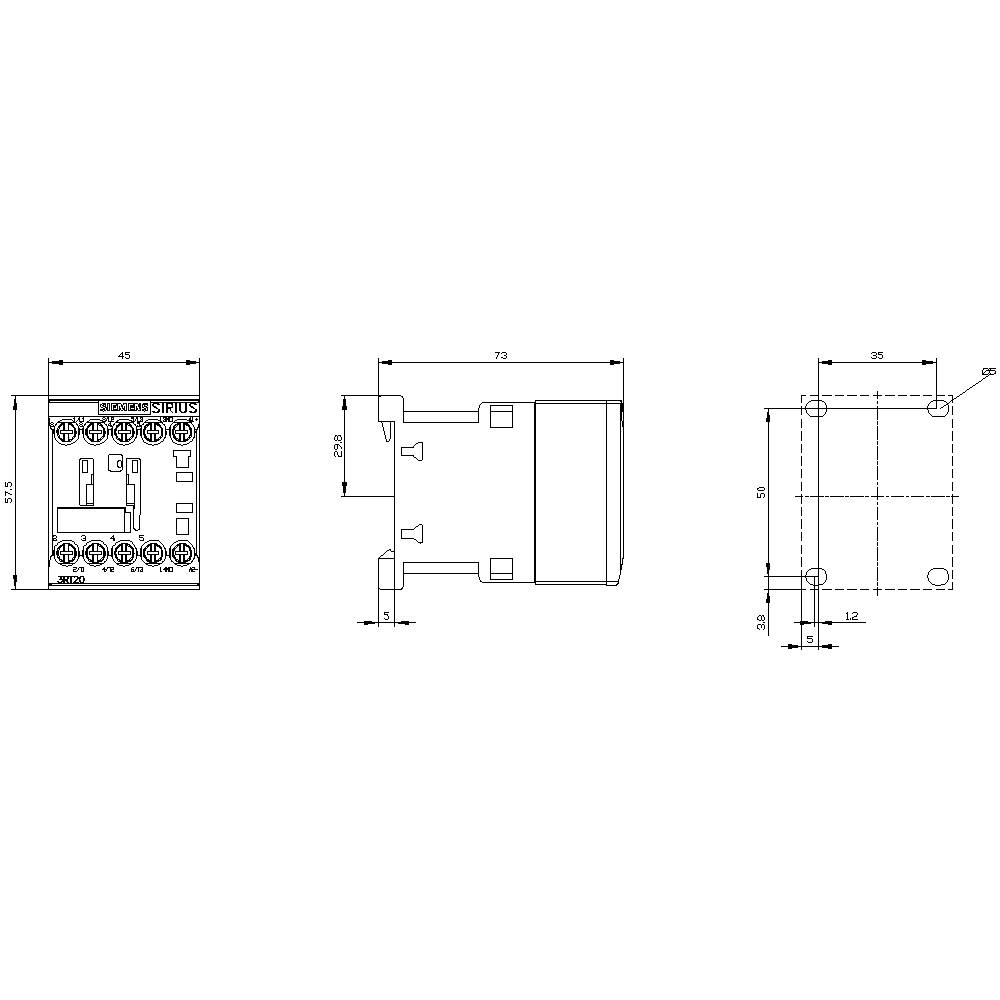

Mere

(Š x V x G) 45 x 58 x 73 mm

Vsebina

1 kos

Skladnost z RoHS

Ja

Teža

0.29

Modular version

TRUE

Rated operation power at AC-3, 400 V

7.5 kW

Number of normally open contacts as main contact

3

Number of auxiliary contacts as normally open contact

1

Rated operation current Ie at AC-3, 400 V

16 A

Rated operation current Ie at AC-1, 400 V

22 A

Type of electrical connection of main circuit

Screw connection

Voltage type for actuating

DC

Rated operation current Ie at AC-4, 400 V

11.5 A

Vrsta izdelka

kontaktor
