Opis

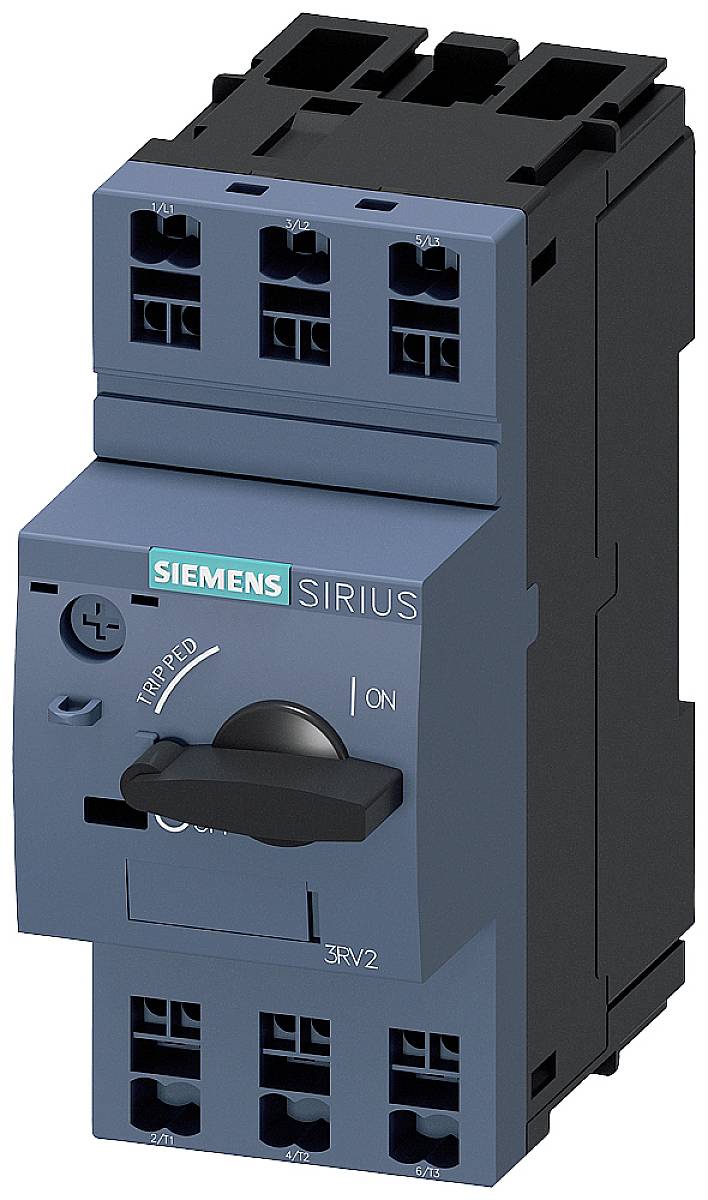

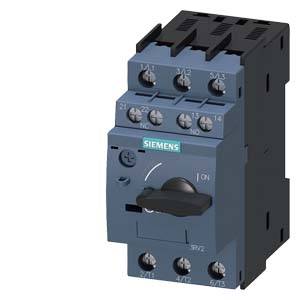

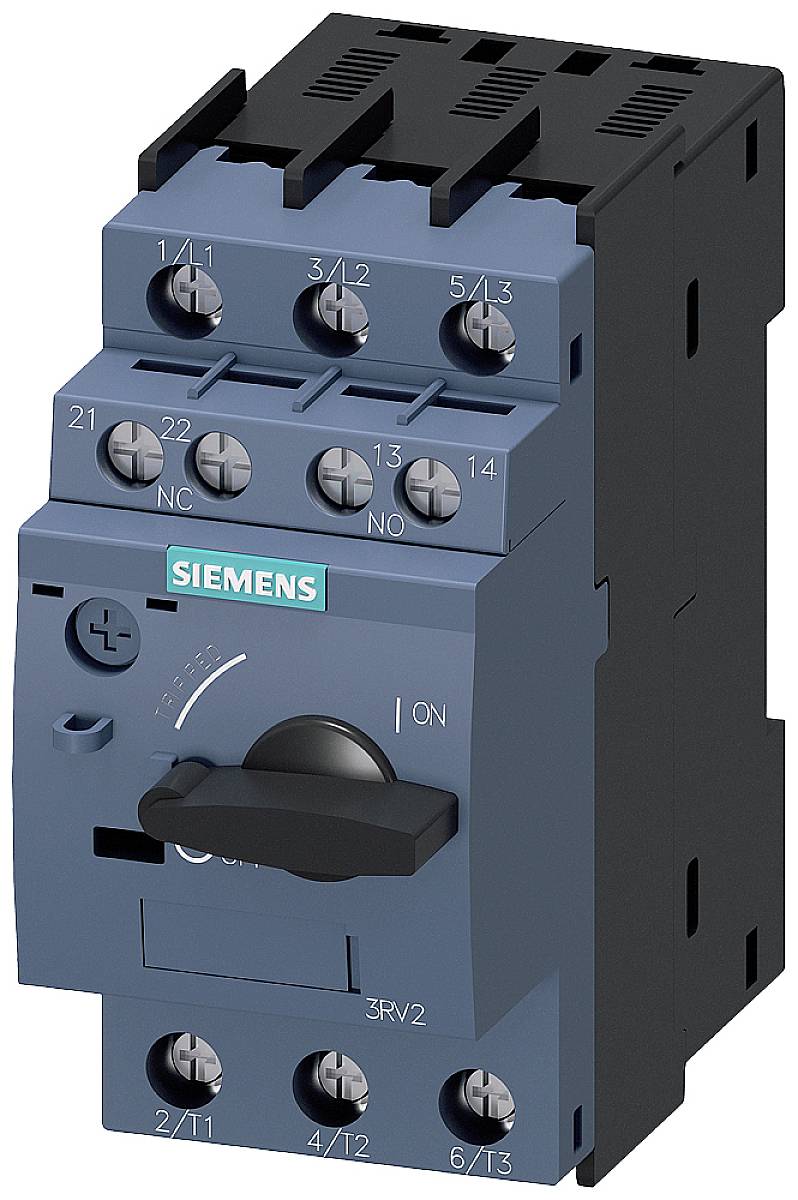

Circuit breaker size S00 for motor protection, CLASS 10 A-release 10...16 A N-release 208 A screw terminal Standard switching capacity Circuit breaker SIRIUS 3RV2 For motor protection for the reliable shutdown in the event of a short-circuit and for protecting the loads and system against overload, and for safe isolation of the system from the network.
Thanks to their low heat loss, the compact and climate-resistant circuit breakers are optimized for use in load feeders, and also for IE3/IE4 motors, of course, and equally for the switching of direct current. Worldwide approvals (e.g. IEC and UL/CSA) and applications in hazardous areas (ATEX or IEC Ex) are a matter of course.
Device versions are available for motor protection (also with overload relay function), plant protection, short-circuit protection of starter combinations, transformer protection, as main and EMERGENCY OFF switches and for use in IT networks. They are available with screw or spring-type terminals for fast, maintenance-free and vibration-proof connection, and optionally with integral auxiliary switch.
The comprehensive range of accessories, such as auxiliary switches, auxiliary releases, signaling switches etc. is standardized for all sizes. The use of different energy infeed options, such as the associated SIRIUS 3RV29 infeed system, considerably reduces the main circuit wiring.
The 3RV2 circuit breakers replace the well-proven 3RV1 series.
Simple, efficient and always up to date - SIRIUS modular system.
Dobava vključuje
Močnostno stikalo 1 kos Siemens 3RV2011-4AA10 3 zapiralni, nastavitev (tok): 10 - 16 A preklopna napetost (maks.): 690 V/AC (Š x V x G) 45 x 97 x 96 mm
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3RV20114AA10
EAN koda: 4011209716285
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta izdelka |
močnostno stikalo |
|---|---|
| Vrsta |
3RV2011-4AA10 |
| Velikost |
S00 |
| Nastavitveno območje toka (min.) |
10 A |
| Nastavitveno območje toka (maks.) |
16 A |
| Nastavitveno območje (tok) |
10 - 16 A |
| Število polov |
3-polni |
| Preklopna napetost (maks.) |
690 V/AC |
| Namestitev |
din-letev |
| Min. temperatura |
-20 °C |
| Maks. temperatura |
+60 °C |
| Priključek |
vijačni |
| Vrsta zaščite |
IP20 |
| Globina |
97 mm |
| Širina |
45 mm |
| Višina |
97 mm |
| Mere |
(Š x V x G) 45 x 97 x 97 mm |
| Vsebina |
1 kos |
| Skladnost z RoHS |
Ja |
| Teža |
0.36 |
| Width |
45 |
| Height |
97 mm |
| Depth |
97 mm |
| Rated operation power at AC-3, 400 V |
7.5 kW |
| With integrated auxiliary switch |
FALSE |
| Rated permanent current Iu |
16 A |
| With integrated under voltage release |
FALSE |
| Number of poles |
3 |
| Rated operating voltage |
690-690 V |
| Overload release current setting |
10-16 A |
| Degree of protection (IP) |
IP20 |
| With thermal overload protection |
TRUE |
| Type of electrical connection of main circuit |
Screw connection |
| Type of control element |
Turn button |
| Switch off technique |
Magnetic |
| Rated operation power at AC-3, 230 V |
4 kW |
| Rated short-circuit breaking capacity Icu at 400 V, AC |
55 kA |
| Phase failure sensitive |
TRUE |
| Device construction |
Built-in device fixed built-in technique |
| UKCA |
da |
