Opis

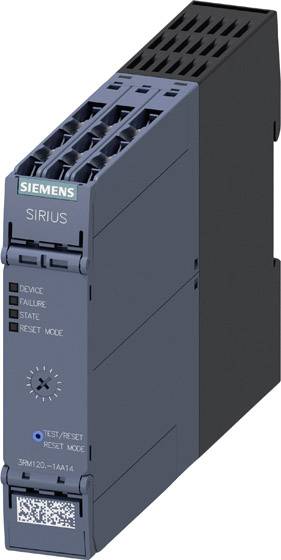

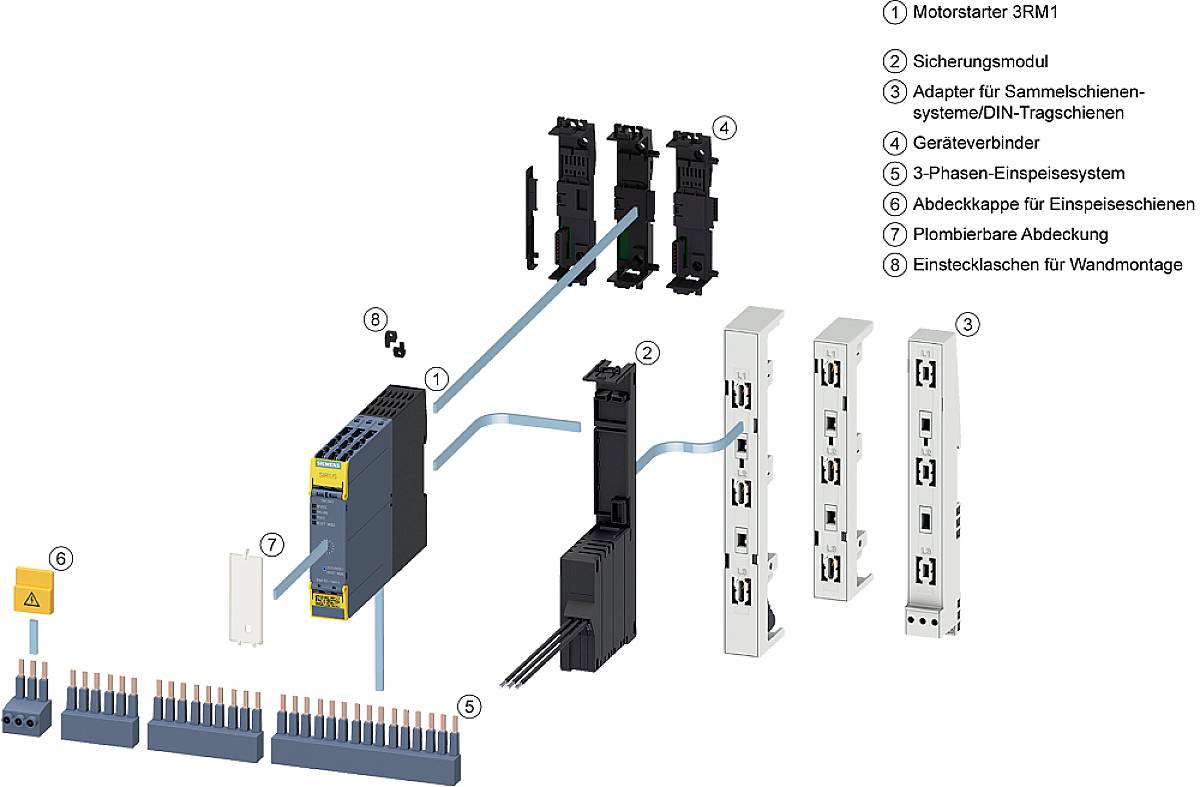

SIRIUS 3RM1 motorni zaganjalnik za operativno preklop trofaznih motorjev. Zunanja širina, večfunkcionalna, z elektronsko zaščito pred preobremenitvijo, dolgotrajna in energetsko učinkovita hibridna stikalna tehnika, nizka odstopanja naprave zaradi širokega nastavitvenega območja, enostavna namestitev zaradi manjšega ožičenja, hitro diagnosticiranje napak prek zaslona LED, inovativni koncept ohišja, npr. Z označenimi pokrovnimi pokrovi in odstranljivimi sponkami. Na voljo kot neposredni ali obratni zaganjalnik po izbiri s certifikatom ATEX in varnostnim izklopom, z različnimi tipi motorjev, tipi napajalne napetosti in priključnimi tehnikami. Obsežen dodatni pribor, kot so priključki naprave, modul varovalk, sistem dovajanja ali zaporni pokrovi, dopolnjujejo sistem. Zagon v zaprtem prostoru - zaganjalnik SIRIUS 3RM1
Besedilo je strojno prevedeno.
Varnost izdelkov (GPSR)
Proizvajalčeva koda: 3RM12021AA04
EAN koda: 4011209914728
Registrirana blagovna znamka: Siemens
Ime proizvajalca: Siemens AG
Naslov proizvajalca: Siemenspromenade 2
Poštna številka proizvajalca: 91058
Kraj proizvajalca: Erlangen
Država proizvajalca: Germany
Telefon proizvajalca: +498938035491
Elektronski kontakt proizvajalca: https://www.siemens.com/
Kontakt odgovorne osebe za varnost: [email protected]
Država odgovorne osebe za varnost: Nemčija
Dokumenti
Tehnični podatki
| Vrsta izdelka |
obračalni zaganjalnik |
|---|---|
| Moč motorja pri 400 V |
0.75 kW |
| Nazivna napetost |
24 V/DC |
| Proizv. št. delov |
3RM12021AA04 |
| Nazivni tok |
2.0 A |
| Nazivni tok - zaokrožen |
2 A |
| Vrsta |
3RM1202-1AA04 |

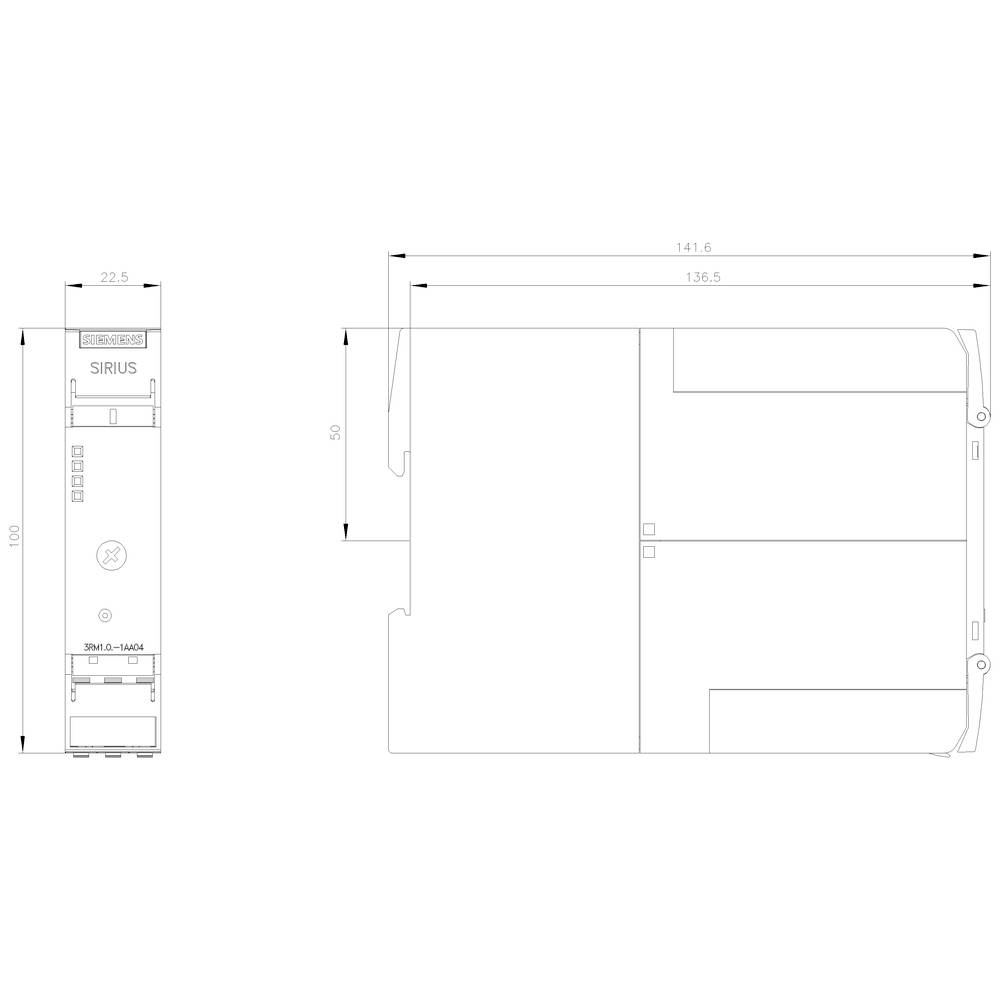

| Mere |
(Š x V x G) 22.5 x 100 x 141.6 mm |
| Širina |
22.5 mm |
| Višina |
100 mm |
| Globina |
141.6 mm |
| Maks. temperatura |
60 °C |
| Min. temperatura |
-25 °C |
| Width |
22.5 |
| Height |
100 mm |
| Depth |
141.6 mm |
| With transformer |
FALSE |
| Rated operation power at AC-3, 400 V |
0.75 kW |
| Number of command positions |
0 |
| Number of auxiliary contacts as normally open contact |
1 |
| Number of auxiliary contacts as normally closed contact |
1 |
| Suitable for emergency stop |
FALSE |
| Rated operation current Ie |
2 A |
| Number of indicator lights |
4 |
| Overload release current setting |
2-2 A |
| Supporting protocol for LON |
FALSE |
| Supporting protocol for TCP/IP |
FALSE |
| Supporting protocol for ASI |
FALSE |
| Supporting protocol for PROFIBUS |
FALSE |
| Supporting protocol for CAN |
FALSE |
| Supporting protocol for INTERBUS |
FALSE |
| Supporting protocol for Modbus |
FALSE |
| Supporting protocol for Data-Highway |
FALSE |
| Supporting protocol for DeviceNet |
FALSE |
| Supporting protocol for SUCONET |
FALSE |
| Supporting protocol for other bus systems |
FALSE |
| External reset possible |
TRUE |
| Suitable for rail mounting |
TRUE |
| Rated control supply voltage DC |
24-24 V |
| Degree of protection (IP) |
IP20 |
| Supporting protocol for SERCOS |
FALSE |
| Supporting protocol for INTERBUS-Safety |
FALSE |
| Release class |
CLASS 10 A |
| With short-circuit release |
FALSE |
| With fuse |
FALSE |
| Type of electrical connection of main circuit |
Screw connection |
| Type of electrical connection for auxiliary- and control current circuit |
Screw connection |
| Supporting protocol for AS-Interface Safety at Work |
FALSE |
| Supporting protocol for DeviceNet Safety |
FALSE |
| Supporting protocol for EtherNet/IP |
FALSE |
| Supporting protocol for Foundation Fieldbus |
FALSE |
| Supporting protocol for PROFINET CBA |
FALSE |
| Supporting protocol for PROFINET IO |
FALSE |
| Supporting protocol for PROFIsafe |
FALSE |
| Supporting protocol for SafetyBUS p |
FALSE |
| Voltage type for actuating |
DC |
| Type of motor starter |
Other |
| Rated operation power at AC-3, 230 V, 3-phase |
0.37 kW |
| Rated power, 460 V, 60 Hz, 3-phase |
0.551624062 kW |
| Rated operation current at AC-3, 400 V |
2 A |
| Ambient temperature, upper operating limit |
60 °C |
| UKCA |
da |
